Toyota COROLLA radiator grille — Figure 5301

Toyota COROLLA EPC diagram 5301, radiator grille, with 2 images and 9 PNC and OE references.

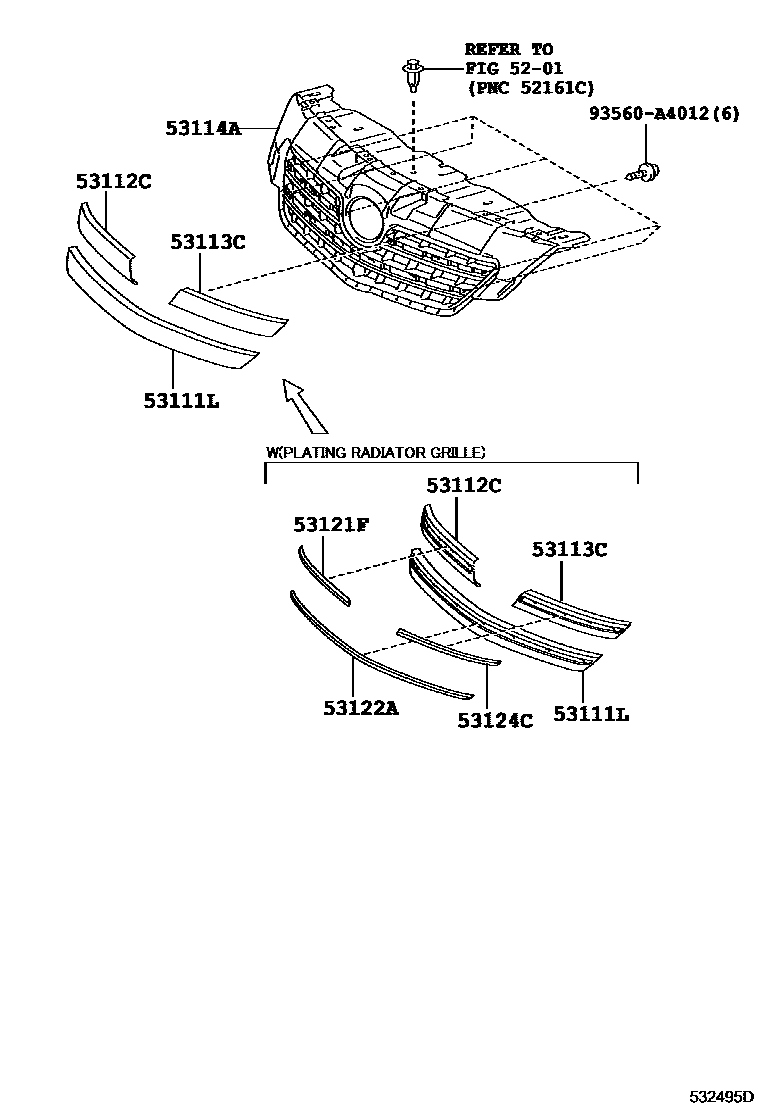

Toyota COROLLA radiator grille EPC diagram — 532495D
radiator grille — 532495D (200611 – 201004)

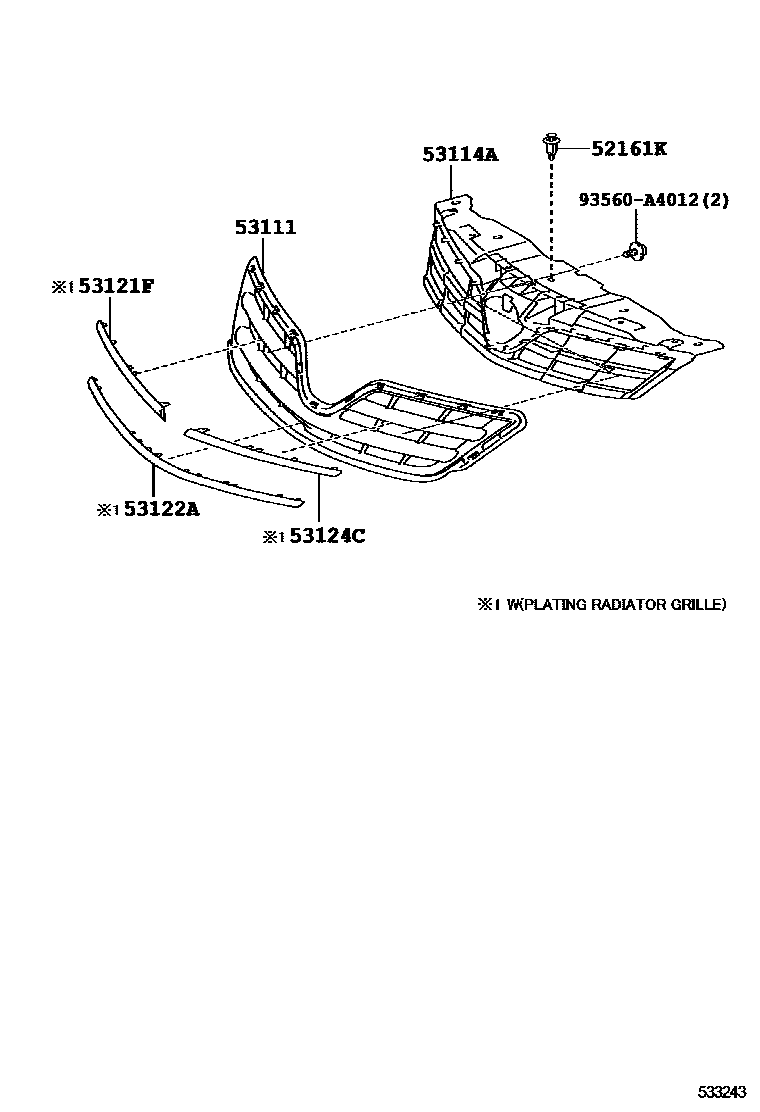

Toyota COROLLA radiator grille EPC diagram — 533243
radiator grille — 533243 (201004 – 999999)

PNC and OE references

PNCPart nameOE numbers
52161Kfront bumper insert52161-16010
53111radiator grille53111-12C40
53111LCentral radiator grille sub-assembly53111-12B40 · 53111-12B50
53112CLower right radiator grille53112-12150 · 53112-12160
53113CLower left radiator grille53113-12110 · 53113-12120
53114Ainner radiator grille53114-12100 · 53114-12140
53121FRadiator grille upper right protective strip53121-12180 · 53121-12190 · 53121-12200 · 53121-12210
53122ARadiator grille lower protective strip53122-12160 · 53122-12170 · 53122-12180 · 53122-12190
53124CRadiator grille upper left protective strip53124-12030 · 53124-12040 · 53124-12050 · 53124-12060
