Toyota COROLLA 前保险杠及附件 — Figure 5201

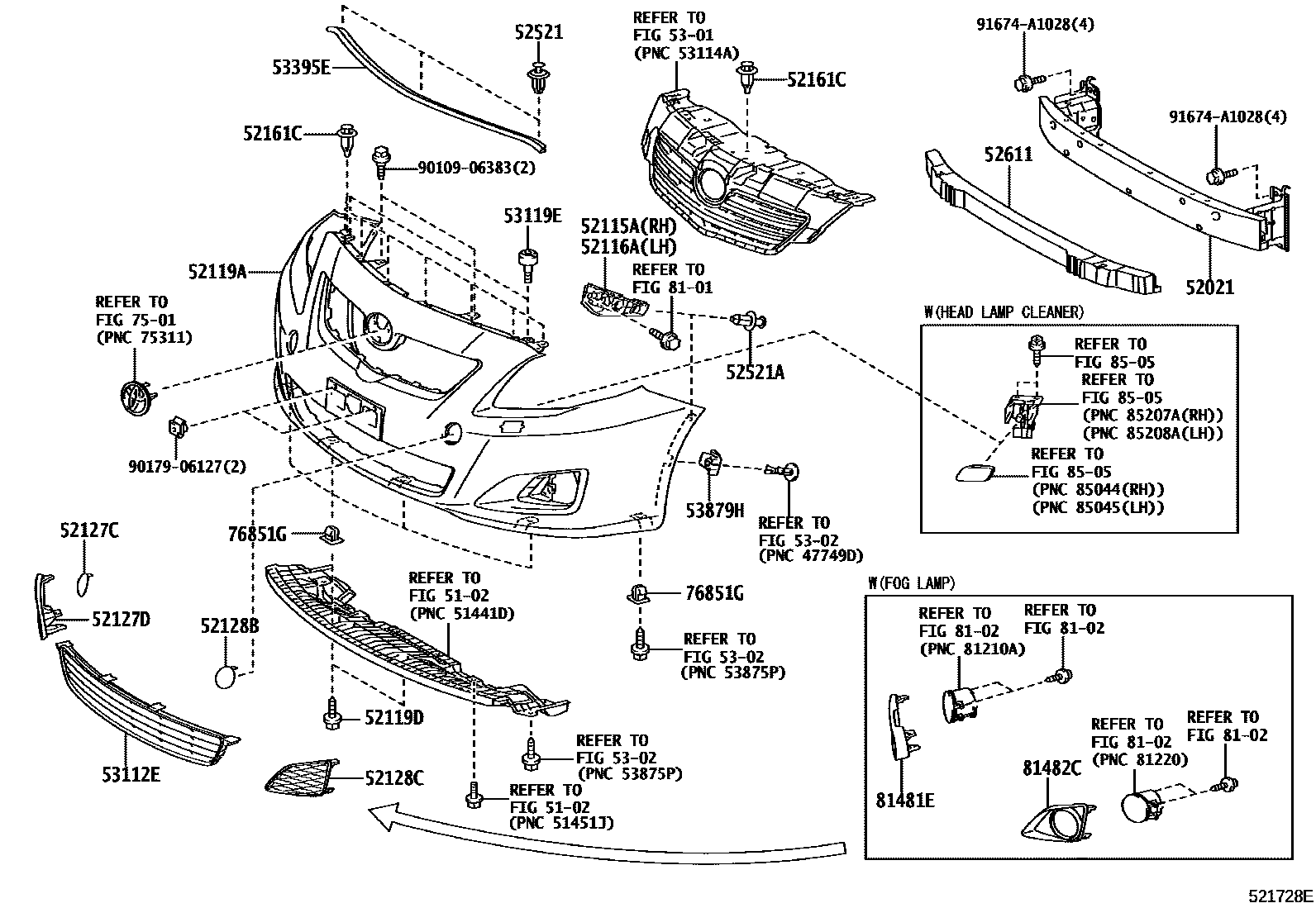

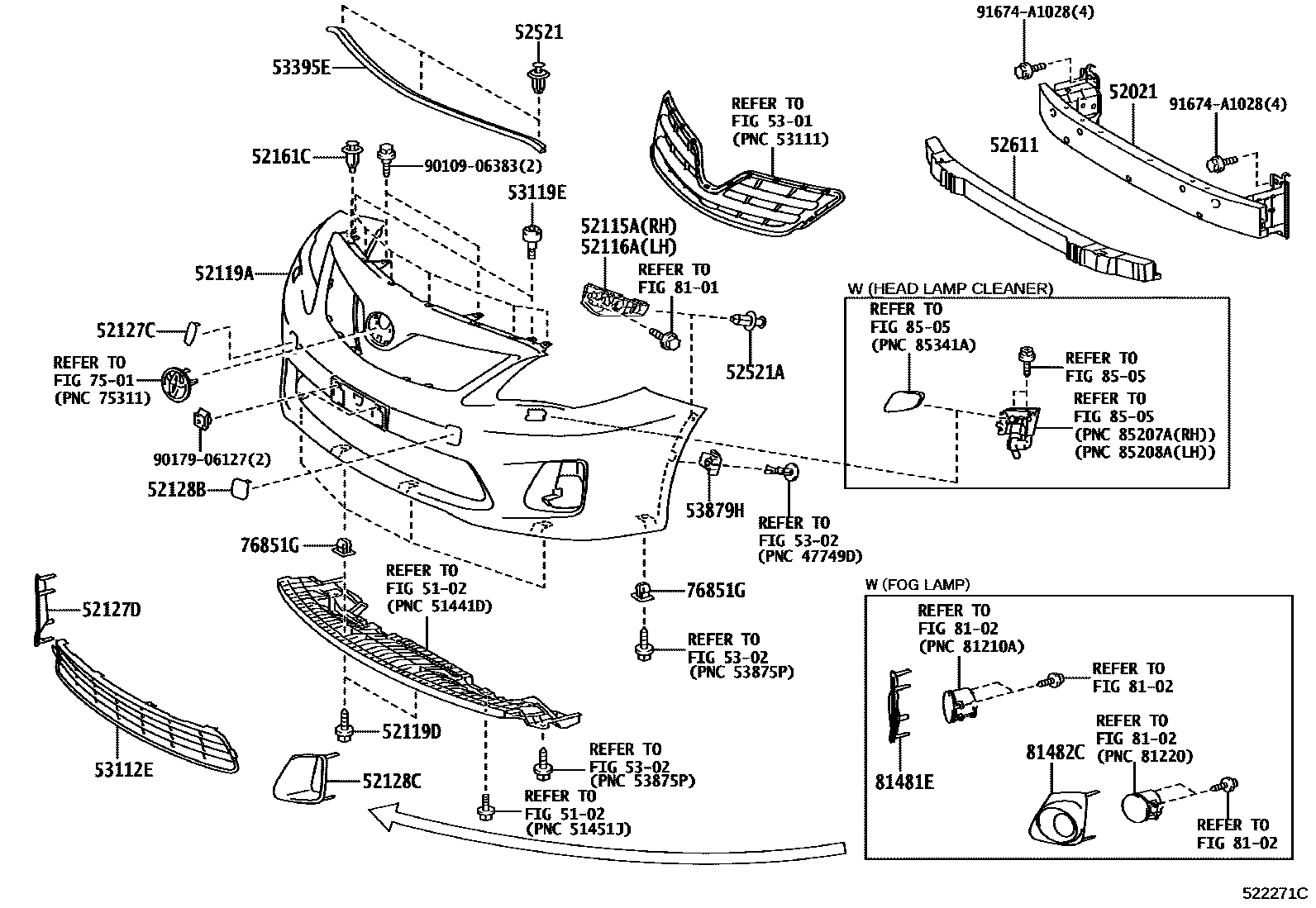

Toyota COROLLA EPC diagram 5201, 前保险杠及附件, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52021 | Front bumper reinforcement sub-assembly | 52021-12240 |
| 52115A | Front bumper right side bracket | 52115-12430 · 52115-12460 |
| 52116A | Front bumper left bracket | 52116-12390 · 52116-12420 |
| 52119A | front bumper cover | 52119-12941 · 52119-12942 · 52119-12948 · 52119-12950 · 52119-12961 · 52119-12962 |
| 52119D | VIS, NO.1 | 90159-60488 |
| 52127C | Front bumper hole cover | 52127-12909 |
| 52127D | Front bumper right hole cover | 81481-12080 · 81481-12170 |
| 52128B | Front bumper left hole cover | 52128-12911 |
| 52128C | Front bumper left hole cover | 81482-12060 · 81482-12120 |
| 52161C | front bumper insert | 52161-16010 |
| 52521A | Clip (for front bumper mount) | 90467-05170 |
| 52611 | front bumper energy absorber | 52611-12190 · 52611-12270 |
| 53112E | No. 1 radiator lower grille | 53112-12130 · 53112-12131 · 53112-12230 |
| 53119E | Radiator grille protector | 53119-42020 |
| 53395E | Engine cover to front end plate seal | 53395-12050 |
| 53879H | Front fender lining fixing parts | 53879-50020 · 53879-58010 |
| 76851G | RONDELLE, VIS, NO.1 | 90189-06193 · 90189-06237 |
| 81481E | Right fog light cover | 81481-12090 · 81481-12180 |
| 81482C | Left fog light cover | 81482-12070 · 81482-12130 |
