Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

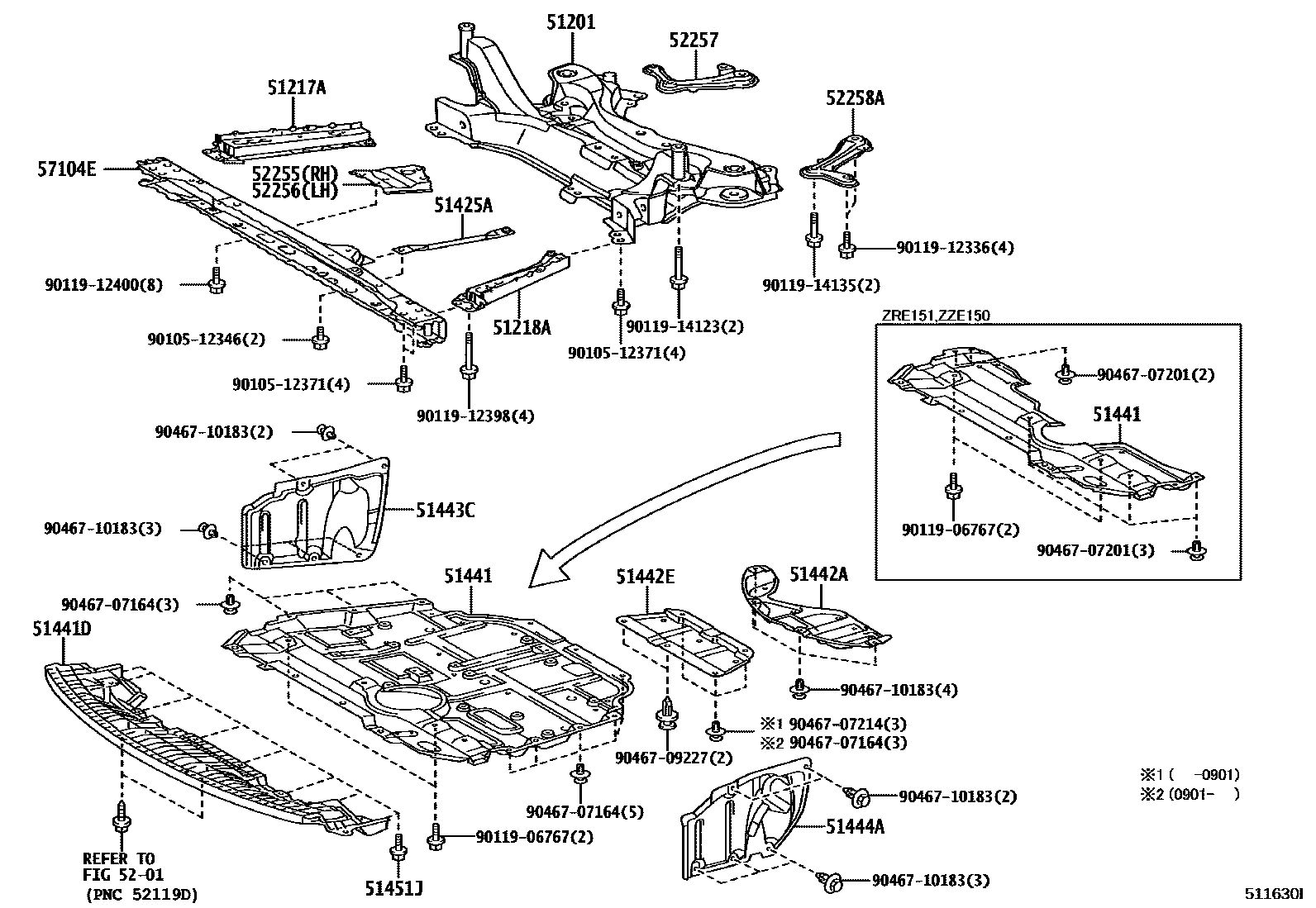

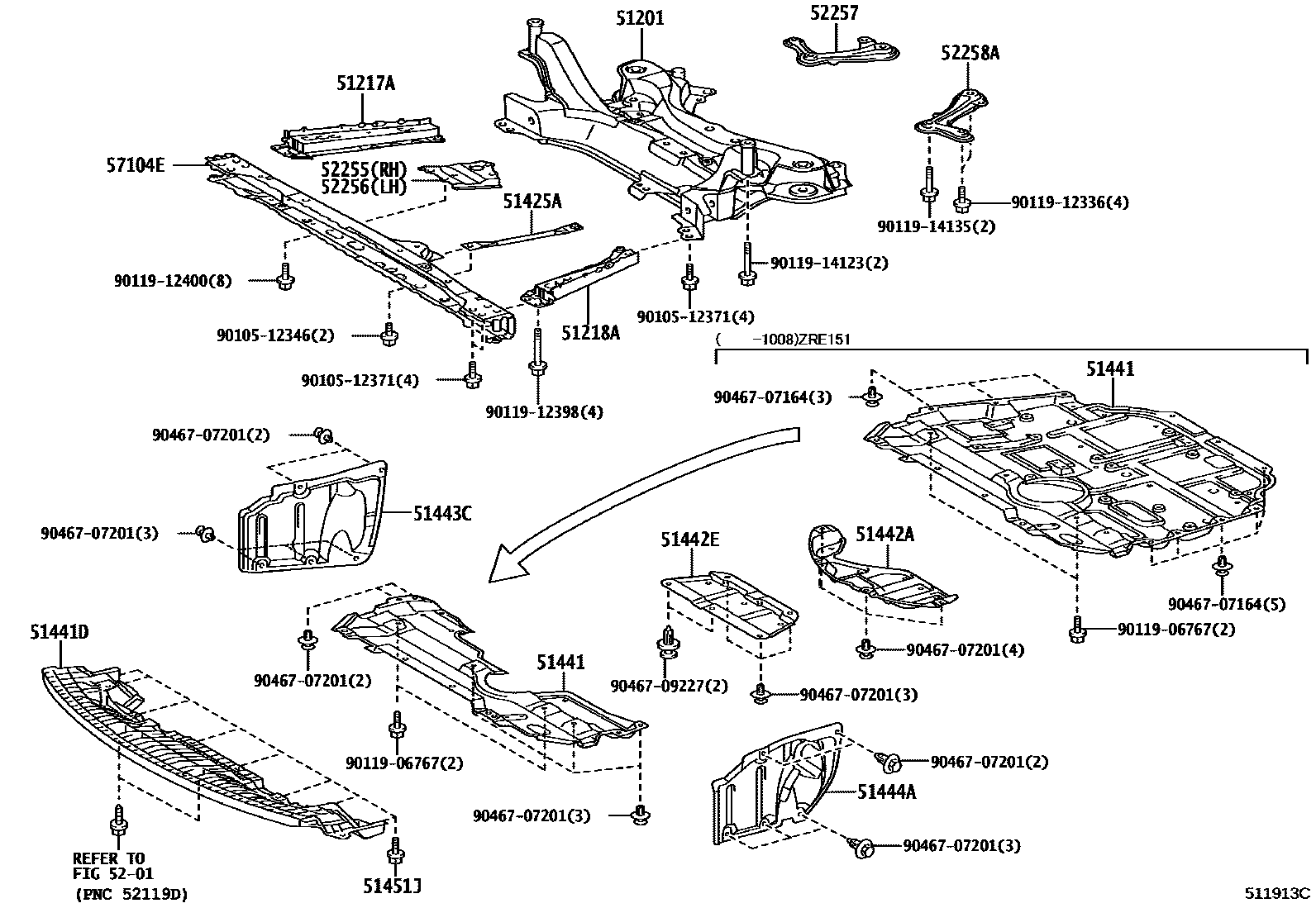

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 2 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-12441 · 51201-12442 |
| 51217A | Right front suspension cross member reinforcement | 51107-12010 |
| 51218A | Left front suspension cross member reinforcement | 51108-12010 |
| 51425A | Engine front mounting bracket lower reinforcement | 51425-12060 |
| 51441 | No. 1 engine bottom cover | 51410-12070 · 51410-12080 · 51410-12081 · 51410-12090 · 51410-12091 · 51441-12221 · 51441-12270 |
| 51441D | engine cover | 52618-12020 |
| 51442A | No. 3 engine front bottom cover | 51442-12210 |
| 51442E | No. 2 engine bottom cover | 51442-12270 |
| 51443C | Engine right rear bottom cover | 51443-12080 |
| 51444A | Engine left rear bottom cover | 51444-12050 |
| 51451J | BOULON, NO.1 | 90119-06767 |
| 52255 | Right front suspension cross member front bracket | 52255-12010 |
| 52256 | Left front suspension cross member front bracket | 52256-12010 |
| 52257 | Right front suspension cross member rear bracket | 52257-12010 · 52257-12011 · 52257-21040 |
| 52258A | Left front suspension cross member rear bracket | 52258-12010 · 52258-12011 · 52258-21040 |
| 57104E | Front cross member sub-assembly | 57104-12270 |
