Toyota COROLLA Front Spring & Shock Absorber — Figure 4803

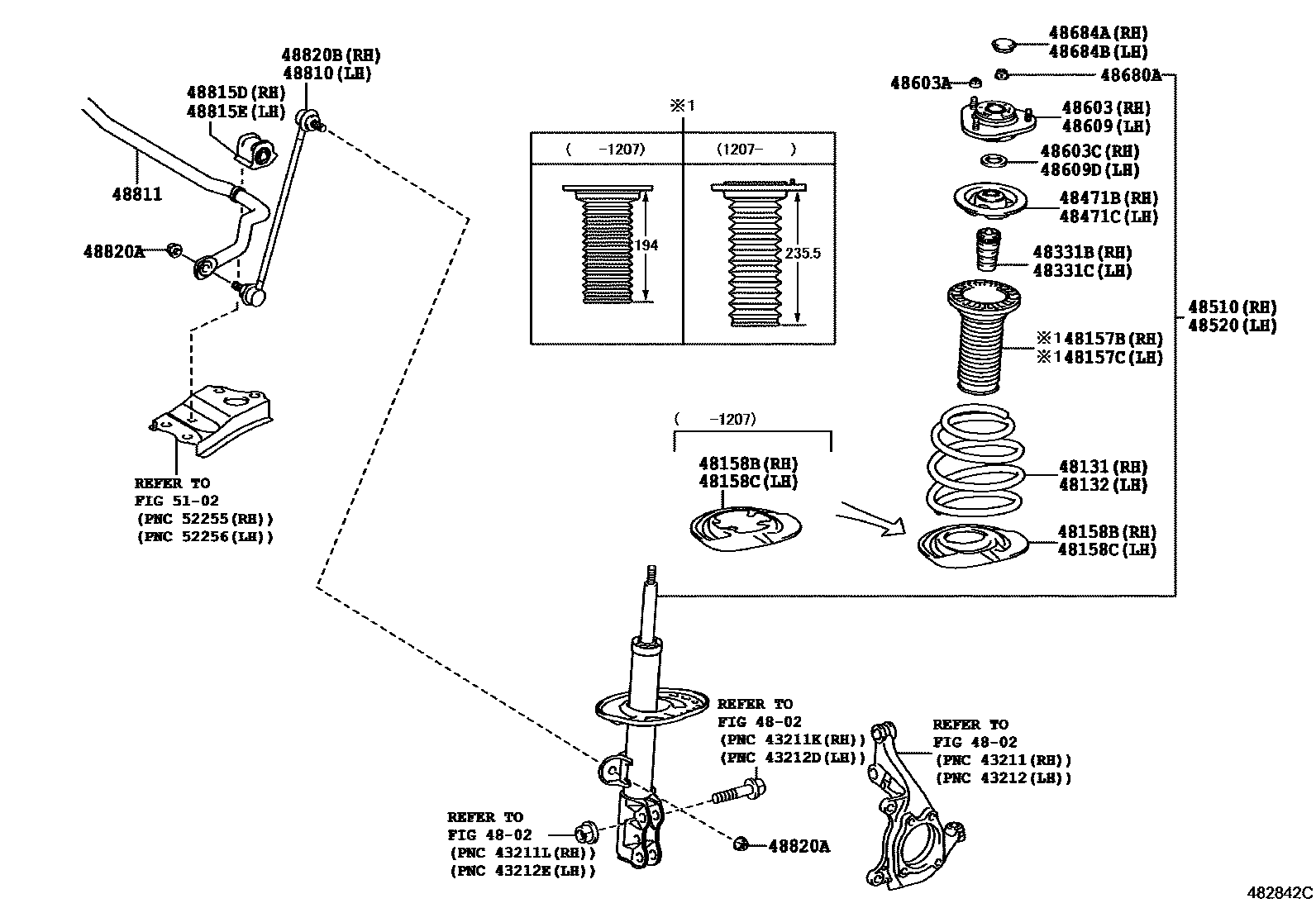

Toyota COROLLA EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-12A20 · 48131-12A40 · 48131-12A50 · 48131-12A70 · 48131-12B50 · 48131-12B60 |
| 48132 | Left front coil spring | 48131-12A20 · 48131-12A40 · 48131-12A50 · 48131-12A70 · 48131-12B50 · 48131-12B60 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-42030 · 48157-76010 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-42030 · 48157-76010 |
| 48158B | Front coil spring lower right vibration isolation pad | 48158-12040 · 48158-76010 |
| 48158C | Front coil spring lower left vibration isolation pad | 48158-12040 · 48158-76010 |
| 48331B | Right front spring buffer block | 48331-12220 |
| 48331C | Left front spring buffer block | 48331-12220 |
| 48471B | Front coil spring upper right seat | 48044-42010 |
| 48471C | Front coil spring upper left seat | 48044-42010 |
| 48510 | Right front shock absorber assembly | 48510-80332 · 48510-80333 · 48510-80334 · 48510-80336 · 48510-80350 · 48510-80457 · 48510-80458 · 48510-80459 · 48510-80460 · 48510-80461 |
| 48520 | Left front shock absorber assembly | 48520-80106 · 48520-80107 · 48520-80108 · 48520-80110 · 48520-80119 · 48520-80200 · 48520-80201 · 48520-80202 · 48520-80203 · 48520-80204 |
| 48603 | Right front suspension bearing sub-assembly | 48609-12500 · 48609-12510 · 48609-12550 · 48609-12560 · 48609-12570 |
| 48603A | Nut (for front suspension mount) | 90178-10030 |
| 48603C | Dust seal (for right front suspension mount) | 90303-22002 |
| 48609 | Left front suspension bearing sub-assembly | 48609-12500 · 48609-12510 · 48609-12550 · 48609-12560 · 48609-12570 |
| 48609D | Dust seal (for left front suspension mount) | 90303-22002 |
| 48680A | Nut (for front mount to front shock absorber) | 90179-14015 |
| 48684A | Right front suspension support dust cover | 48684-52010 · 48684-74010 |
| 48684B | Left front suspension support dust cover | 48684-52010 · 48684-74010 |
| 48810 | Left front stabilizer bar link assembly | 48820-42030 |
| 48811 | front stabilizer bar | 48811-12A10 |
| 48815D | Right front stabilizer bar bushing | 48815-12390 · 48815-12400 |
| 48815E | Left front stabilizer bar bushing | 48815-12370 · 48815-12410 |
| 48820A | Nut (for front stabilizer bar link) | 90179-12151 |
| 48820B | Right front stabilizer bar link assembly | 48820-42030 |
