Toyota COROLLA 制动配管和卡箍 — Figure 4708

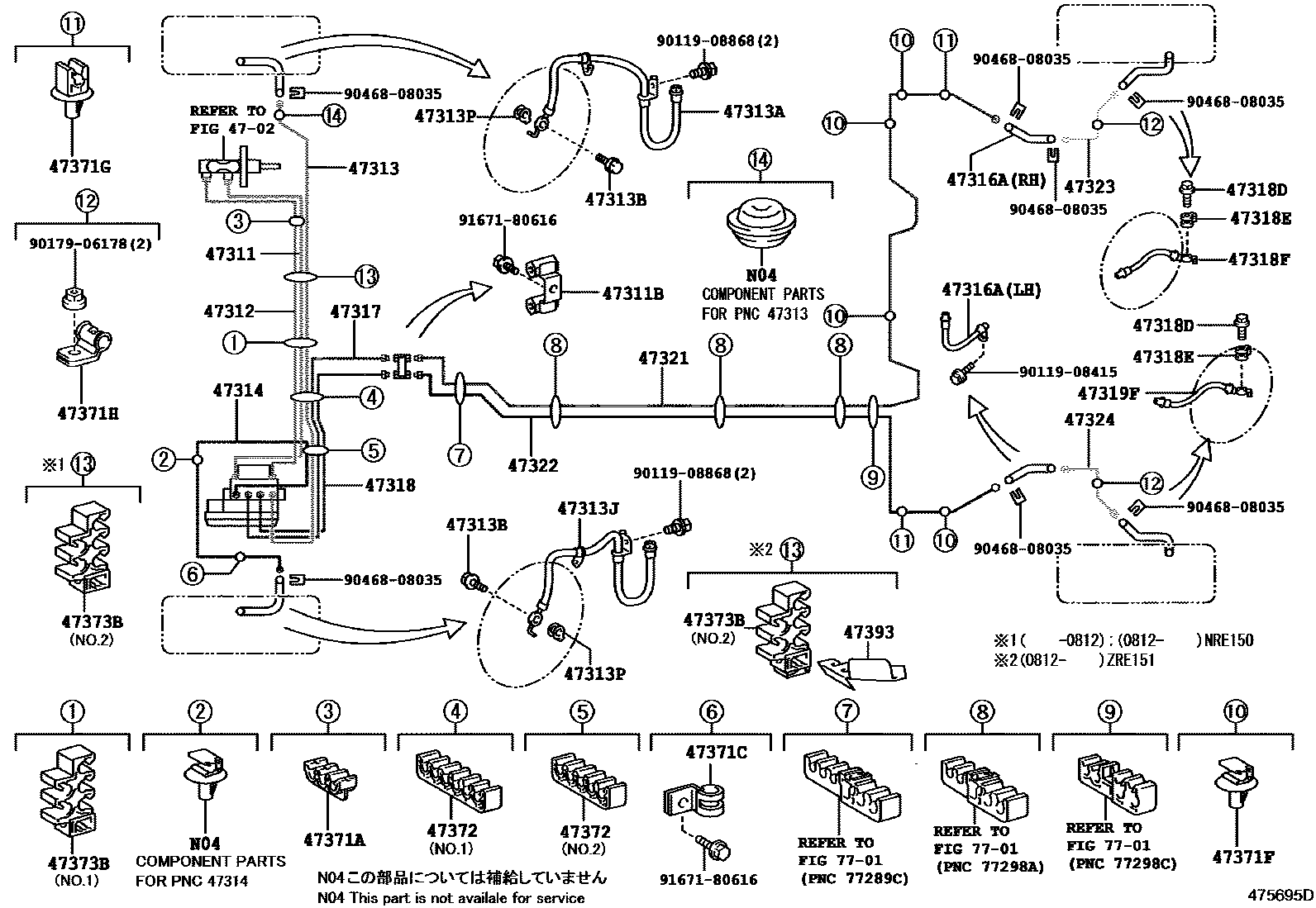

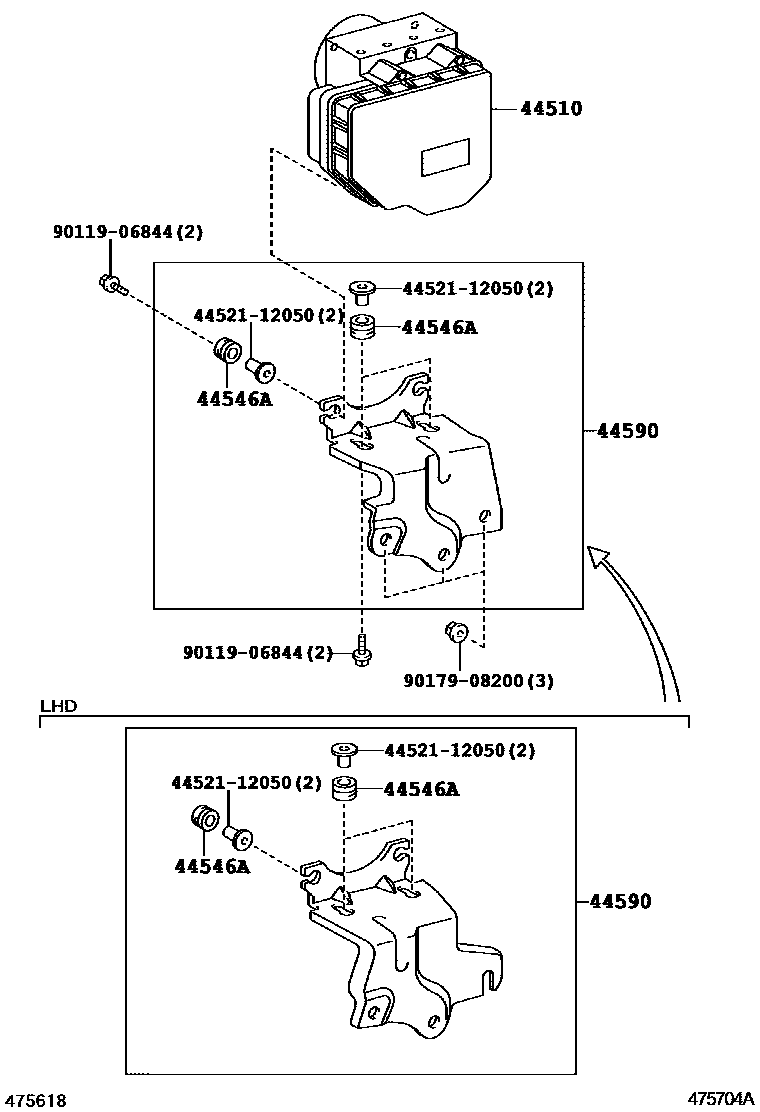

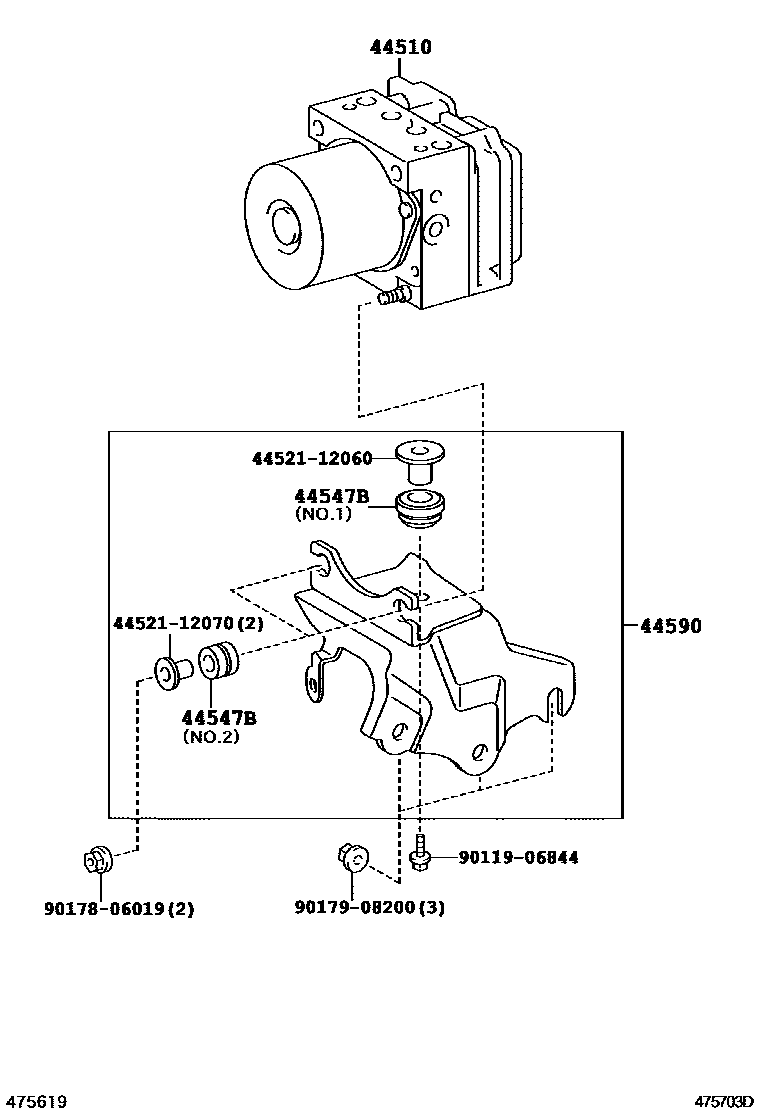

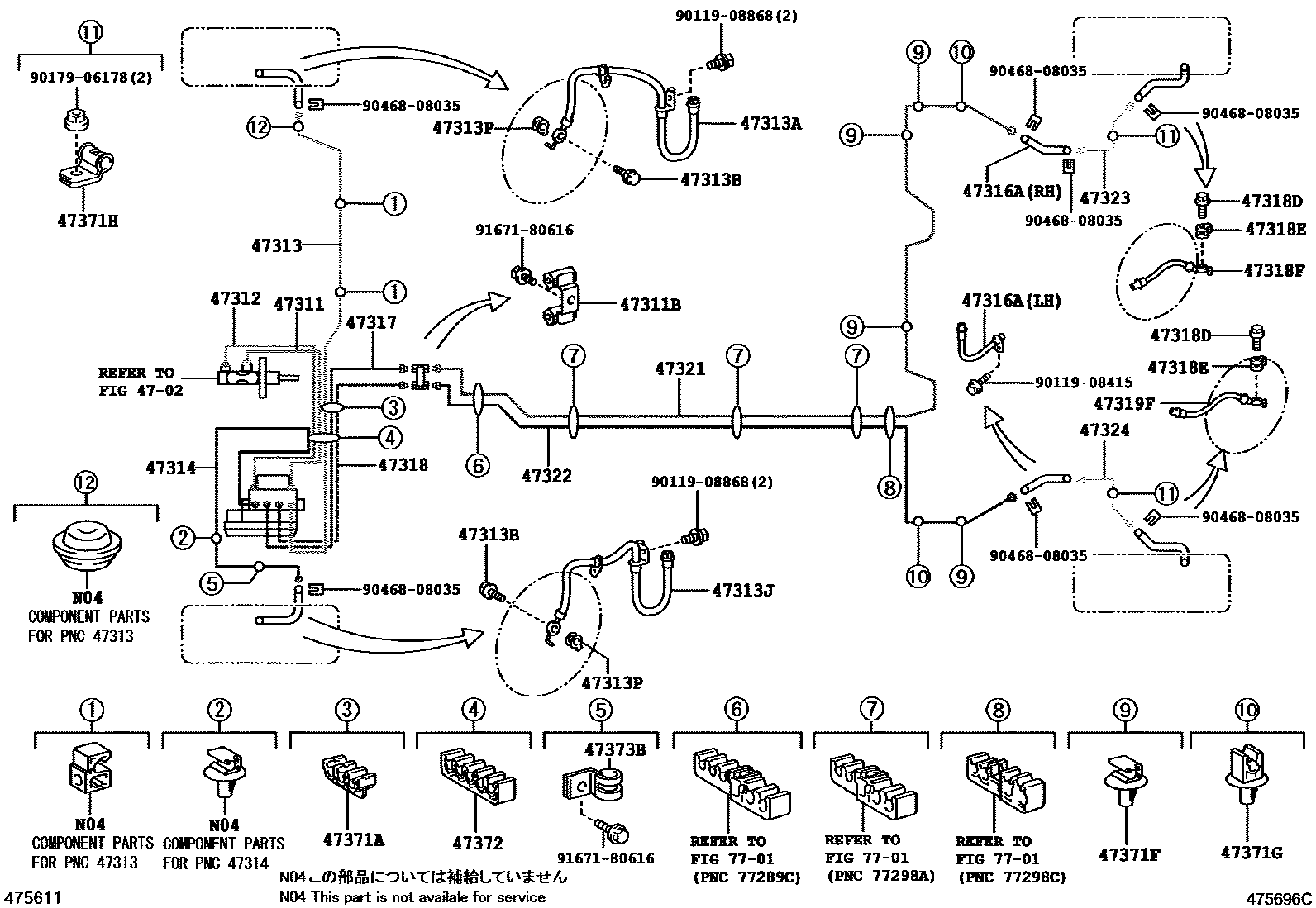

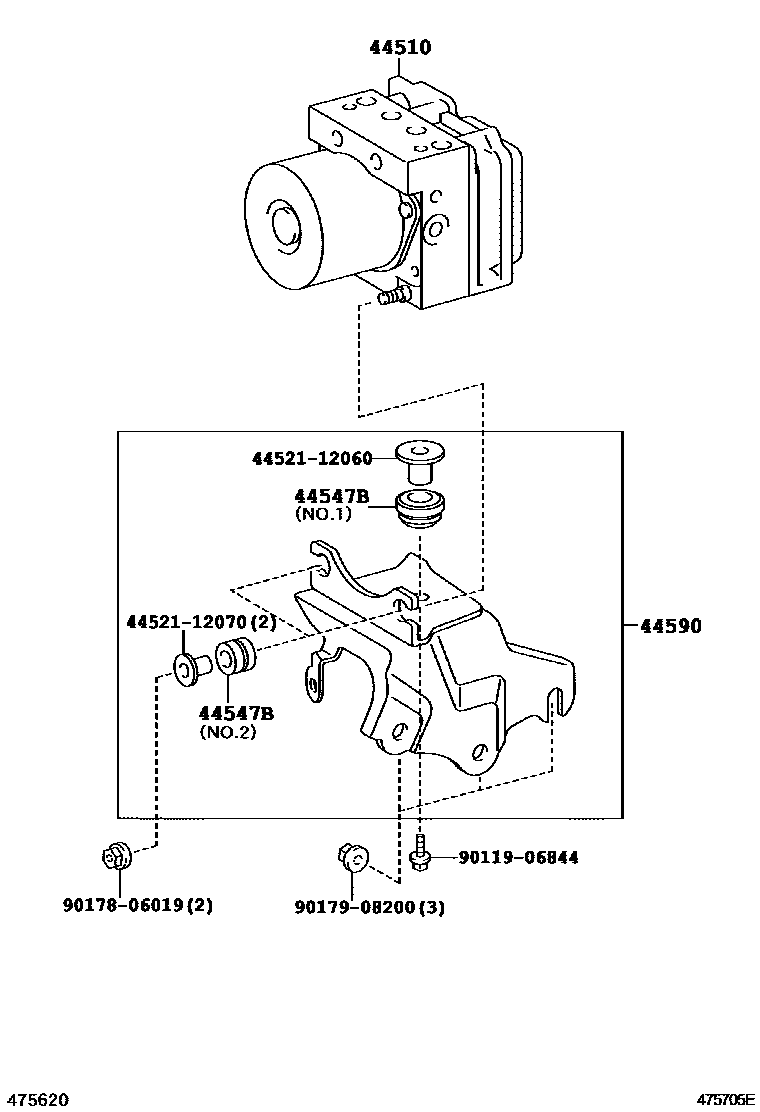

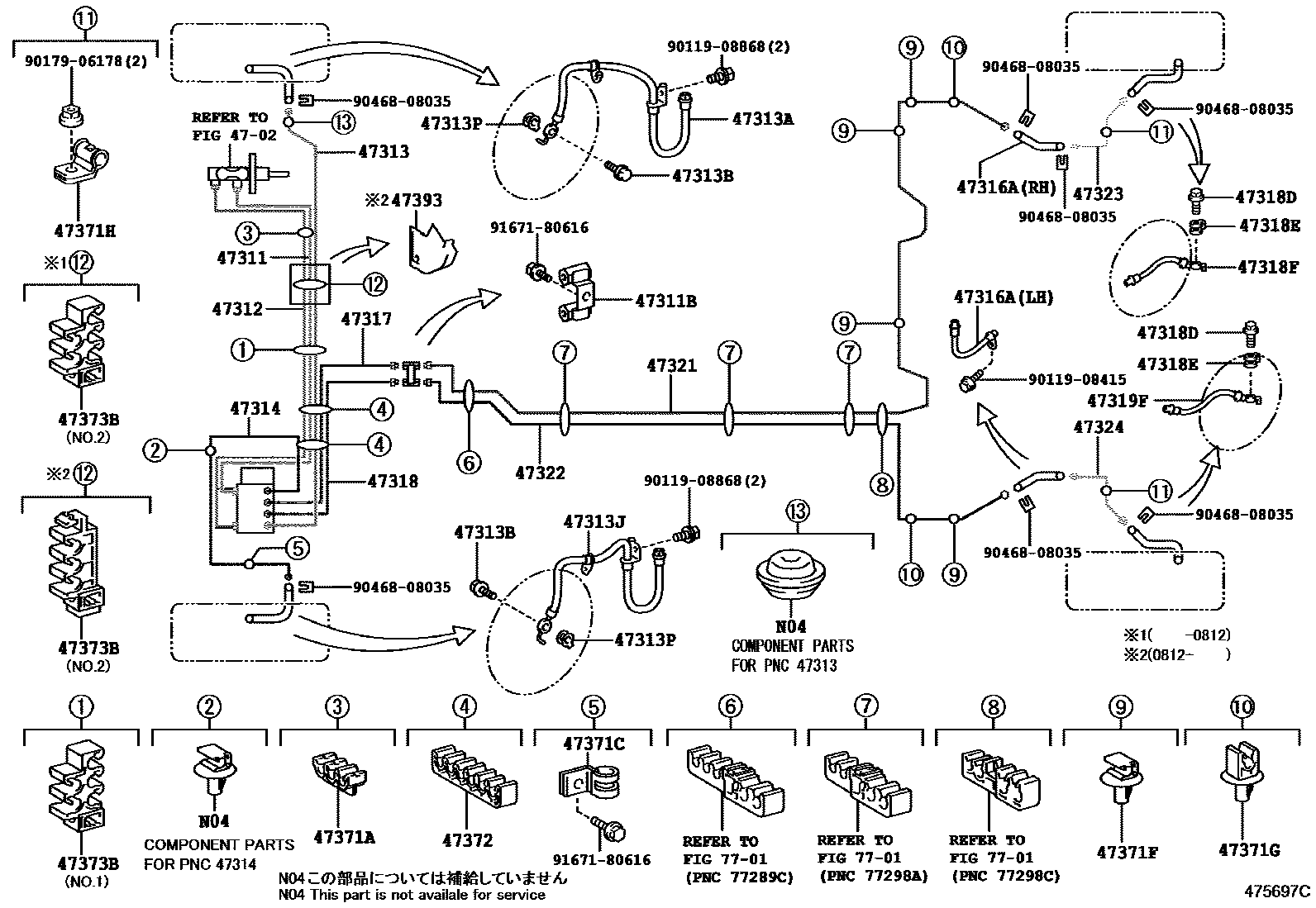

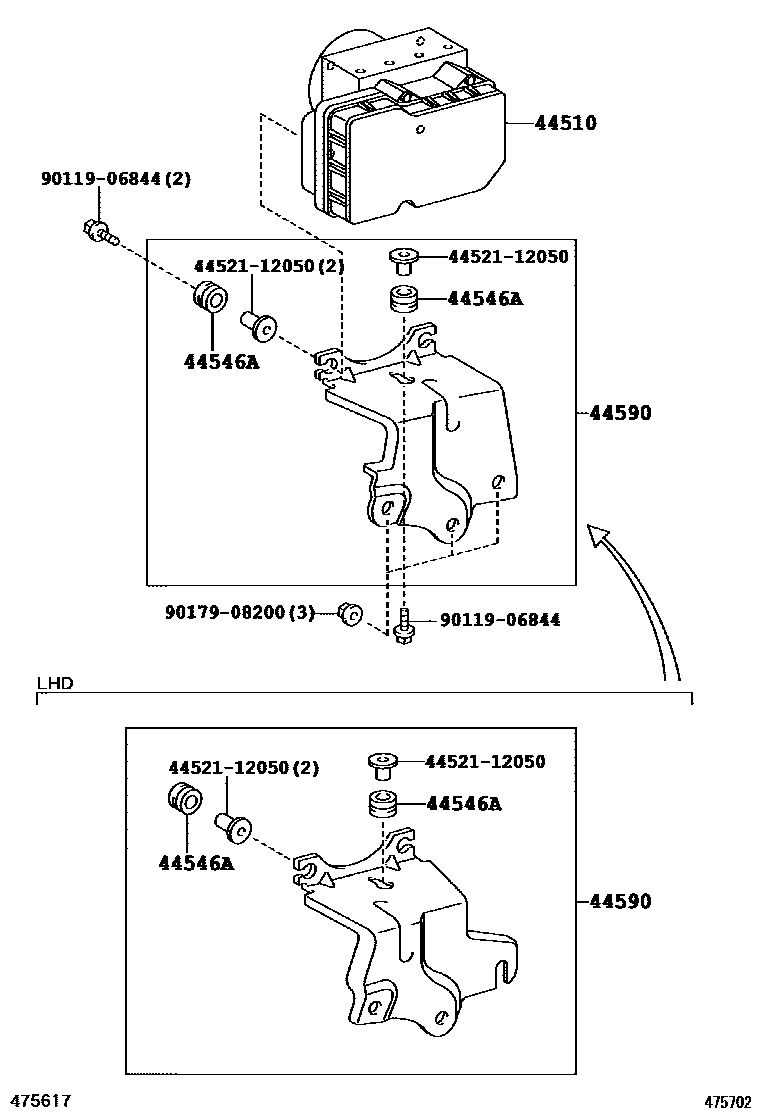

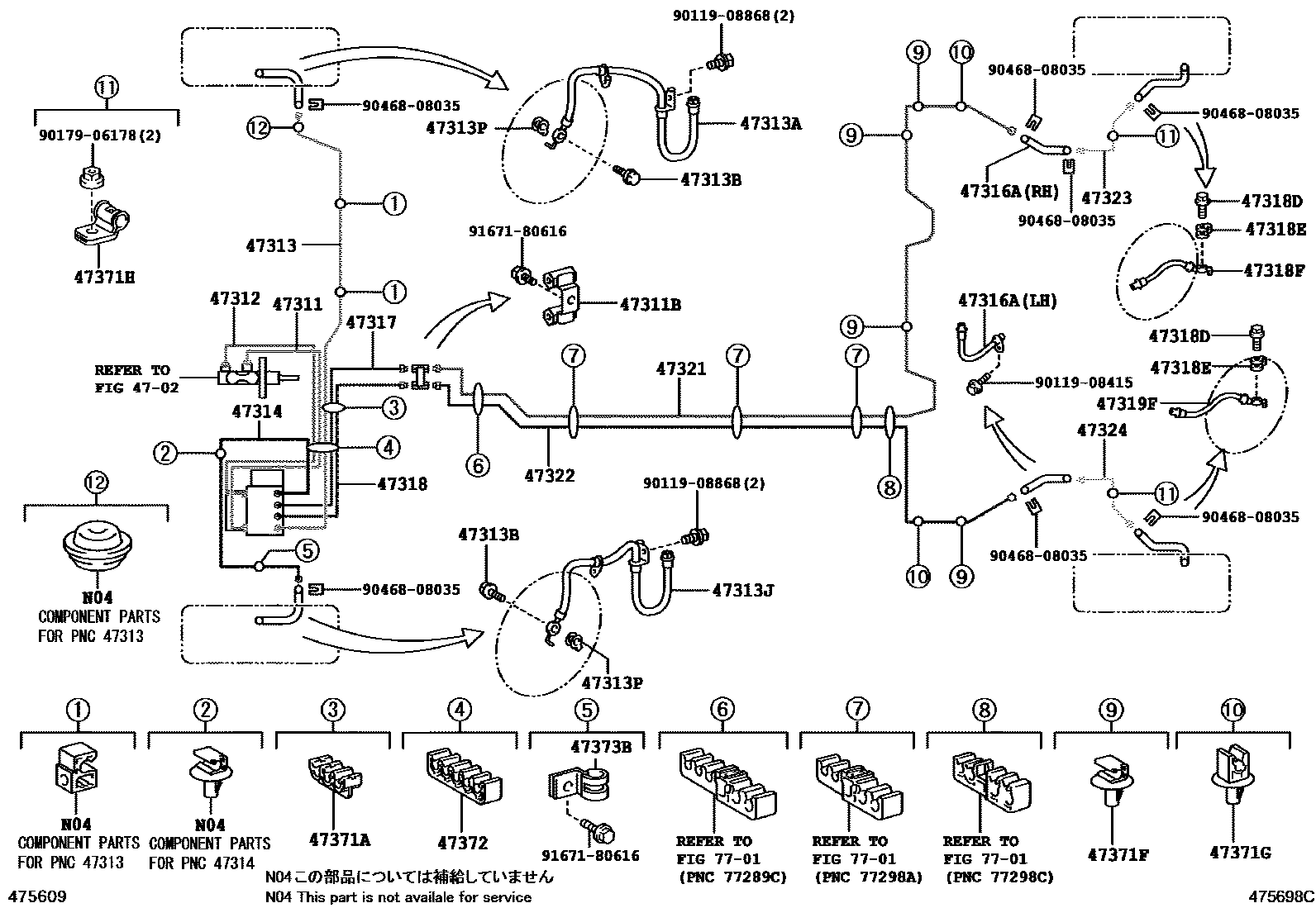

Toyota COROLLA EPC diagram 4708, 制动配管和卡箍, with 8 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44510 | brake actuator assembly | 44050-12210 · 44050-12211 · 44050-12300 · 44050-12301 · 44050-12640 · 44050-12650 · 44050-12690 · 44050-12710 · 44050-12720 · 44050-12760 · 44050-12850 · 44050-12890 |
| 44546A | Brake actuator bolt cushion | 44546-12110 |
| 44547B | brake actuator bracket cushion | 44547-12010 · 44547-12030 |
| 44590 | Brake actuator bracket assembly | 44590-12080 · 44590-12090 · 44590-12100 · 44590-12110 · 44590-12120 · 44590-12130 |
| 47311 | No. 1 front brake pipe | 47311-12A00 · 47311-12A10 · 47311-12A30 · 47311-12A40 · 47311-12B40 · 47311-1A010 · 47311-1A020 · 47311-1A030 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10260 · 90412-10285 |
| 47312 | No. 2 front brake pipe | 47312-12490 · 47312-12510 · 47312-12520 · 47312-12530 · 47312-12540 · 47312-12560 · 47312-12570 · 47312-12670 |
| 47313 | No. 3 front brake pipe | 47313-12660 · 47313-12680 · 47313-12690 · 47313-12700 · 47313-12710 · 47313-12730 · 47313-12740 · 47313-12840 |
| 47313A | No. 1 front flexible hose | 90947-02E33 · 90947-02G30 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313J | No. 2 front flexible hose | 90947-02E34 · 90947-02G31 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-12540 · 47314-12560 · 47314-12570 · 47314-12580 · 47314-12590 · 47314-12610 · 47314-12620 |
| 47316A | Flexible hose (for rear brake pipe) | 90947-02E31 · 90947-02E32 · 90947-02F85 · 90947-02F86 |
| 47317 | No. 7 front brake pipe | 47317-12300 · 47317-12320 · 47317-12330 · 47317-12340 · 47317-12350 · 47317-12370 · 47317-12380 · 47317-12460 · 47317-12470 |
| 47318 | No. 8 front brake pipe | 47318-12440 · 47318-12460 · 47318-12470 · 47318-12480 · 47318-12490 · 47318-12510 · 47318-12520 · 47318-12600 · 47318-12610 |
| 47318D | Connector bolt (for rear flex hose) | 90401-10058 |
| 47318E | Gasket (for rear flex hose) | 47389-50020 |
| 47318F | Right rear flexible hose | 90947-02E30 · 90947-02F87 |
| 47319F | Left rear flexible hose | 90947-02E30 · 90947-02F87 |
| 47321 | No. 1 rear brake pipe | 47321-12290 |
| 47322 | No. 2 rear brake pipe | 47322-12450 |
| 47323 | No. 3 rear brake pipe | 47323-12230 |
| 47324 | No. 4 rear brake pipe | 47324-12190 |
| 47371A | No. 1 brake pipe clamp | 90464-00868 |
| 47371C | No. 7 brake pipe clamp | 90461-10781 |
| 47371F | No. 10 brake pipe clamp | 90949-01D17 |
| 47371G | No. 11 brake pipe clamp | 90949-01D29 |
| 47371H | No. 12 brake pipe clamp | 90461-10837 · 90461-10843 |
| 47372 | No. 2 brake pipe clamp | 90464-00890 · 90464-00898 · 90464-00900 |
| 47373B | No. 3 brake pipe clamp | 90461-10781 · 90461-10843 · 90949-01D32 · 90949-01D45 · 90949-01D68 |
| 47393 | brake pipe heat shield | 47393-12020 · 47393-20030 |
