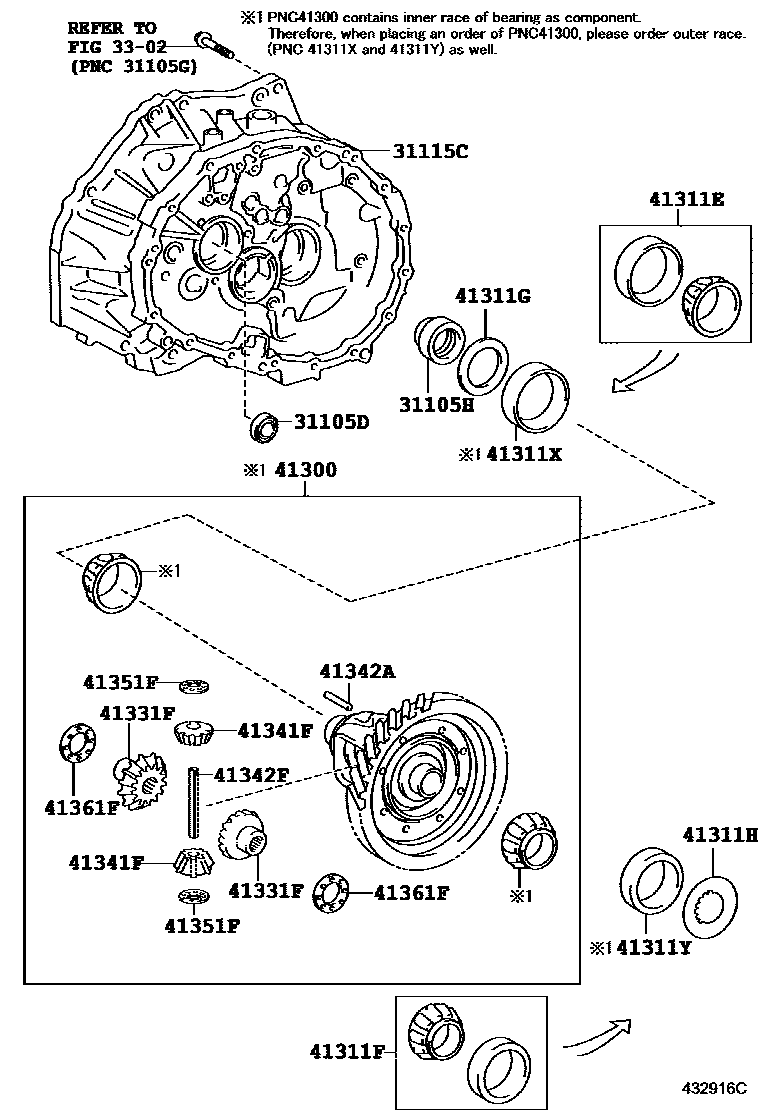

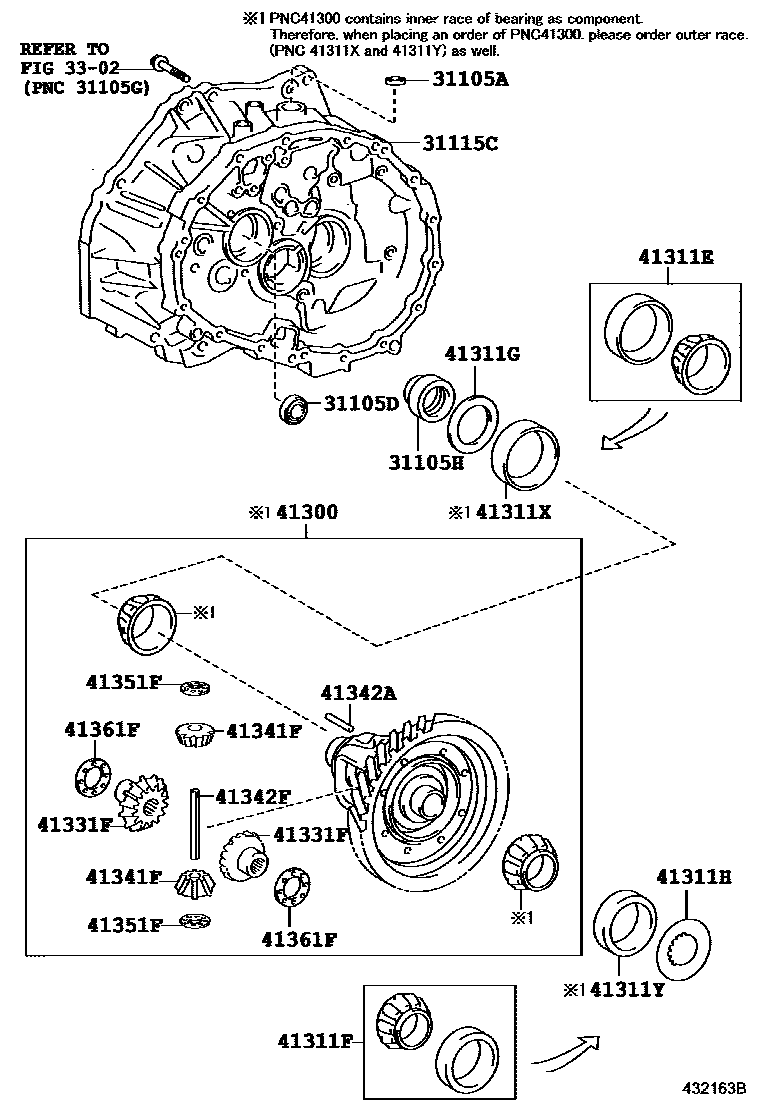

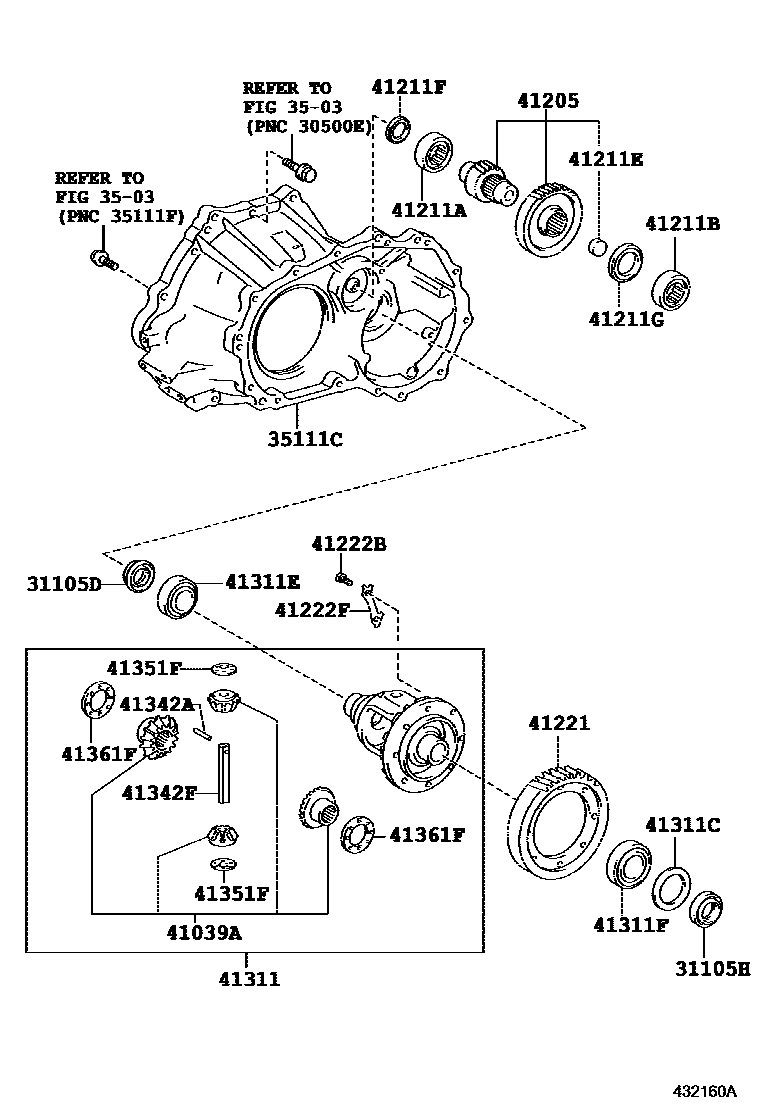

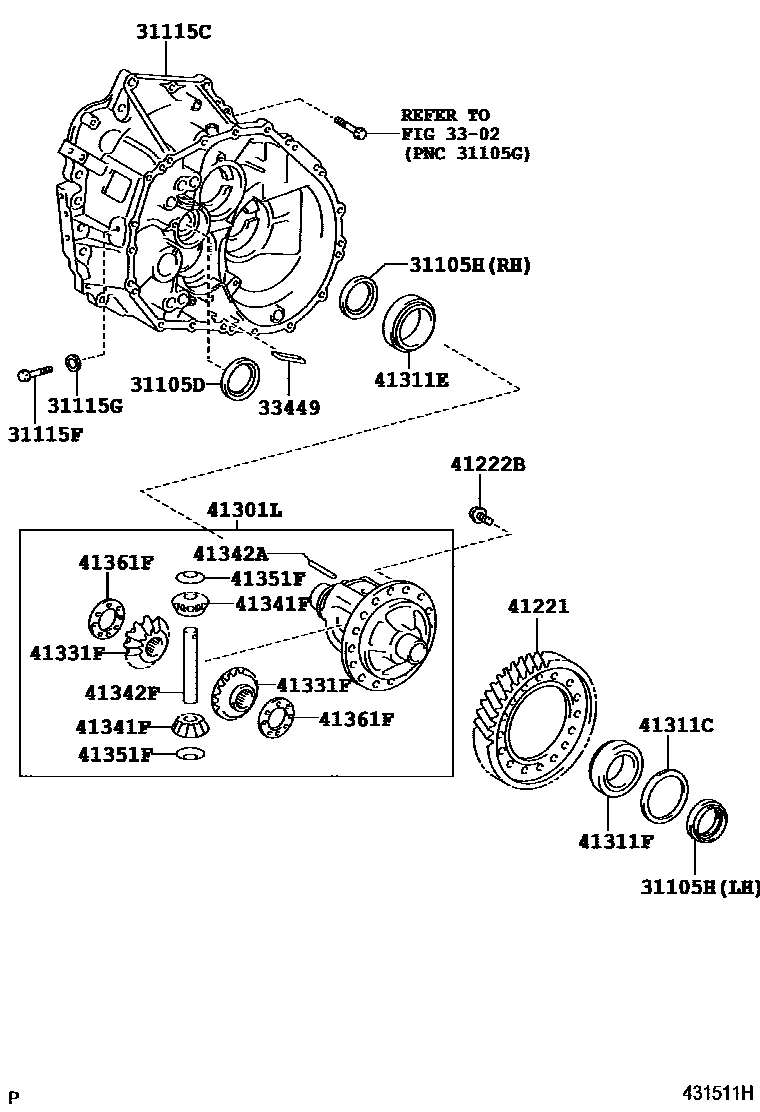

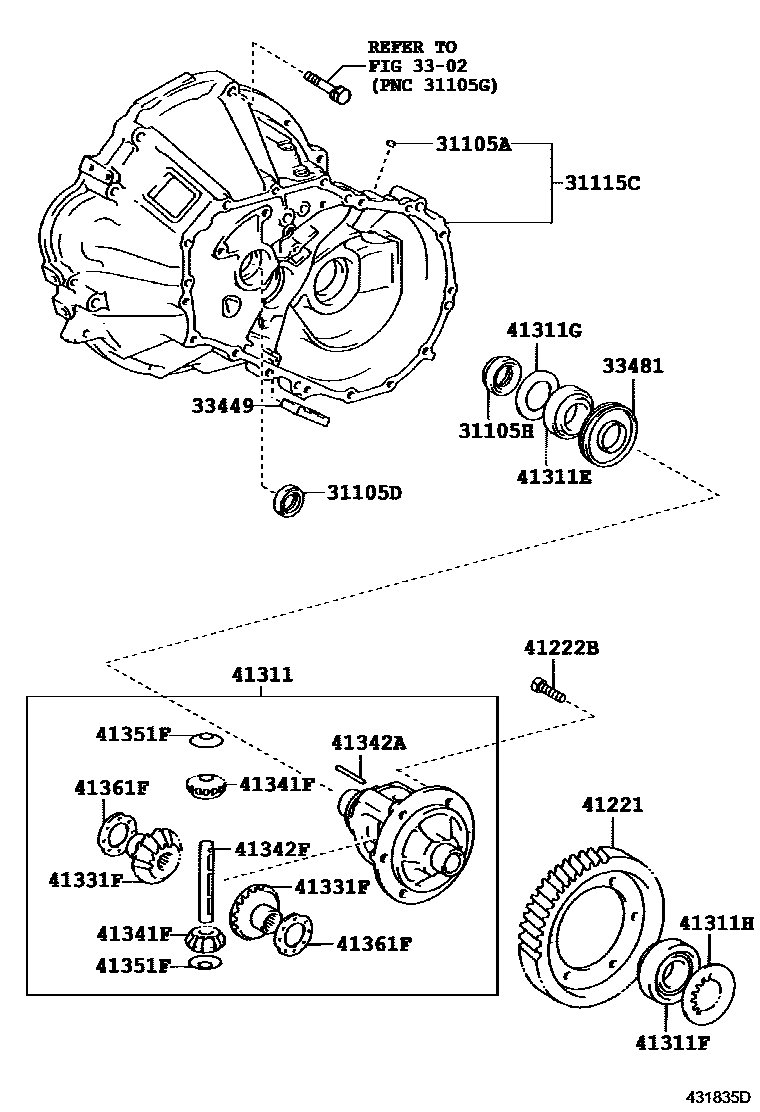

Toyota COROLLA 前桥壳和差速器 — Figure 4301
Toyota COROLLA EPC diagram 4301, 前桥壳和差速器, with 5 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 31105A | Sealing plug (for front transaxle housing) | 90331-08002 · 90331-25005 |
| 31105D | No. 1 oil seal (for front transmission axle housing) | 90311-25028 · 90311-25030 · 90311-30017 · 90311-34031 · 90311-34045 |
| 31105H | No. 2 oil seal (for transmission axle housing) | 90311-34030 · 90311-34033 · 90311-34037 · 90311-34041 · 90311-34044 · 90311-35057 · 90311-35062 · 90311-35065 · 90311-40030 · 90311-50032 |
| 31115C | Front transmission axle housing (MTM) | 31105-12220 · 31105-12230 · 31115-12160 · 31115-12170 · 31115-12180 · 31115-12200 · 31115-20080 · 31115-20110 · 31115-52090 · 31115-52100 · 31115-52140 |
| 31115F | Bolt (for front transaxle housing) | 90105-12354 |
| 31115G | Gasket (for front transaxle housing) | 90430-13004 |
| 33449 | derailleur magnet | 33449-12020 · 33449-60010 |
| 33481 | Speedometer driving gear (MTM) | 33481-12040 · 33481-20160 |
| 35111C | Transmission axle housing | 35105-52071 |
| 41039A | Differential gear assembly | 41039-12010 |
| 41205 | Differential drive pinion sub-assembly | 41205-52021 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90365-35004 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90365-35003 |
| 41211E | Plug (for differential drive pinion) | 90331-17017 |
| 41211F | Right side thrust needle bearing (for front drive pinion) | 90374-18005 |
| 41211G | Left side thrust needle bearing (for front drive pinion) | 90374-45001 |
| 41221 | Front differential ring gear | 41221-12420 · 41221-12470 · 41221-17040 · 41221-20410 · 41221-52090 · 41221-52091 |
| 41222B | Bolt (for front differential ring gear assembly) | 90101-11003 · 90105-11040 · 90105-12319 |
| 41222F | Front differential ring gear fixing bolt locking plate | 41222-32010 |
| 41300 | Front differential case assembly with ring gear | 41300-12010 · 41300-12030 · 41300-12040 · 41300-12070 · 41300-52020 · 41300-52090 |
| 41301L | No. 1 front differential housing sub-assembly | 41301-20250 |
| 41311 | front differential case | 41301-12041 · 41301-32061 · 41301-52070 |
| 41311C | Rear gasket (for front differential case) | 90564-49001 · 90564-49002 · 90564-49003 · 90564-49004 · 90564-49005 · 90564-49006 · 90564-49007 · 90564-49008 · 90564-49009 · 90564-49010 · 90564-49011 · 90564-49012 · 90564-49013 · 90564-49014 · 90564-49015 · 90564-49016 · 90564-49017 · 90564-49018 · 90564-49019 · 90564-56073 · 90564-56074 · 90564-56075 · 90564-56076 · 90564-56077 · 90564-56078 · 90564-56079 · 90564-56080 · 90564-56081 · 90564-56082 · 90564-56083 · 90564-56084 · 90564-56085 · 90564-56086 · 90564-56087 · 90564-56088 · 90564-56089 · 90564-56090 |
| 41311E | Front roller tapered bearing (for front differential housing) | 90366-38004 · 90366-40016 · 90366-40097 · 90366-40129 · 90366-50100 |
| 41311F | Rear tapered bearing (for front differential housing) | 90366-40094 · 90366-42009 · 90366-44001 · 90366-50103 · 90368-38010 |
| 41311G | Front flat washer (for front differential case) | 90560-41003 |
| 41311H | Rear flat washer (for front differential case) | 90564-41014 · 90564-41015 · 90564-41016 · 90564-41017 · 90564-41018 · 90564-41019 · 90564-41020 · 90564-41021 · 90564-41022 · 90564-41023 · 90564-41024 · 90564-41025 · 90564-41026 · 90564-41027 · 90564-41028 · 90564-41029 · 90564-41030 · 90564-41031 · 90564-41032 · 90564-44008 · 90564-44009 · 90564-44010 · 90564-44011 · 90564-44012 · 90564-44013 · 90564-44014 · 90564-44015 · 90564-44016 · 90564-44017 · 90564-44018 · 90564-44019 · 90564-44020 · 90564-44021 · 90564-44022 · 90564-44023 · 90564-44024 · 90564-44025 · 90564-44026 · 90564-44027 · 90564-44028 · 90564-44029 · 90564-44030 · 90564-44031 · 90564-44032 · 90564-44033 · 90564-44034 · 90564-44035 · 90564-44036 · 90564-44037 · 90564-44038 · 90564-44039 · 90564-44040 · 90564-44041 · 90564-44042 · 90564-44043 · 90564-44044 · 90564-44045 · 90564-44046 · 90564-44047 · 90564-44048 · 90564-44049 · 90564-44050 · 90564-44051 · 90564-44052 · 90564-44053 · 90564-44054 · 90564-44055 · 90564-44056 · 90564-44057 · 90564-44058 · 90564-44059 · 90564-44060 · 90564-44061 · 90564-44062 · 90564-44063 · 90564-44064 · 90564-44065 · 90564-44066 · 90564-44067 · 90564-44068 · 90564-44069 |
| 41311X | Roller cone bearing outer race (for front differential) | 90366-40130 |
| 41311Y | Roller cone bearing outer race (for rear differential) | 90366-42010 |
| 41331F | Front differential side gear | 41331-12011 · 41331-12150 · 41331-20130 · 41331-32010 · 41331-42040 |
| 41341F | Front differential planetary gear | 41341-12030 · 41341-12100 · 41341-20050 · 41341-30011 · 41341-35050 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-12140 · 41342-20060 · 41342-20070 · 41342-20090 · 41342-32020 |
| 41351F | Front differential planetary gear thrust washer | 41351-12020 · 41351-20050 · 41351-32010 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-17010 · 41361-17020 · 41361-17030 · 41361-17040 · 41361-17050 · 41361-17060 · 41361-20240 · 41361-20310 · 41361-20320 · 41361-20330 · 41361-20340 · 41361-20350 · 41361-20360 · 41361-20370 · 41361-20380 · 41361-20390 · 41361-20400 · 41361-20410 · 41361-20420 · 41361-20430 · 41361-20440 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22120 · 41361-22130 · 41361-22140 · 41361-22150 · 41361-22160 · 41361-22170 · 41361-22180 |
