Toyota COROLLA fuel filter — Figure 2302

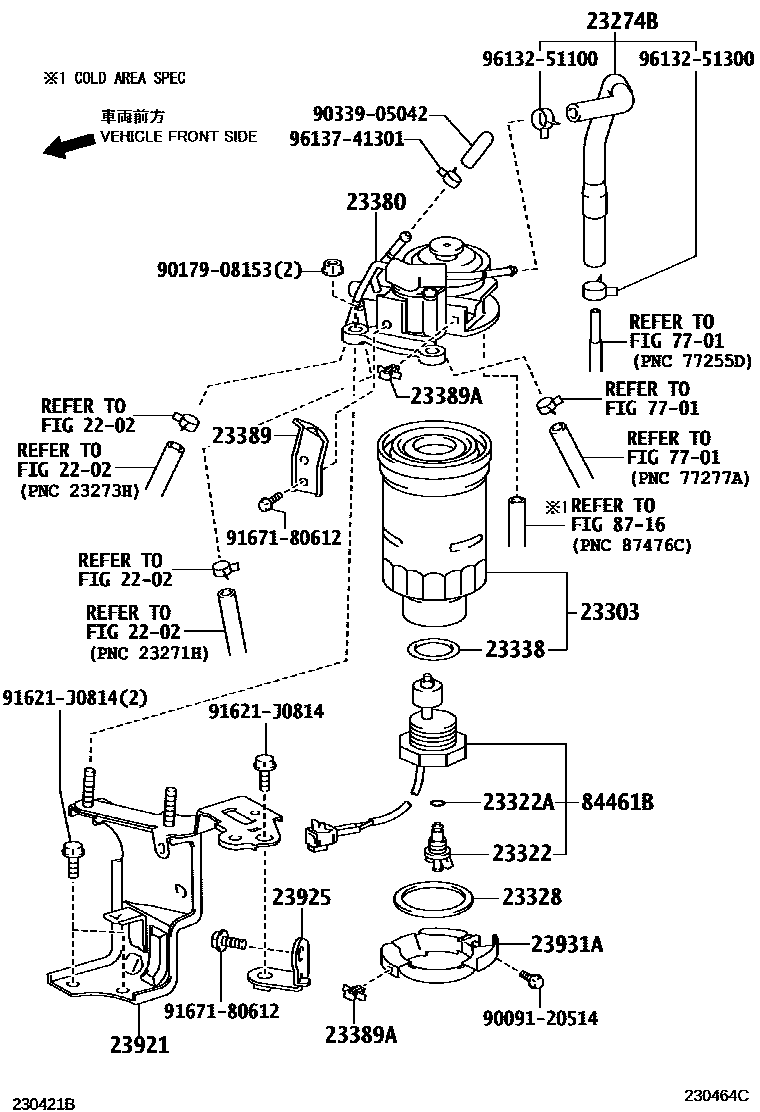

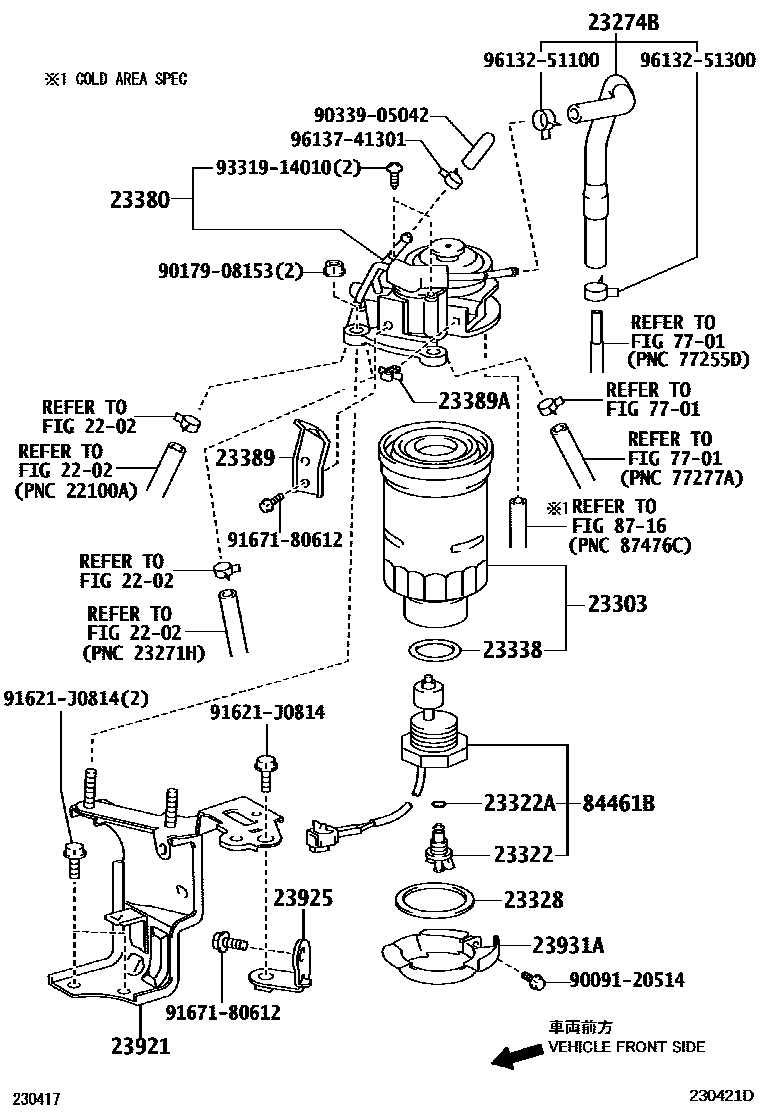

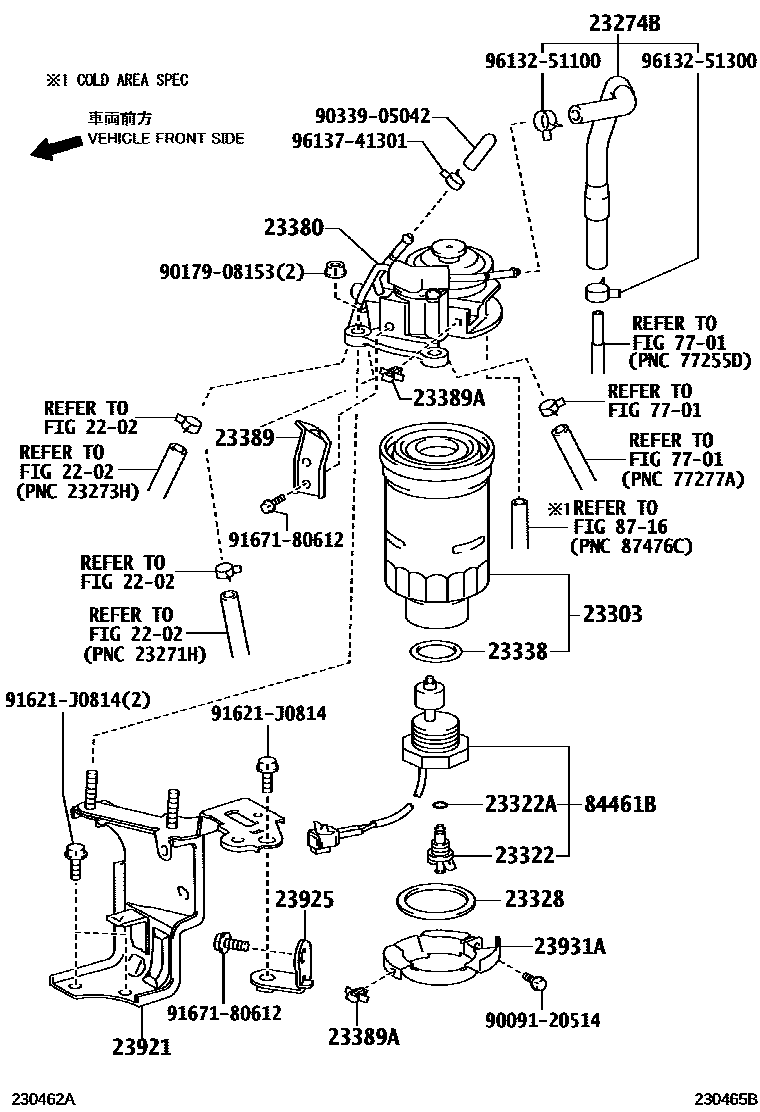

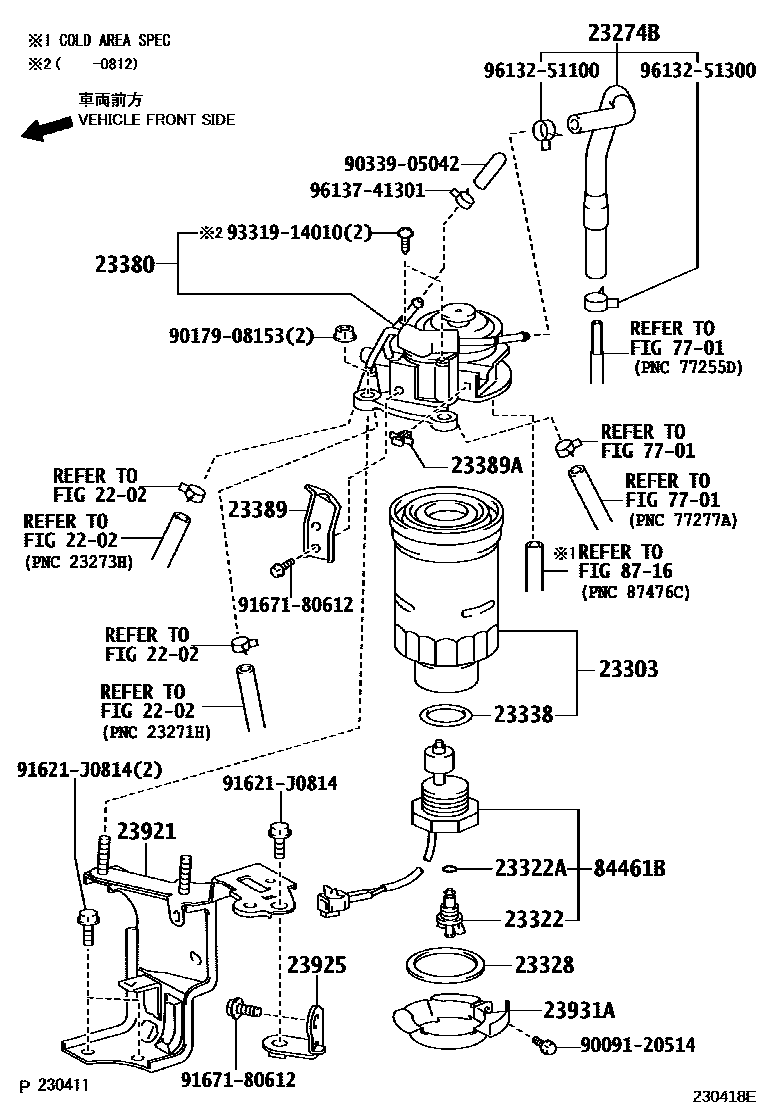

Toyota COROLLA EPC diagram 2302, fuel filter, with 4 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 23274B | No. 3 fuel hose | 23274-26060 |
| 23303 | Fuel filter element sub-assembly | 23390-26140 · 23390-26160 |
| 23322 | Drain plug (for fuel filter) | 23388-64470 |
| 23322A | O-ring (for drain plug) | 23344-54010 |
| 23328 | Gasket (for fuel filter) | 23385-30160 |
| 23338 | Gasket (for warning switch) | 23344-64010 |
| 23380 | Fuel filter cover assembly | 23380-0R051 · 23380-0R061 · 23380-26130 · 23380-26131 · 23380-26140 · 23380-26141 · 23380-26160 · 23380-26161 · 23380-26170 · 23380-26171 |
| 23389 | fuel filter clip | 23389-26130 |
| 23389A | fuel filter clip | 23389-27130 |
| 23921 | Fuel filter support | 23921-26040 · 23921-26041 |
| 23925 | fuel filter support stay | 23925-26010 · 23925-26011 |
| 23931A | fuel filter cover | 23931-26010 · 23931-26030 · 23931-26031 |
| 84461B | Liquid level warning switch | 84461-60080 · 84461-60081 |
