Toyota COROLLA 真空泵 — Figure 1905

Toyota COROLLA EPC diagram 1905, 真空泵, with 4 images and 1 PNC and OE references.

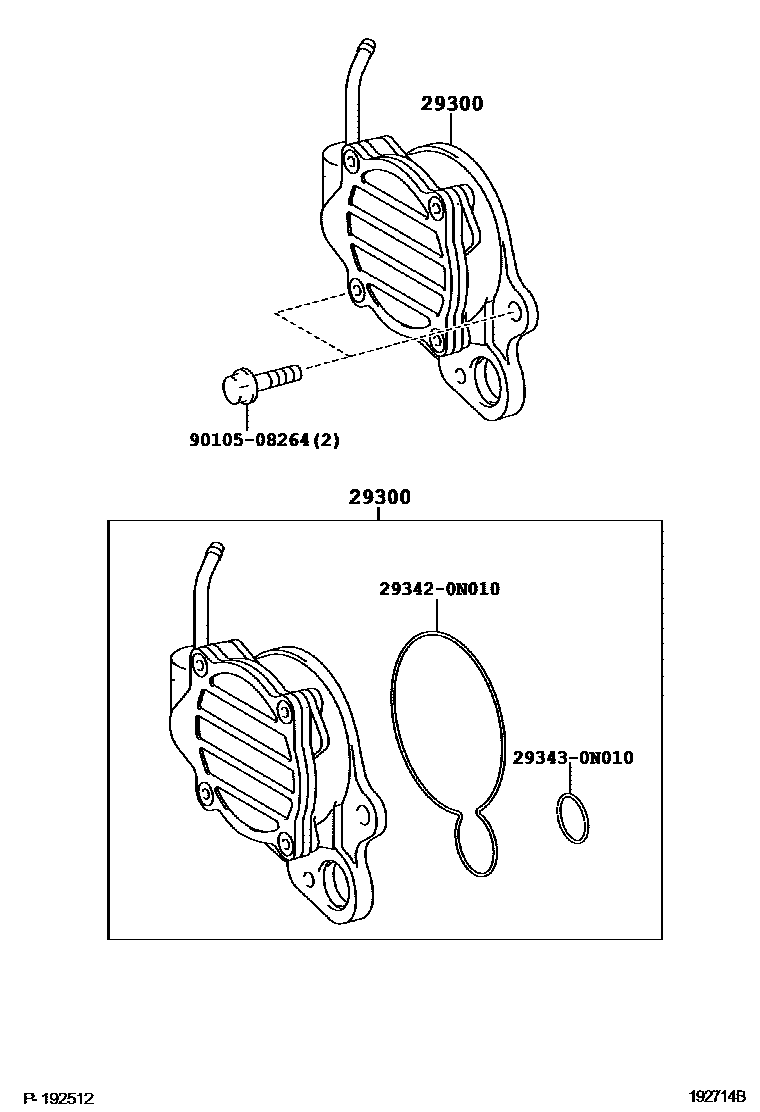

Toyota COROLLA 真空泵 EPC diagram — 192714B — 真空泵 — 192714B (200611 – 200812)

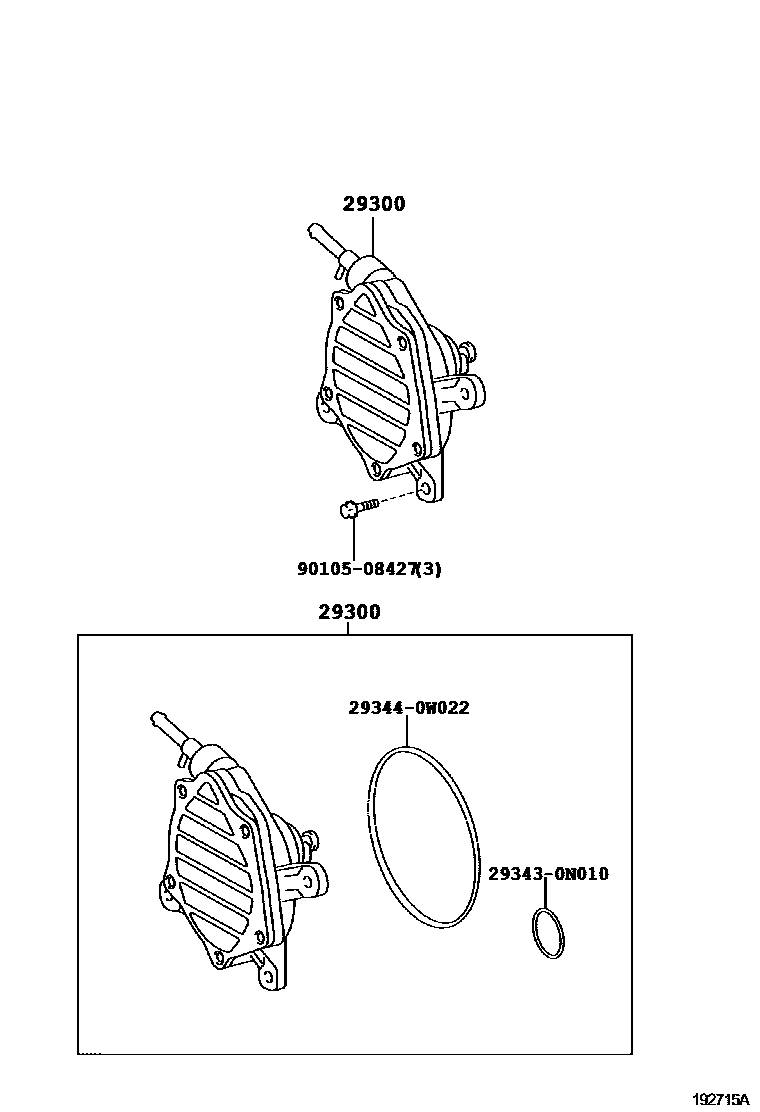

Toyota COROLLA 真空泵 EPC diagram — 192715A — 真空泵 — 192715A (200611 – 999999)

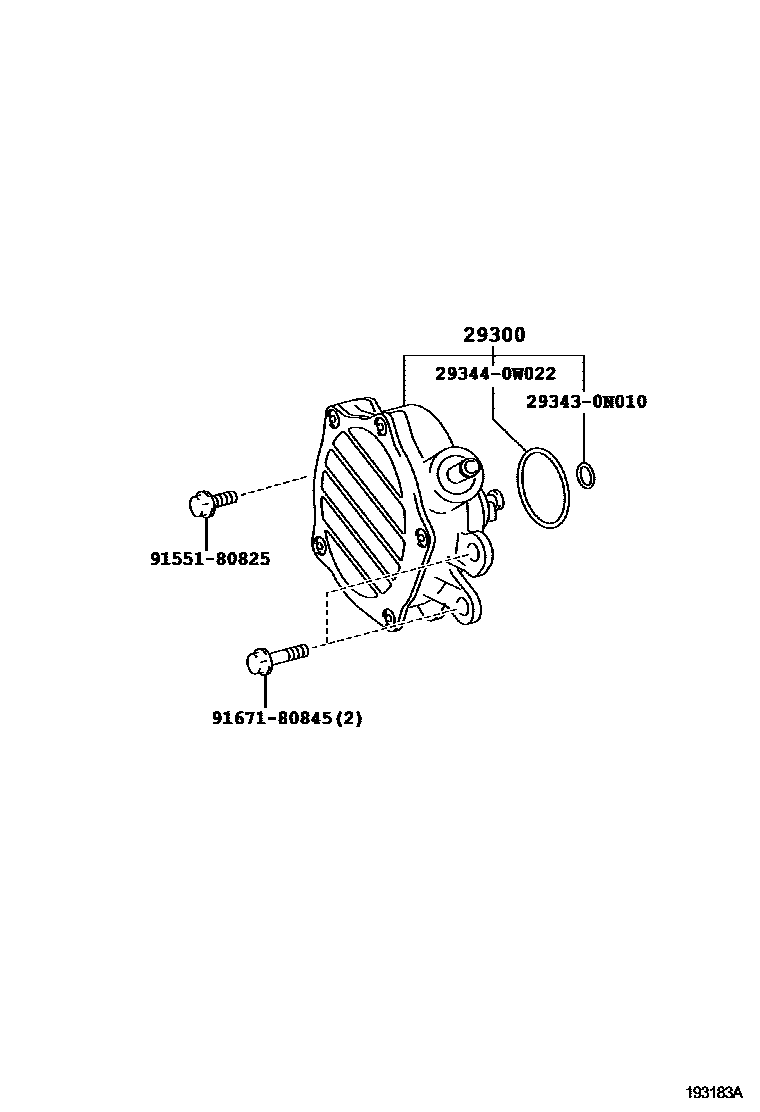

Toyota COROLLA 真空泵 EPC diagram — 193183A — 真空泵 — 193183A (200812 – 999999)

Toyota COROLLA 真空泵 EPC diagram — 193184 — 真空泵 — 193184 (200812 – 999999)

PNC and OE references

PNC	Part name	OE numbers
29300	Vacuum pump assembly	29300-0N010 · 29300-0W022 · 29300-0W030 · 29300-0W070 · 29300-0W072
