Toyota COROLLA V-Belt — Figure 1605

Toyota COROLLA EPC diagram 1605, V-Belt, with 3 images and 1 PNC and OE references.

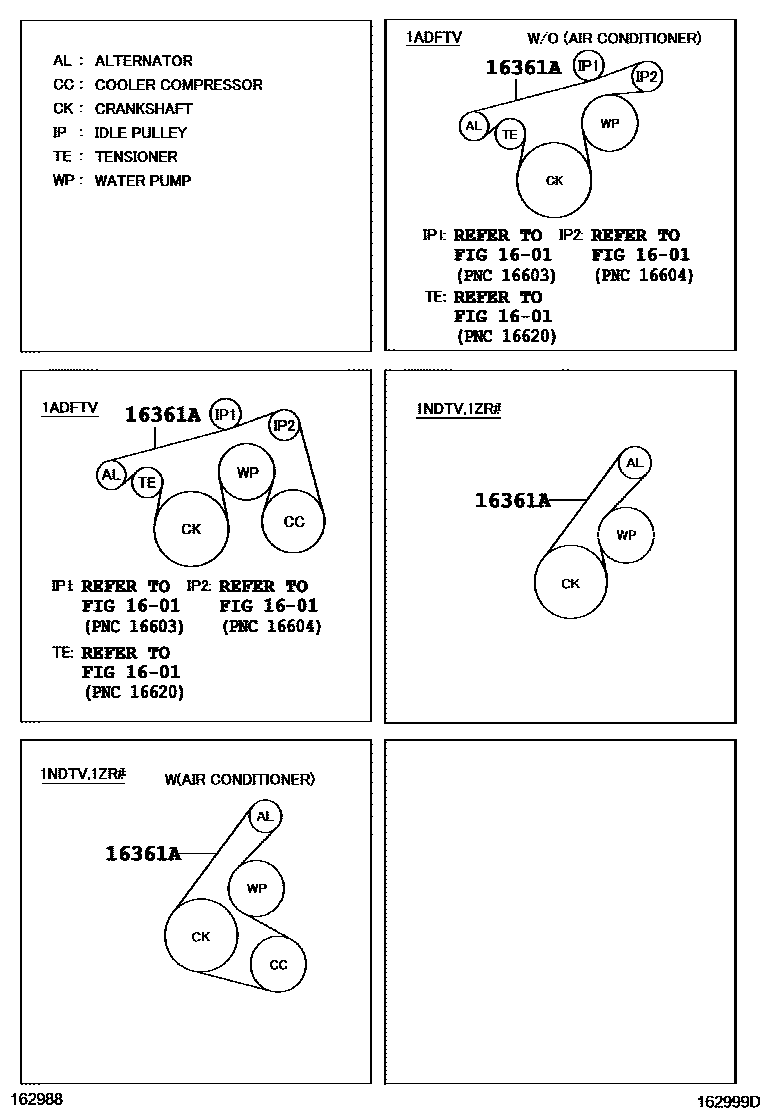

Toyota COROLLA V-Belt EPC diagram — 162999D
V-Belt — 162999D (200611 – 999999)

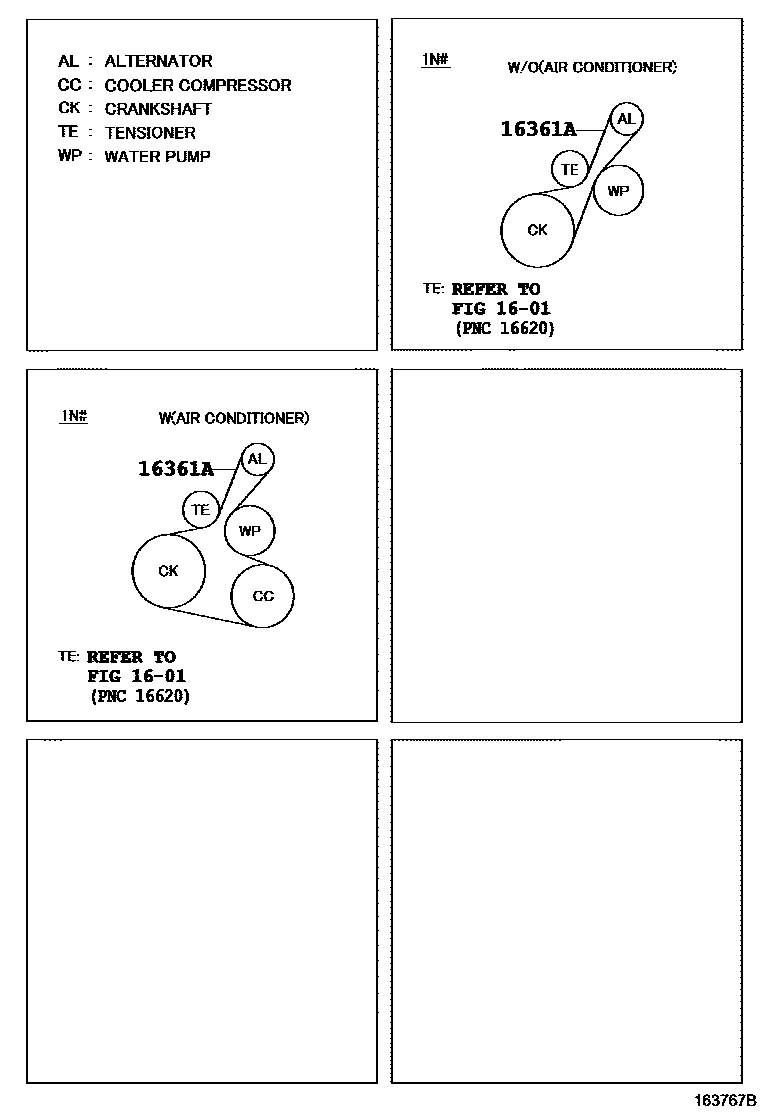

Toyota COROLLA V-Belt EPC diagram — 163767B
V-Belt — 163767B (200812 – 999999)

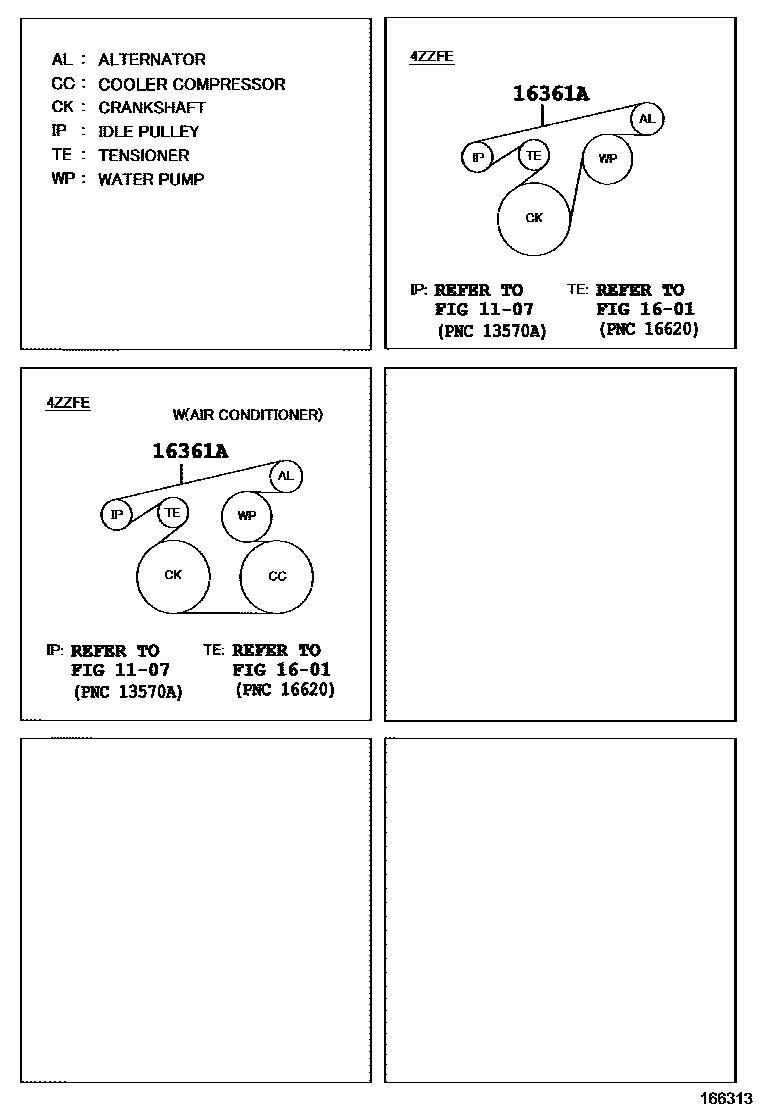

Toyota COROLLA V-Belt EPC diagram — 166313
V-Belt — 166313 (200611 – 999999)

PNC and OE references

PNCPart nameOE numbers
16361AV-belts (for fans and generators)90916-02539 · 90916-02574 · 90916-02650 · 90916-02664 · 90916-02673 · 90916-02674 · 90916-02675 · 90916-02676 · 90916-02677 · 90916-02678 · 90916-W2013 · 90916-W2014 · 90916-W2016 · 99366-C0970 · 99366-K0910 · 99366-K1230 · 99367-L1870
