Toyota COROLLA Short Block Assembly — Figure 1102

Toyota COROLLA EPC diagram 1102, Short Block Assembly, with 2 images and 1 PNC and OE references.

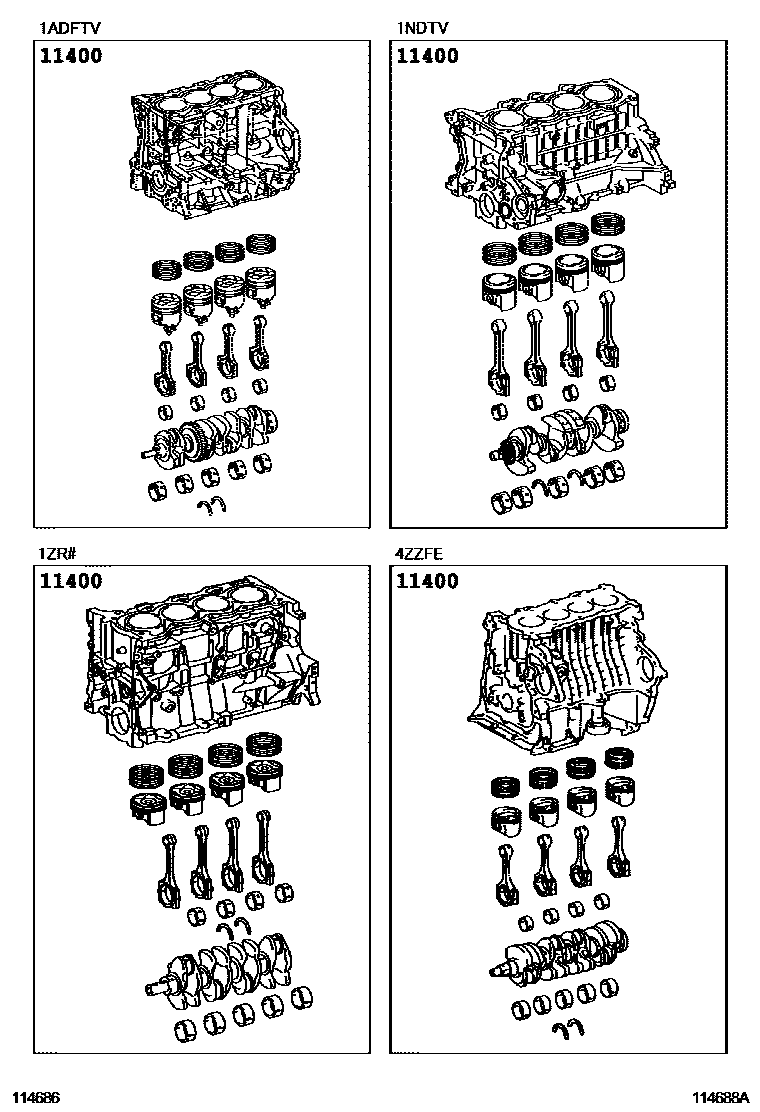

Toyota COROLLA Short Block Assembly EPC diagram — 114688A
Short Block Assembly — 114688A (200611 – 999999)

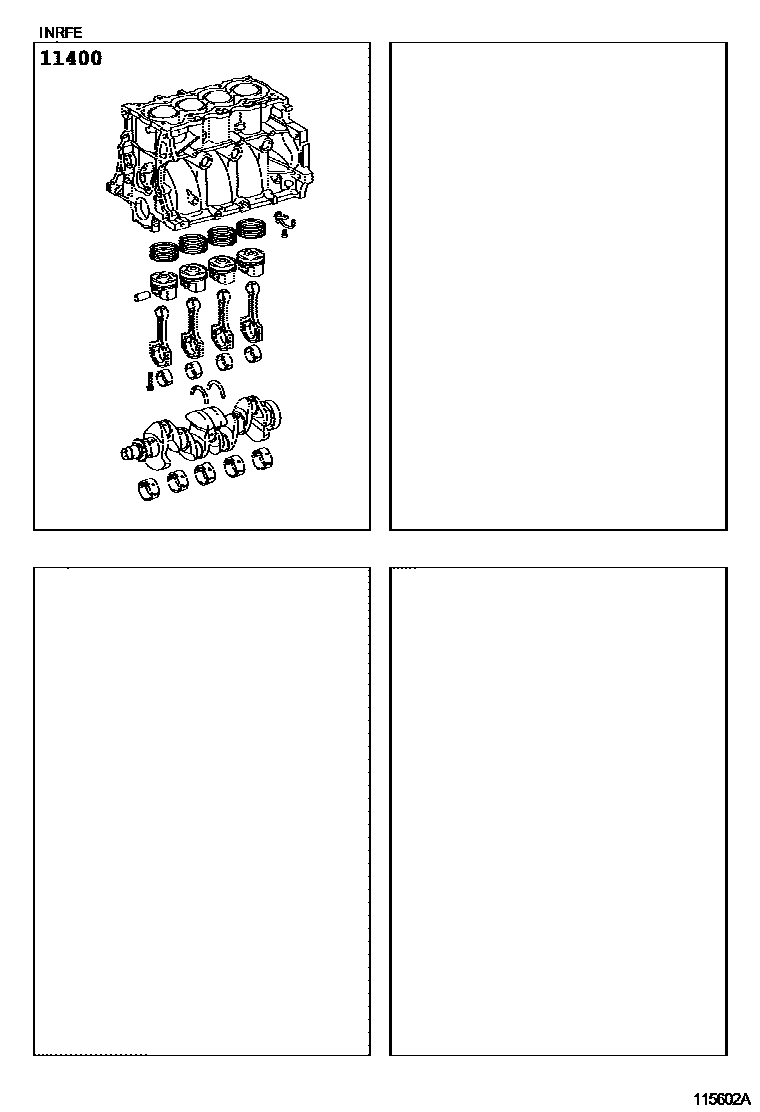

Toyota COROLLA Short Block Assembly EPC diagram — 115602A
Short Block Assembly — 115602A (200812 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-22070 · 11400-22071 · 11400-26130 · 11400-26190 · 11400-26230 · 11400-33090 · 11400-33140 · 11400-33160 · 11400-33161 · 11400-33170 · 11400-37070 · 11400-37071 · 11400-37130 · 11400-37131 · 11400-47020 · 11400-47030
