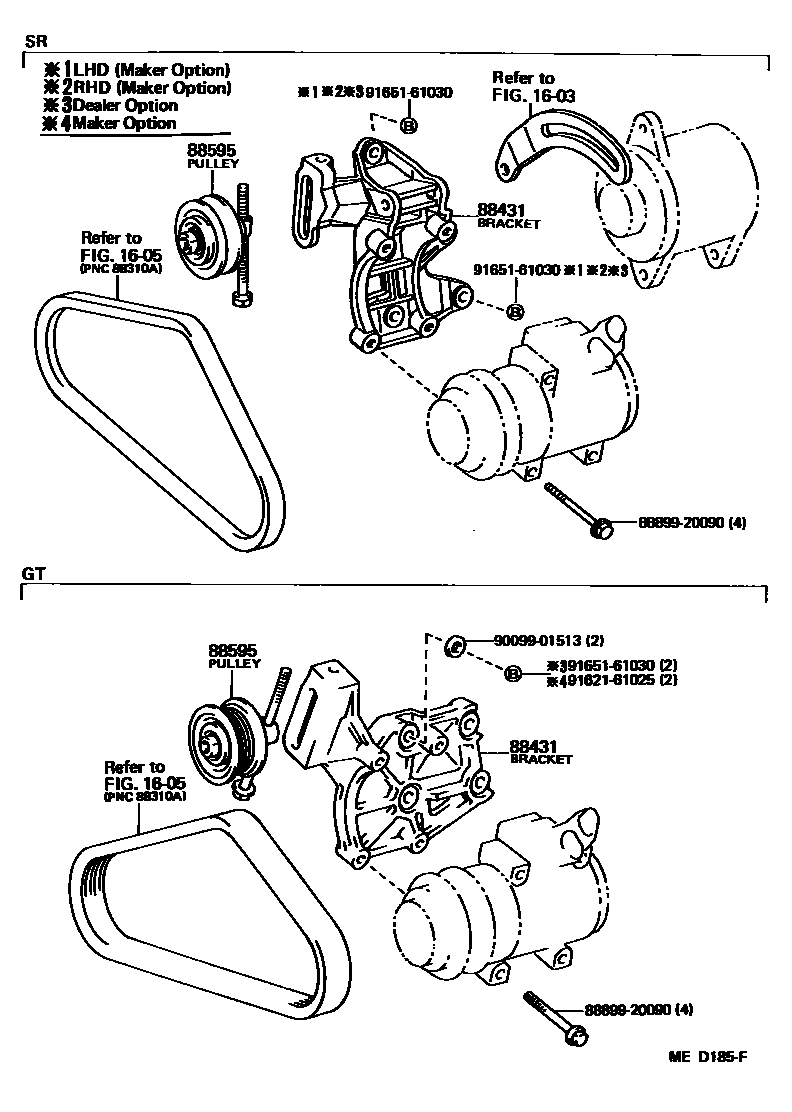

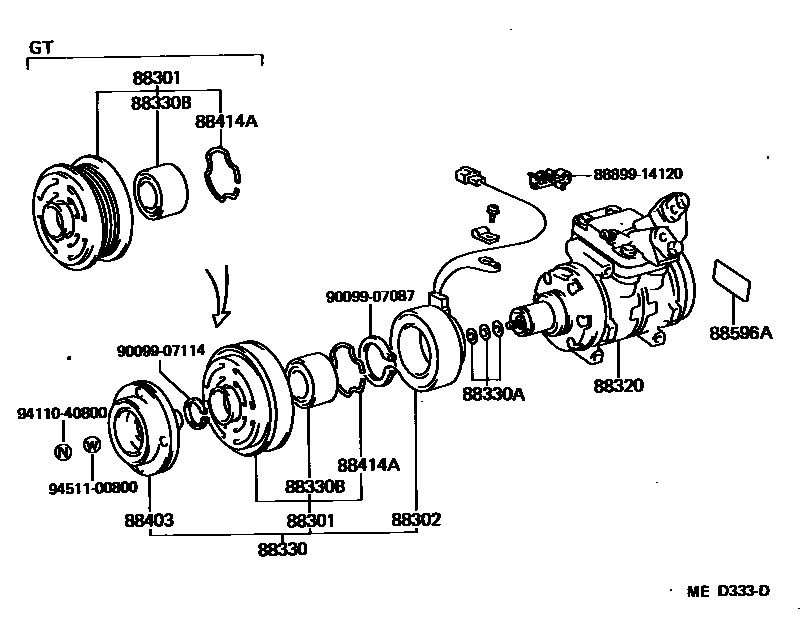

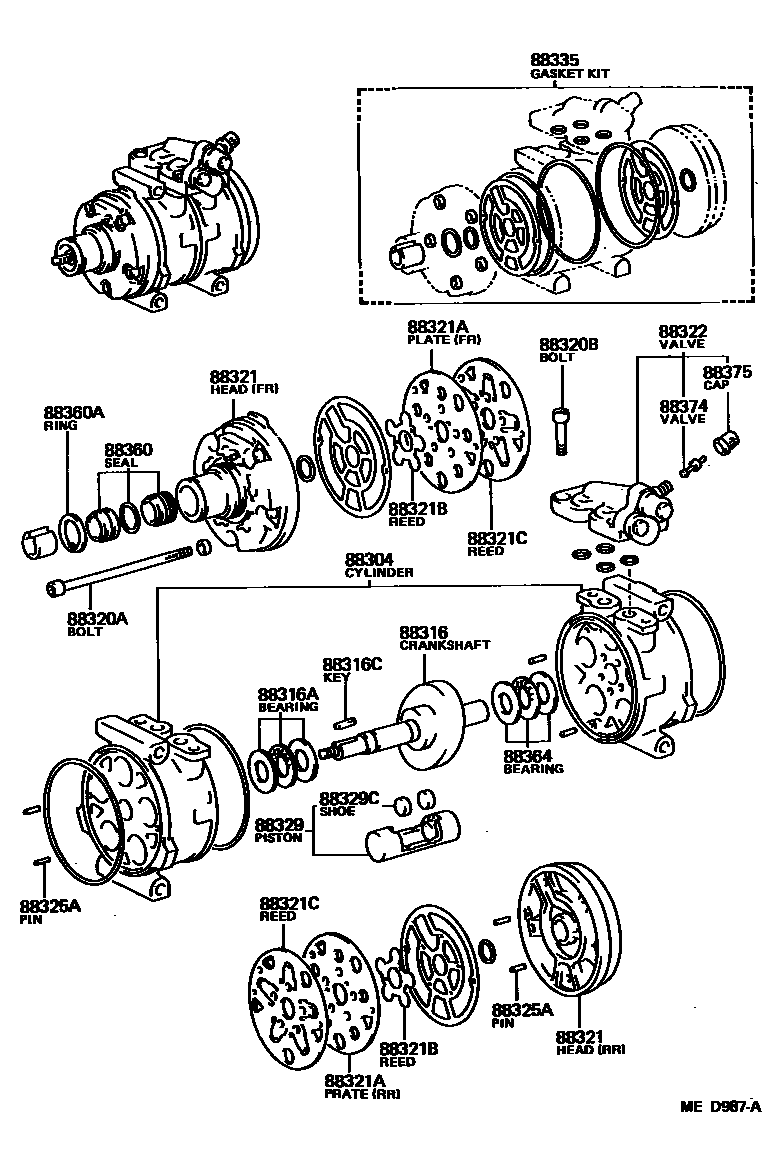

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-12110 · 88412-14030 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-14060 · 88411-22070 · 88411-22100 |
| 88304 | Cooler compressor cylinder sub-assembly | 88304-14041 |
| 88316 | Cooler compressor crankshaft | 88316-14021 |
| 88316A | Compressor crankshaft front bearing | 88366-14010 |
| 88316C | Compressor crankshaft key | 90099-13012 · 90099-13024 |
| 88320 | Cooler Compressor Assembly | 88320-12280 · 88320-12300 · 88320-12420 · 88320-12430 · 88320-12440 · 88320-12450 |
| 88320A | Through bolt | 90099-04968 |
| 88320B | Service valve bolts | 90099-04255 |
| 88321 | Cooler compressor cylinder head | 88321-14011 · 88322-14011 |
| 88321A | Valve sub-assembly | 88341-14010 · 88342-14010 |
| 88321B | Valve reed sub-assembly | 88344-14011 |
| 88321C | suction valve reed | 88343-14011 |
| 88322 | Cooler compressor suction service valve | 88371-12220 · 88371-12230 · 88371-12290 · 88371-12300 · 88371-12310 · 88371-12320 |
| 88325A | cylinder pin | 90099-08058 |
| 88329 | Cooler compressor piston sub-assembly | 88301-12050 |
| 88329C | piston shoe | 88313-14010 |
| 88330 | Magnetic Clutch Assembly | 88410-12150 · 88410-12200 · 88410-14110 |
| 88330A | Washer (for electromagnetic clutch) | 88335-12050 |
| 88330B | Electromagnetic clutch bearing | 90099-10133 · 90099-10135 |
| 88335 | Overhaul gasket assembly | 04881-10010 · 04881-32010 · 88335-12030 |
| 88360 | Cooler compressor shaft seal assembly | 88360-14020 · 88360-40010 |
| 88360A | Compressor seal ring | 90096-90022 |
| 88364 | Compressor crankshaft rear bearing | 88366-14010 |
| 88374 | Cooler compressor service valve | 88374-12020 |
| 88375 | Cooler compressor repair valve cover | 88375-30270 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-12030 · 88403-12040 · 88403-14030 · 88403-14040 |
| 88414A | Guard plate snap ring | 90099-07094 |
| 88431 | Compressor No. 1 mounting bracket | 88431-12280 · 88431-12310 · 88431-12311 · 88431-12320 |
| 88595 | Cooler compressor idler pulley | 88440-12110 · 88440-12120 |
| 88596A | warning nameplate | 88356-12010 |
