Toyota COROLLA 暖风和空调系统 - 水管 — Figure 8716

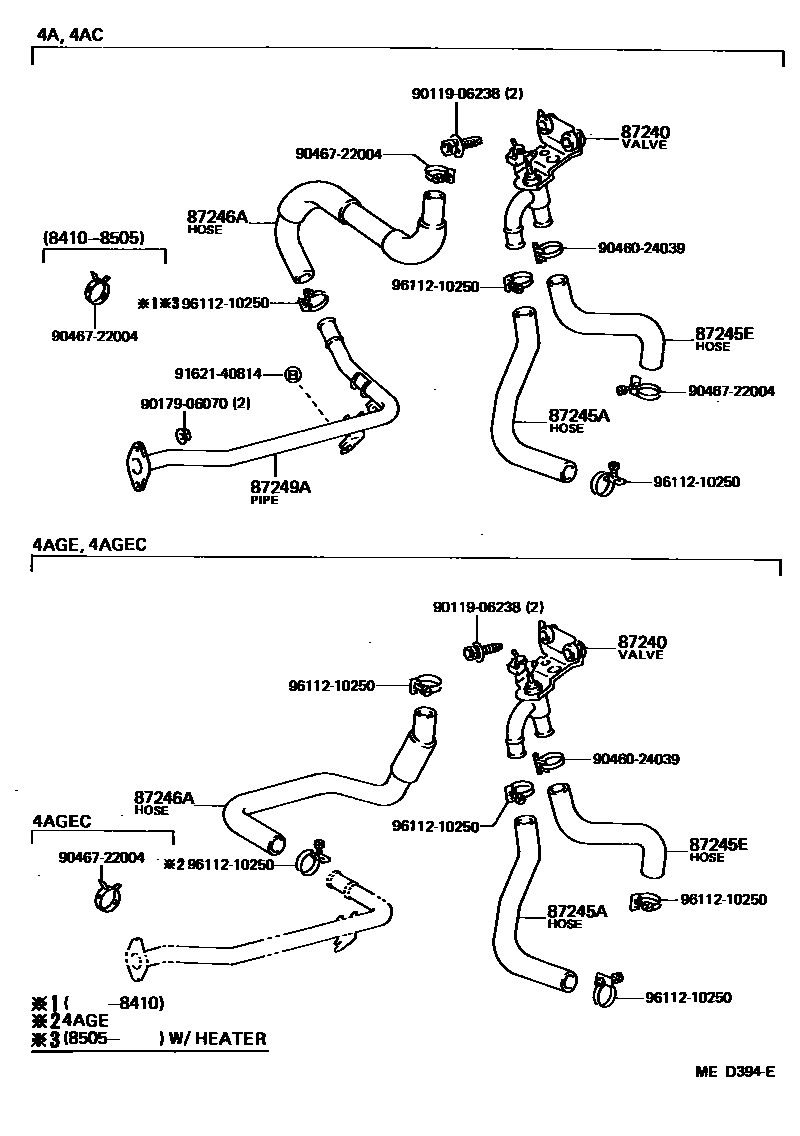

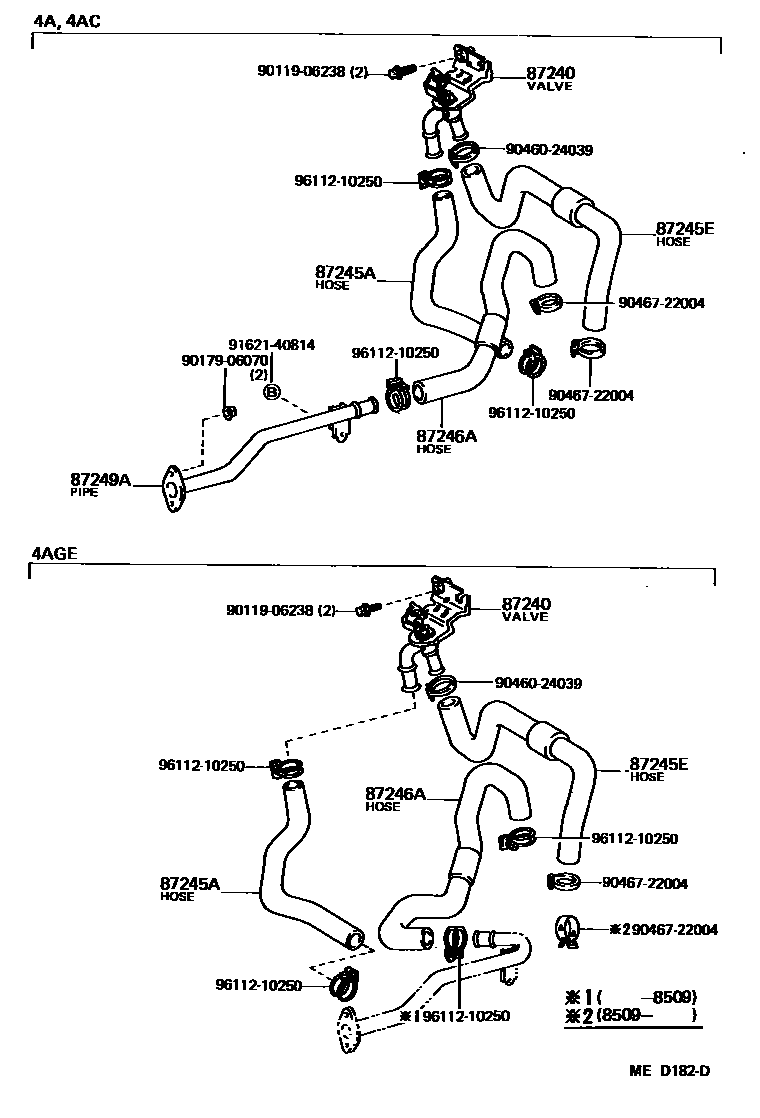

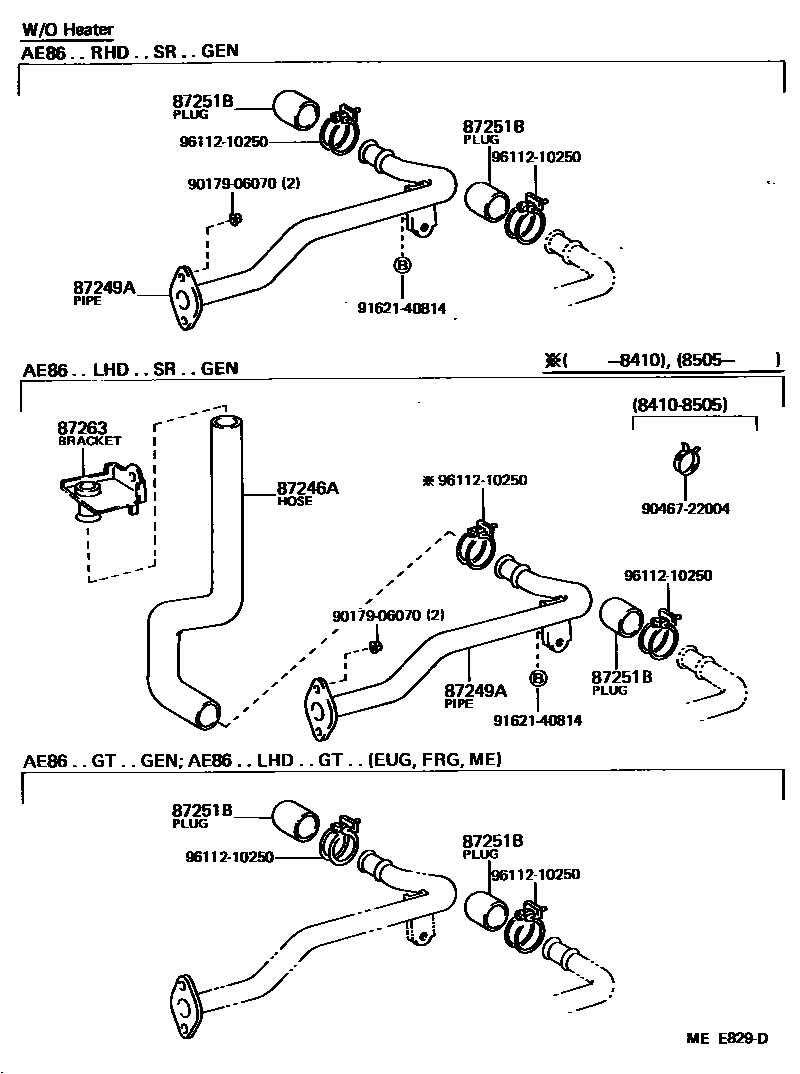

Toyota COROLLA EPC diagram 8716, 暖风和空调系统 - 水管, with 3 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87240 | Heater water valve assembly | 87240-12210 |
| 87245A | Heater water inlet hose A | 87245-12800 |
| 87245E | Heater water inlet hose E | 87245-12770 · 87245-12780 |
| 87246A | Heater outlet hose A | 87245-12790 · 87245-12810 · 87245-12820 · 87245-12830 · 87245-1A050 · 87245-1A150 |
| 87249A | Heater outlet pipe A | 87208-12012 · 87208-12020 |
| 87251B | heater water plug | 90339-16007 |
| 87263 | No. 1 heater water pipe bracket | 87263-12230 |
