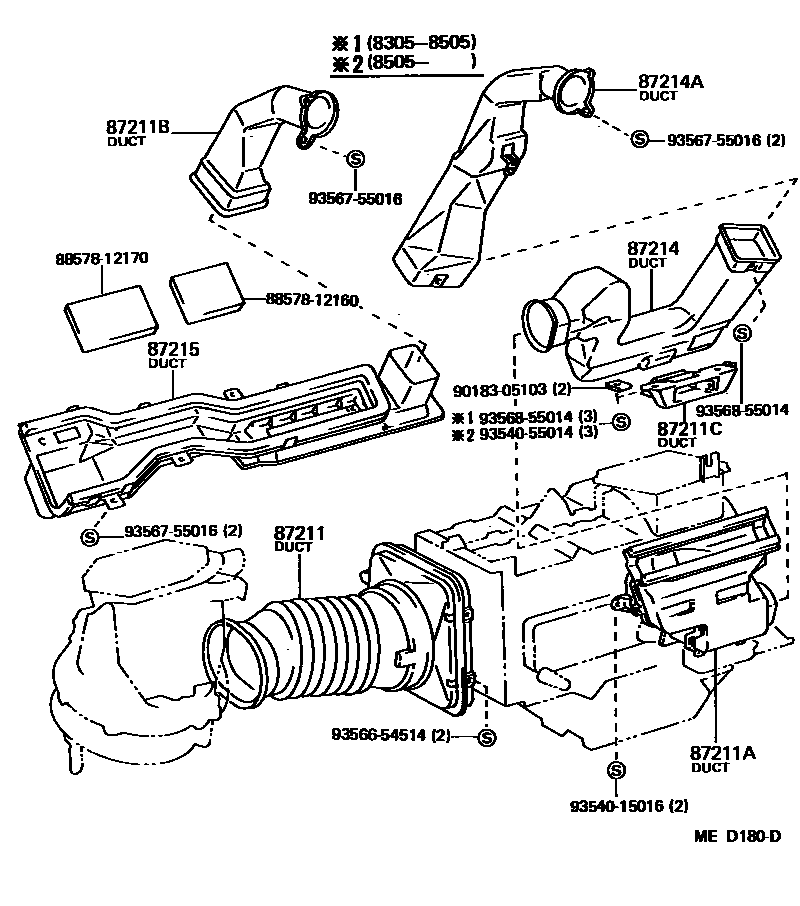

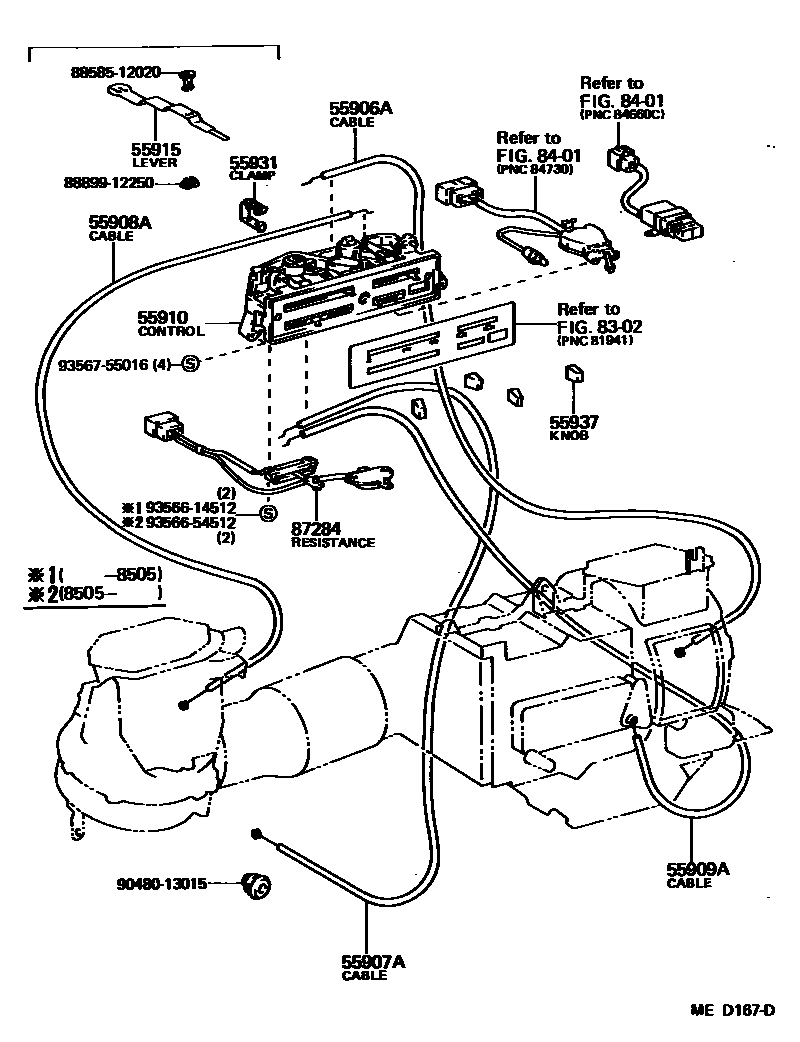

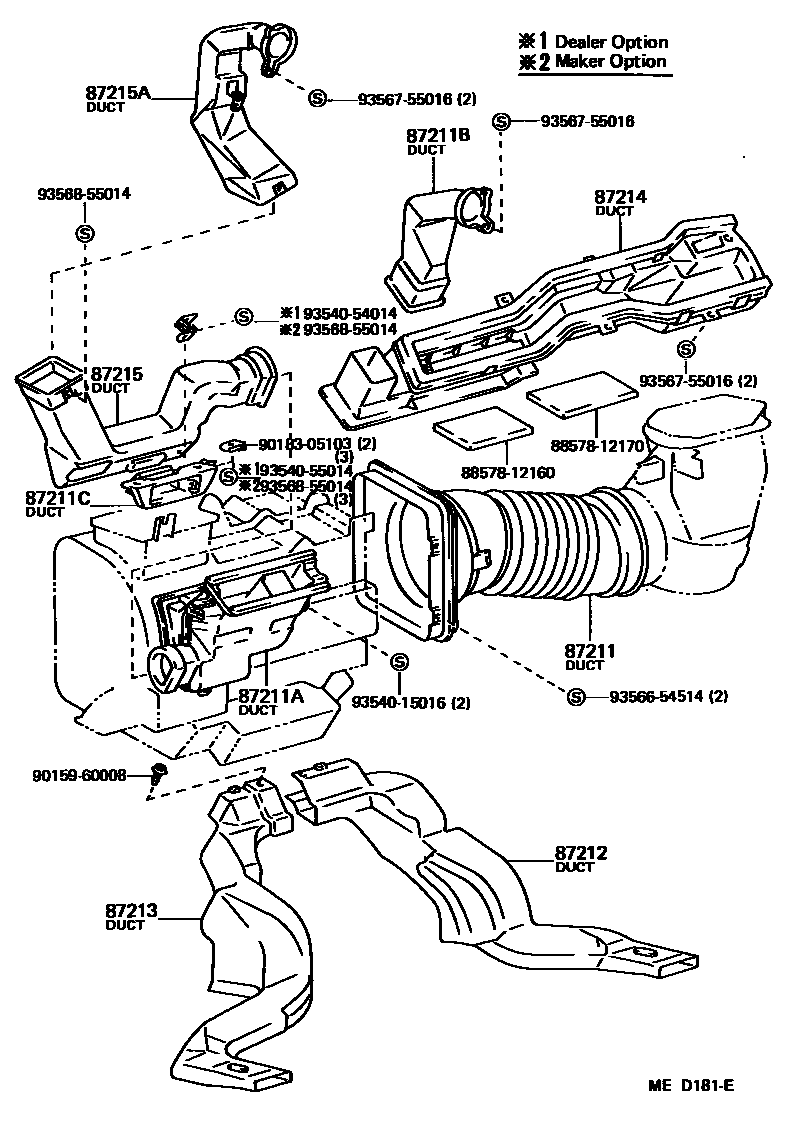

Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 3 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55906A | Defroster damper control cable sub-assembly | 55906-12170 · 55906-12210 |
| 55907A | Water valve control cable sub-assembly | 55907-12210 · 55907-12220 |
| 55908A | Intake air valve control cable sub-assembly | 55908-12150 · 55908-12180 |
| 55909A | Air mix damper control cable sub-assembly | 55909-12130 · 55909-12160 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-12370 · 55910-12380 · 55910-12390 · 55910-12420 · 55910-12430 |
| 55915 | cooler control lever | 55917-12080 |
| 55931 | Heater control harness clip | 55933-12010 |
| 55937 | Heater lever button | 55905-12060 · 55905-12070 |
| 87211 | No. 1 air duct | 87201-12020 · 87201-12030 |
| 87211A | Duct No. 2 | 87201-12060 · 87201-12070 |
| 87211B | No. 3 air duct | 55845-12090 · 55845-12100 |
| 87211C | No. 4 air duct | 55690-12010 |
| 87212 | No. 1 rear air duct | 87212-12050 |
| 87213 | No. 2 rear air duct | 87203-12020 |
| 87214 | Air duct No. 1 on the right | 55085-12090 · 55085-12110 · 55087-12100 |
| 87214A | Air duct No. 2 on the right | 55084-12110 |
| 87215 | Air duct No. 1 on the left | 55085-12100 · 55085-12120 · 55087-12090 |
| 87215A | Air duct No. 2 on the left | 55084-12120 |
| 87284 | Variable resistor sub-assembly | 88032-12060 |
