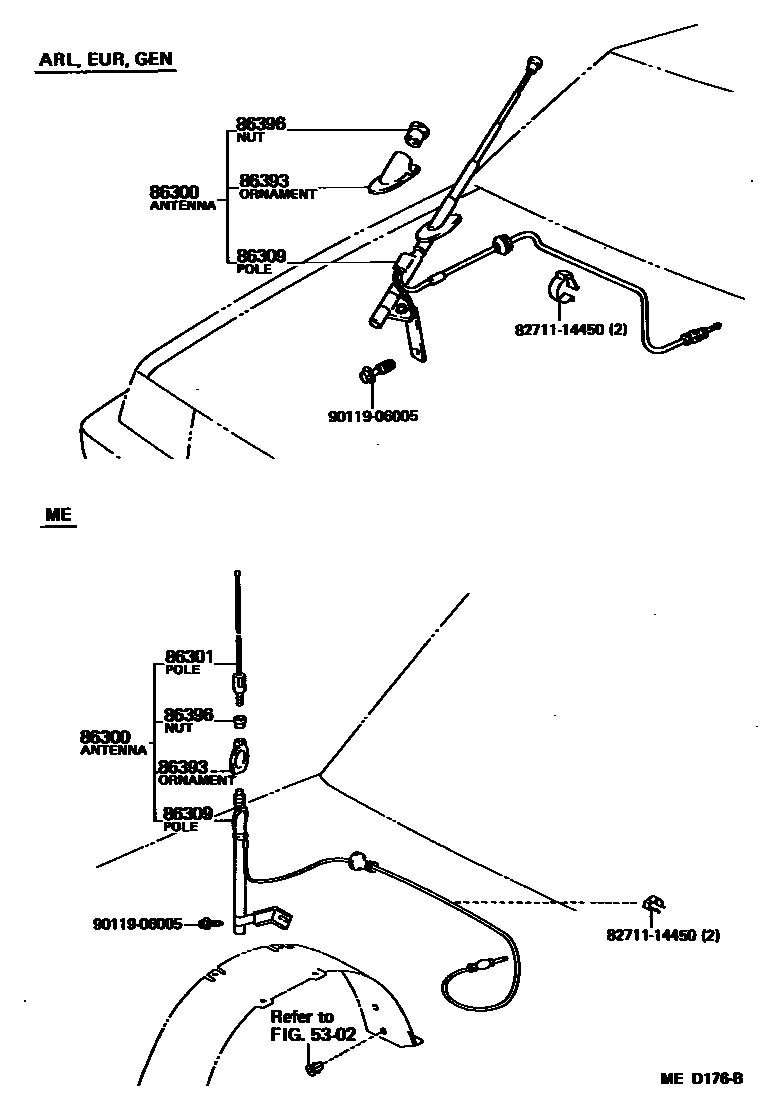

Toyota COROLLA antenna — Figure 8604
Toyota COROLLA EPC diagram 8604, antenna, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86300 | Antenna assembly with fixing parts | 86300-12260 · 86300-12270 · 86300-12280 |
| 86301 | Antenna sub-assembly | 86309-16041 |
| 86309 | Cylindrical antenna sub-assembly | 86309-12090 · 86309-12100 · 86309-12110 |
| 86393 | Antenna decorative parts | 86392-12050 · 86392-12060 |
| 86396 | Antenna nut | 86396-12020 |
