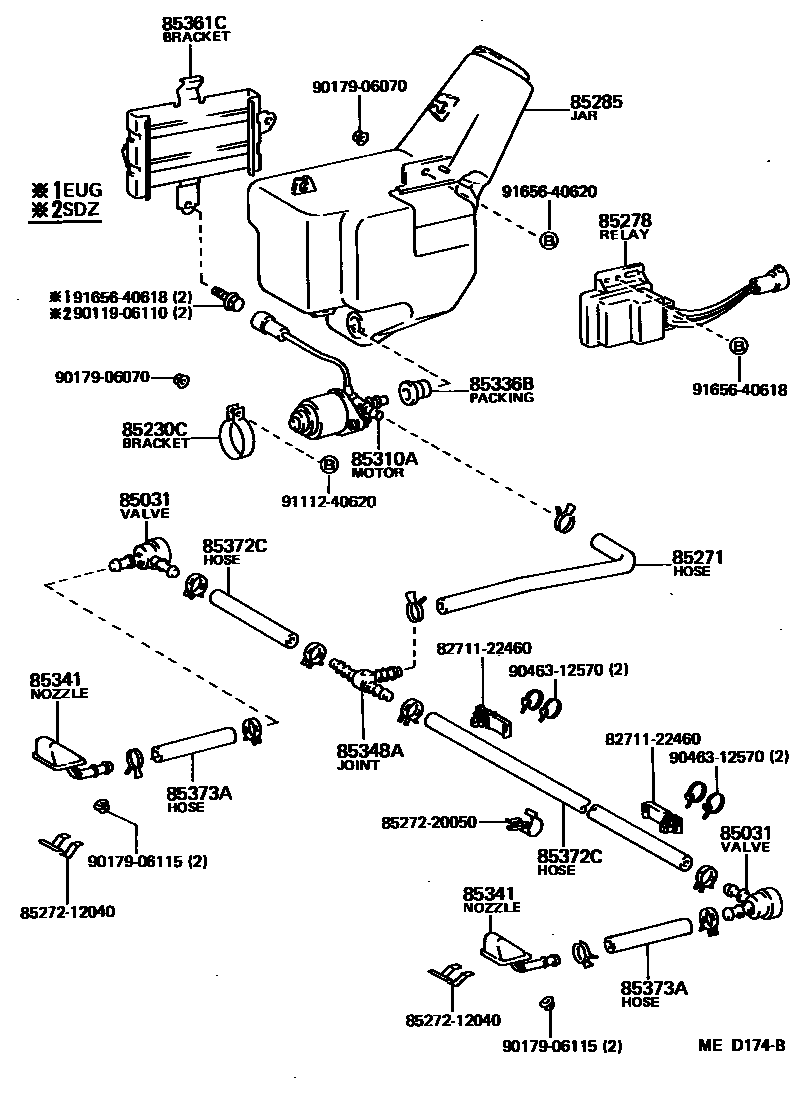

Toyota COROLLA 前大灯清洗器 — Figure 8505
Toyota COROLLA EPC diagram 8505, 前大灯清洗器, with 1 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031 | Headlight washer hose valve | 85031-30020 |
| 85230C | Headlight washer bracket assembly | 85361-16050 |
| 85271 | No. 1 headlight washer hose | 85376-12510 · 85376-28010 |
| 85278 | Headlight washer control relay assembly | 85276-12040 · 85276-12041 · 85276-14030 |
| 85285 | Headlight washer cleaning fluid tank | 85330-12230 · 85330-12250 |
| 85310A | Headlight washer motor and pump assembly | 85310-22060 · 85310-22070 · 85310-22100 |
| 85336B | Headlight washer seal | 85336-10010 |
| 85341 | Headlight washer nozzle | 85035-12130 · 85035-12131 |
| 85348A | Headlight washer hose connector No. 1 | 85352-12010 |
| 85361C | Cleaner stand | 85036-12010 |
| 85372C | Headlight washer hose (from connector to valve) | 85375-30030 · 90445-14042 · 90445-14046 |
| 85373A | Headlight washer hose (from connector to nozzle) | 90445-14055 |
