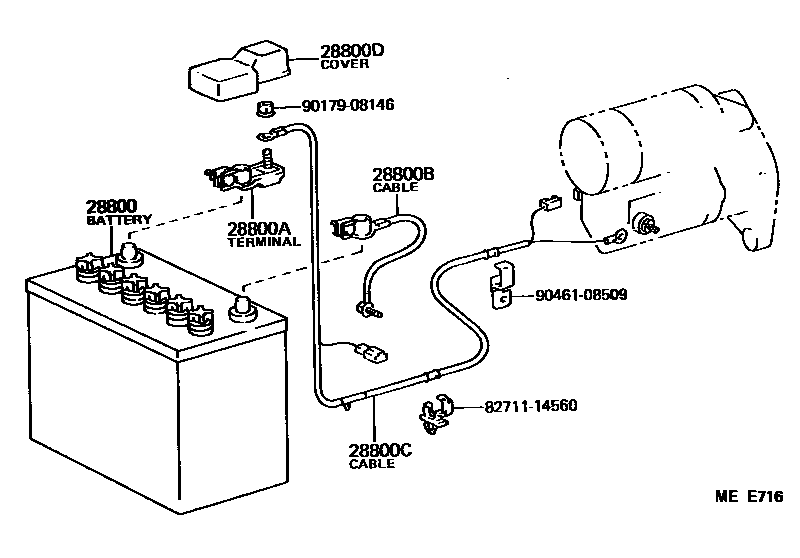

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-15050 · 28800-26040 · 28800-26090 · 28800-31031 · 28800-43070 |
| 28800A | battery positive terminal | 90982-05027 · 90982-05028 · 90982-05029 · 90982-05030 |
| 28800B | Cable between battery and ground | 82123-12080 · 82123-12090 |
| 28800C | Cable between battery and starter (for battery to main switch) | 82122-12150 · 82122-12160 · 82122-12230 · 82122-12280 · 82122-12290 |
| 28800D | Connector cover (for battery terminals) | 82821-12190 |
