Toyota COROLLA 后组合灯 — Figure 8111

Toyota COROLLA EPC diagram 8111, 后组合灯, with 4 images and 11 PNC and OE references.

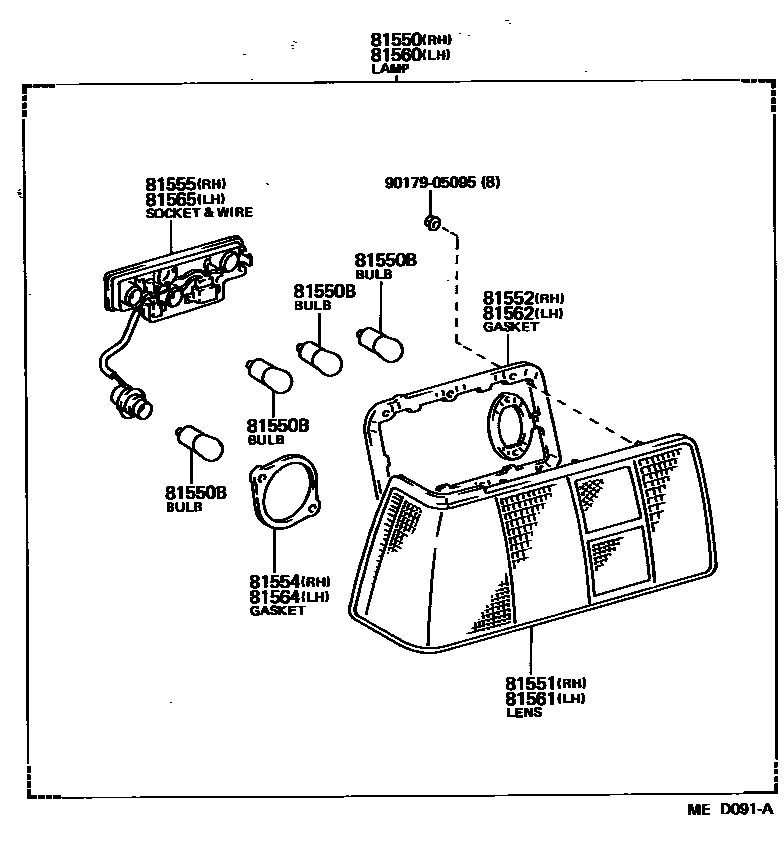

Toyota COROLLA 后组合灯 EPC diagram — MED091A
后组合灯 — MED091A (198305 – 999999)

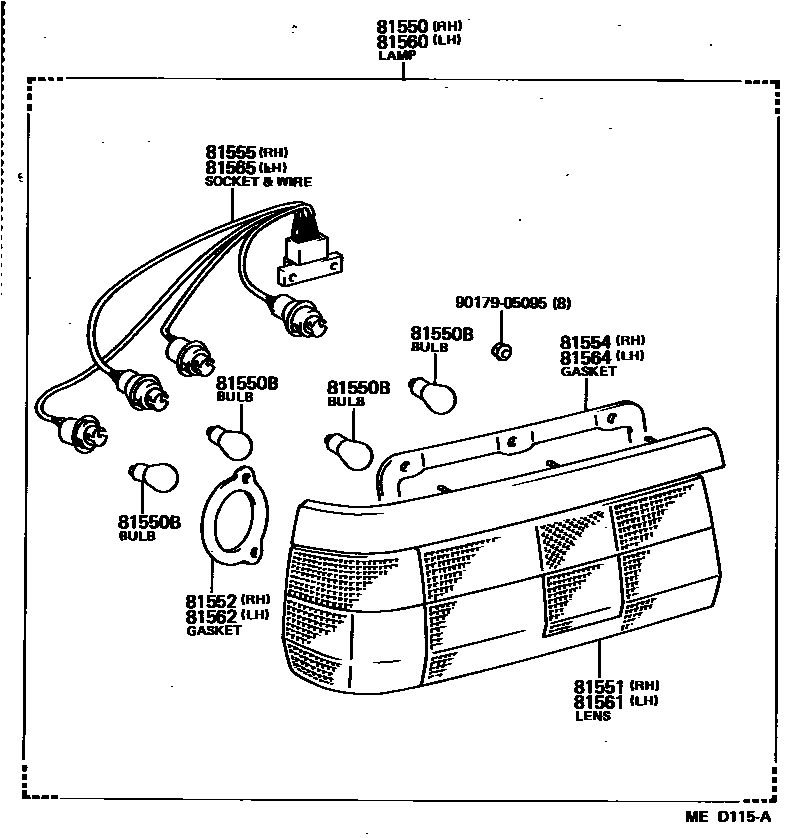

Toyota COROLLA 后组合灯 EPC diagram — MED115A
后组合灯 — MED115A (198305 – 198505)

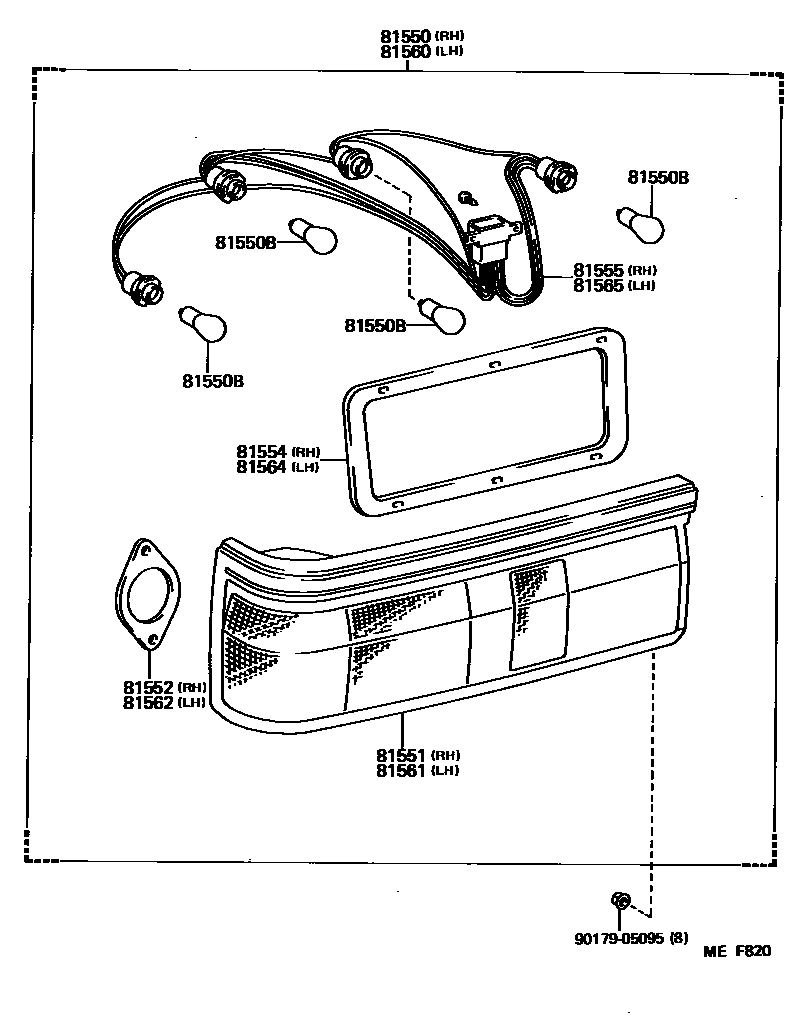

Toyota COROLLA 后组合灯 EPC diagram — MEF820
后组合灯 — MEF820 (198505 – 999999)

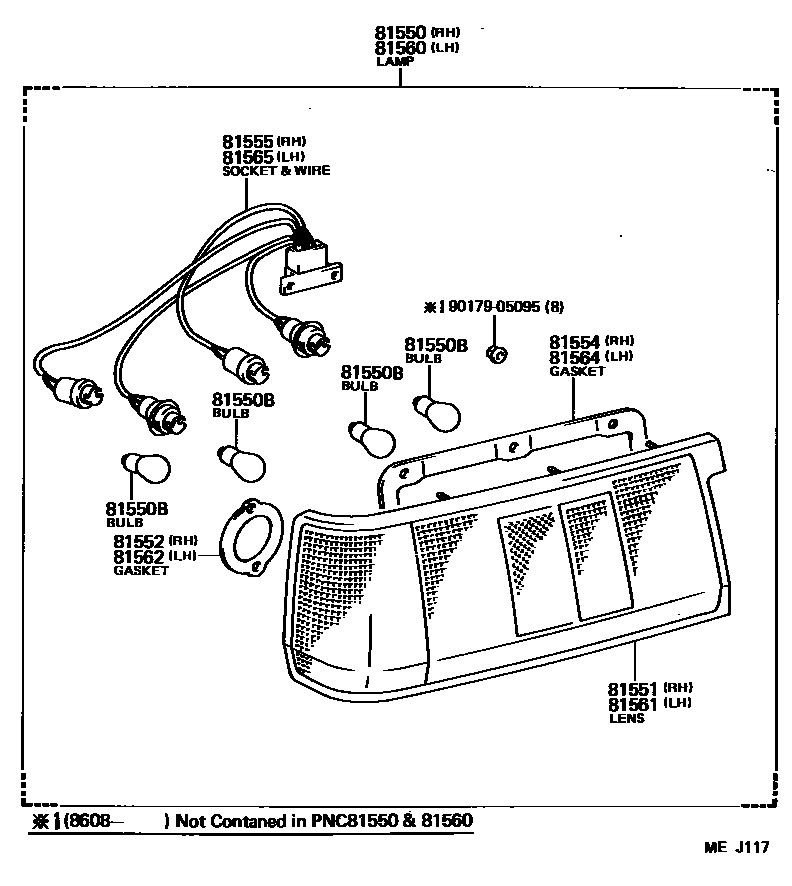

Toyota COROLLA 后组合灯 EPC diagram — MEJ117
后组合灯 — MEJ117 (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
81550Right rear combination light assembly81550-1A230 · 81550-1A231 · 81550-80161 · 81550-80163 · 81550-80164 · 81550-80166 · 81550-80167 · 81550-80204
81550BBulb (for rear combination lights)99132-11210 · 99132-11230 · 99132-21210
81551Right rear combination lamp shade81551-1A230 · 81551-1A231 · 81551-1A250 · 81551-1A260 · 81551-1A261 · 81551-1A280 · 81551-1A290
81552Right rear combination lamp shade gasket81552-1A260 · 81556-1A230
81554Right rear combination lamp body gasket81554-1A230 · 81554-1A260
81555Right rear combination lamp lamp holder and wiring harness sub-assembly81555-1A230 · 81555-1A231 · 81555-1A250 · 81555-1A260 · 81555-1A280
81560Left rear combination light assembly81560-1A231 · 81560-80166 · 81560-80168 · 81560-80169 · 81560-80171 · 81560-80172 · 81560-80209
81561Left rear combination lamp shade81561-1A230 · 81561-1A231 · 81561-1A250 · 81561-1A260 · 81561-1A261 · 81561-1A280 · 81561-1A290
81562Left rear combination lamp shade gasket81552-1A260 · 81556-1A230
81564Left rear combination lamp body gasket81554-1A230 · 81554-1A260
81565Left rear combination lamp lamp holder and wiring harness sub-assembly81555-1A230 · 81555-1A231 · 81555-1A250 · 81565-1A260 · 81565-1A280
