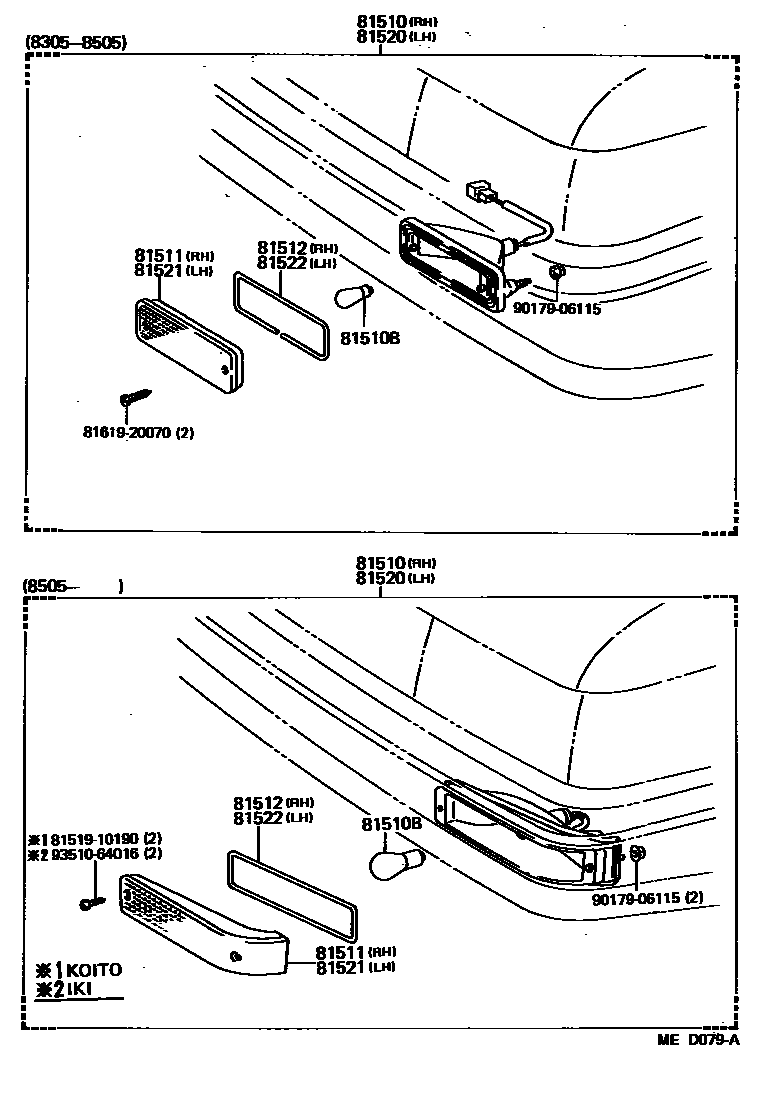

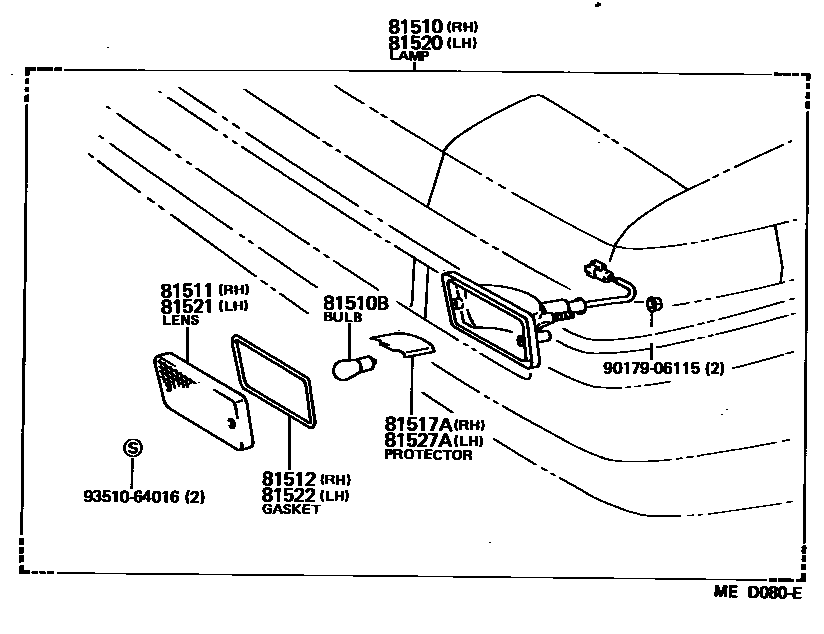

Toyota COROLLA 前转向灯 — Figure 8103
Toyota COROLLA EPC diagram 8103, 前转向灯, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81510 | Right front turn signal lamp assembly | 81510-19875 · 81510-80006 · 81510-80022 · 81510-80024 |
| 81510B | Bulb (for front turn signal lamp) | 99132-11210 · 99132-11230 · 99132-21270 |
| 81511 | Right front turn signal lamp cover | 81511-12420 · 81511-12470 · 81511-12480 · 81511-12490 · 81511-14170 |
| 81512 | Right front turn signal lamp housing gasket | 81512-12420 · 81512-12470 · 81512-12480 · 81512-14150 |
| 81517A | Right front turn signal light protective cover | 81517-14170 |
| 81520 | Left front turn signal lamp assembly | 81520-19875 · 81520-80006 · 81520-80022 · 81520-80024 |
| 81521 | Left front turn signal lamp cover | 81521-12400 · 81521-12450 · 81521-12460 · 81521-12470 · 81521-14170 |
| 81522 | Left front turn signal lamp housing gasket | 81512-12420 · 81512-12470 · 81512-12480 · 81512-14150 |
| 81527A | Left front turn signal light protective cover | 81517-14170 |
