Toyota COROLLA 前防护条 — Figure 7502

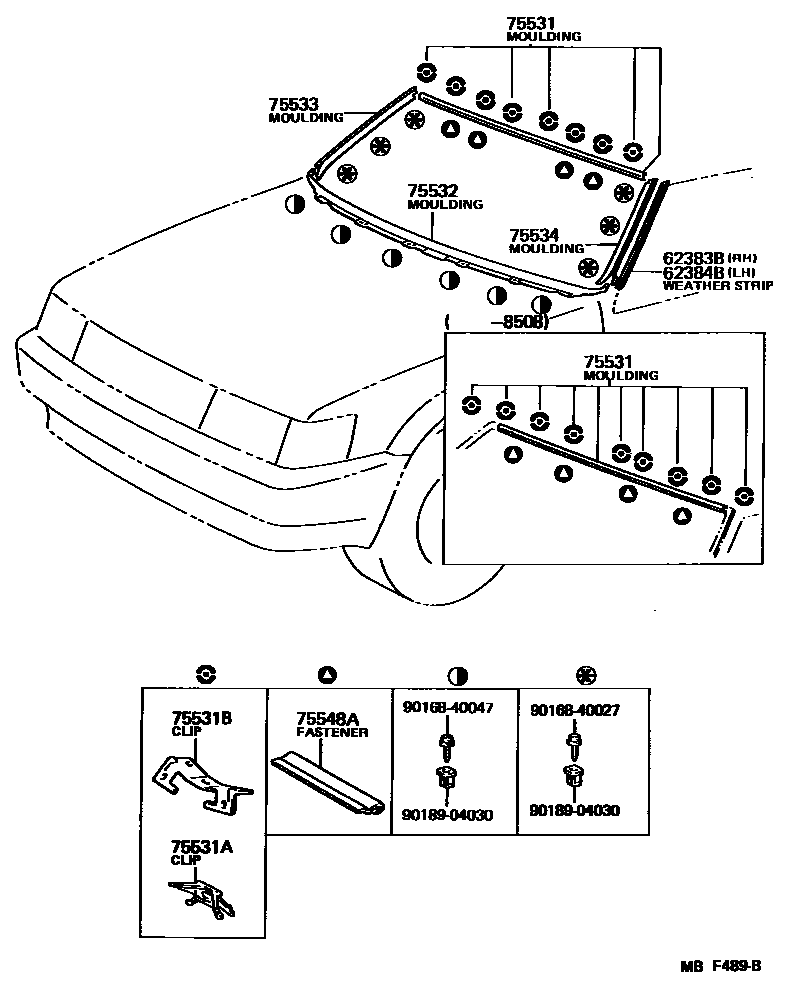

Toyota COROLLA EPC diagram 7502, 前防护条, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62383B | Roof right side rail seal strip | 62383-12010 |
| 62384B | Roof left side rail seal strip | 62383-12010 · 62384-12010 |
| 75531 | Windshield outer protective strip | 75531-12270 · 75531-12271 |
| 75531A | No. 1 windshield protection strip fixing clip | 75545-12050 |
| 75531B | No. 2 windshield protection strip fixing clip | 75546-12030 · 75546-14080 |
| 75532 | Lower windshield protection strip | 75535-12130 · 75535-12160 |
| 75533 | Windshield right outer protective strip | 75533-12200 · 75533-12240 |
| 75534 | Windshield left outer protective strip | 75534-12130 · 75534-12170 |
| 75548A | No. 1 windshield outer protective strip fasteners | 75548-12060 |
