Toyota COROLLA battery holder — Figure 7402

Toyota COROLLA EPC diagram 7402, battery holder, with 1 images and 3 PNC and OE references.

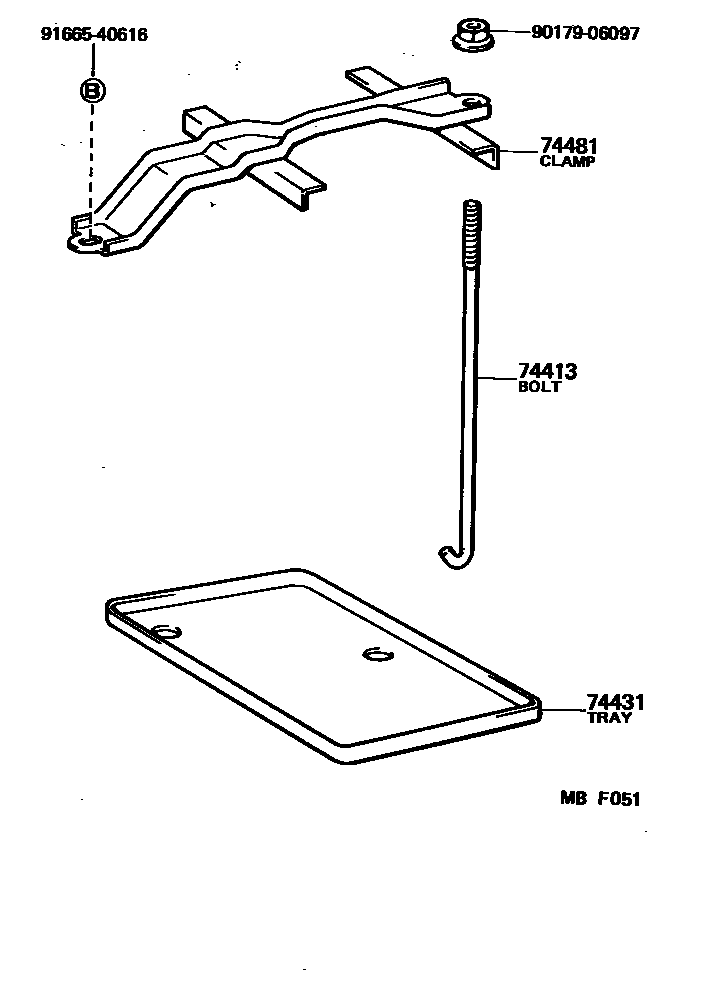

Toyota COROLLA battery holder EPC diagram — MBF051
battery holder — MBF051 (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
74413Battery clamp bolt74451-14010
74431battery tray74431-14010 · 74431-14020 · 74431-14030
74481Battery fixing clip74404-12190 · 74404-12200 · 74404-12210
