Toyota COROLLA 安全带和儿童保护座椅 — Figure 7104

Toyota COROLLA EPC diagram 7104, 安全带和儿童保护座椅, with 2 images and 4 PNC and OE references.

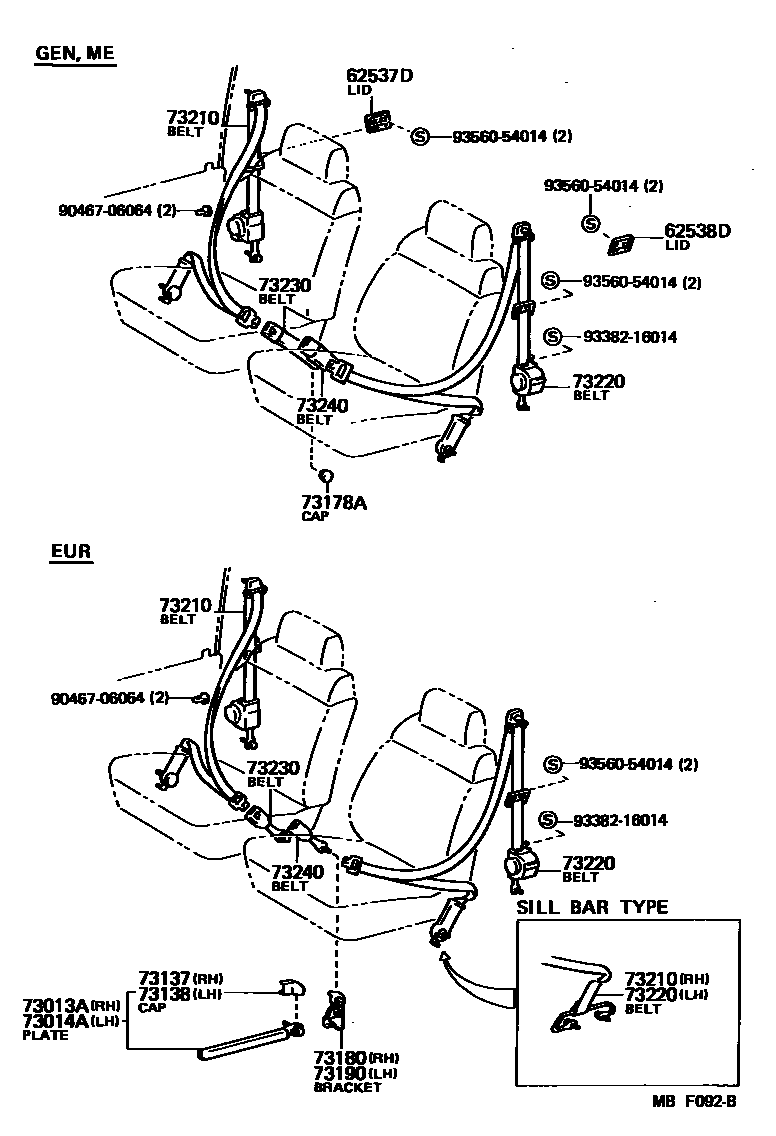

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — MBF092B
安全带和儿童保护座椅 — MBF092B (198305 – 999999)

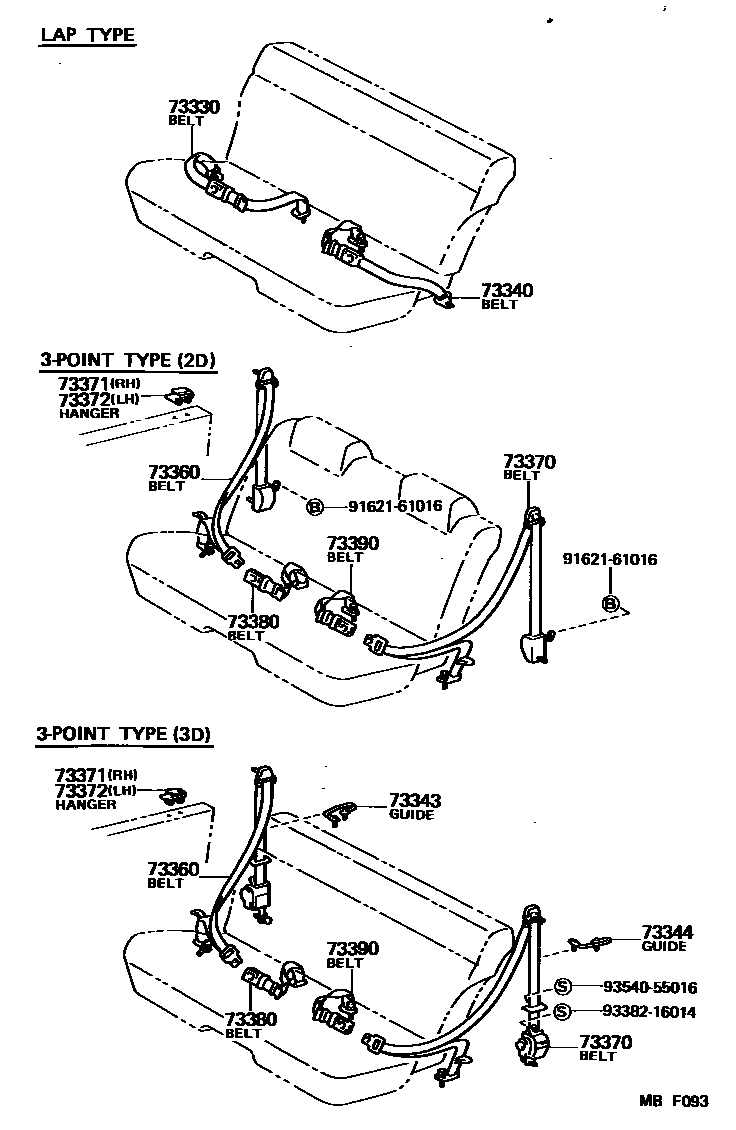

Toyota COROLLA 安全带和儿童保护座椅 EPC diagram — MBF093
安全带和儿童保护座椅 — MBF093 (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
73180Right seat belt inner anchor bracket assembly73011-12010
73190Left side seat belt inner anchor bracket assembly73012-12010
73343Rear right seat shoulder belt guide73343-12010
73344Rear left seat shoulder belt guide73344-12010
