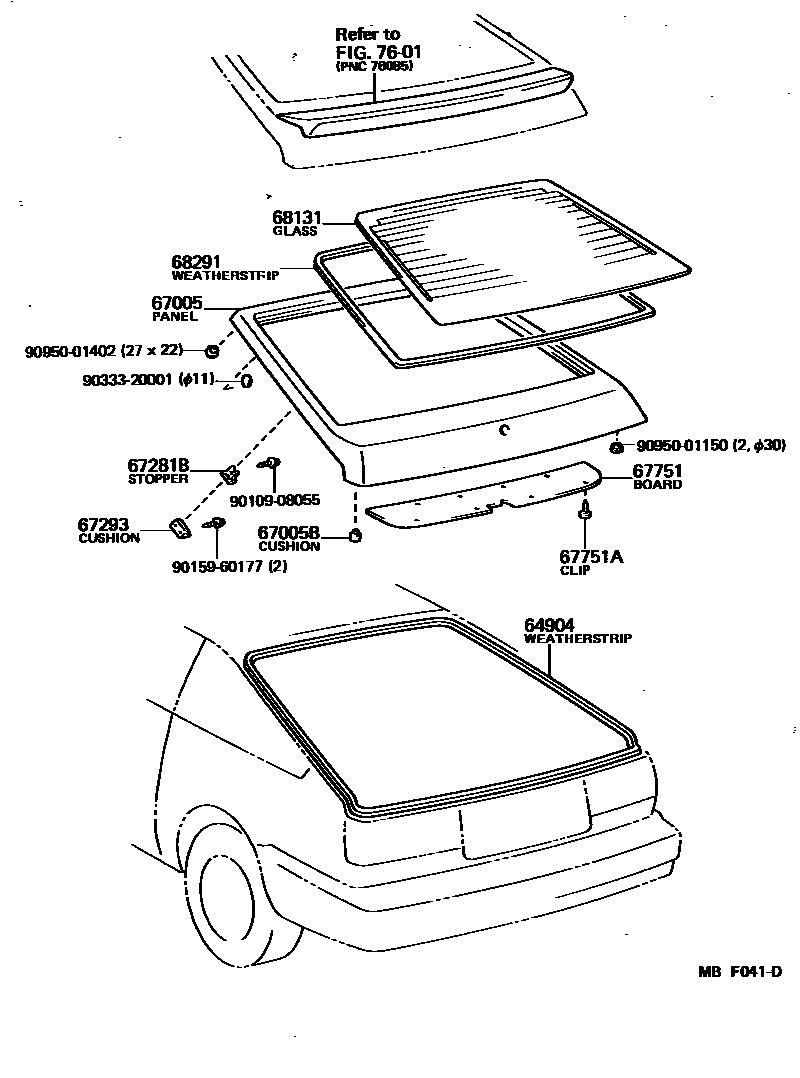

Toyota COROLLA 背门板和背门玻璃 — Figure 6708
Toyota COROLLA EPC diagram 6708, 背门板和背门玻璃, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 64904 | Rear door sealing strip sub-assembly | 67881-12070 · 67881-12150 |
| 67005 | Rear door panel sub-assembly | 67005-12330 · 67005-12331 · 67005-12340 · 67005-12350 · 67005-12351 · 67005-12360 · 67005-12361 · 67005-12600 · 67005-12601 · 67005-12610 · 67005-12770 · 67005-12771 · 67005-12780 · 67005-12781 |
| 67005B | Cushion pad (for back door panel) | 90541-09032 |
| 67281B | Back door lower block | 67281-12010 |
| 67293 | Back door lower block cushion | 67293-12010 |
| 68131 | back door glass | 68131-12140 · 68131-12150 · 68131-12180 |
| 68291 | Rear door glass seal strip | 68291-12070 |
