Toyota COROLLA 杂物箱板和行李箱垫 — Figure 6403

Toyota COROLLA EPC diagram 6403, 杂物箱板和行李箱垫, with 1 images and 12 PNC and OE references.

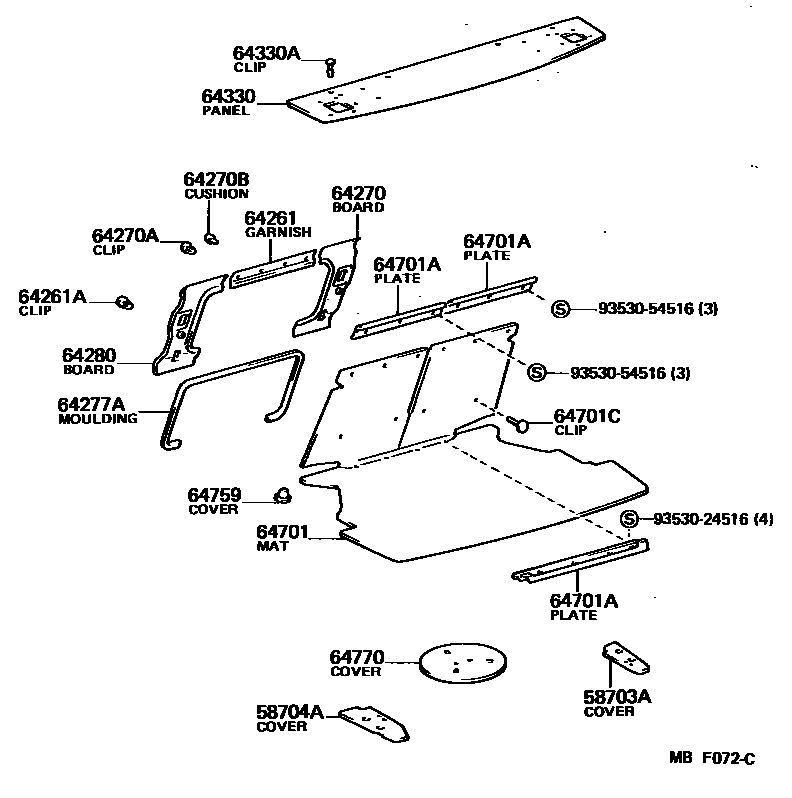

Toyota COROLLA 杂物箱板和行李箱垫 EPC diagram — MBF072C
杂物箱板和行李箱垫 — MBF072C (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
58703ATrunk door right side decorative cover sub-assembly58703-12010
58704ALuggage door left decorative cover sub-assembly58704-12010 · 58704-12011
64261Cabin partition decoration parts64261-12021
64261AClip (for cabin partition decoration)90467-06046
64270Right compartment partition assembly64271-12081 · 64271-12091
64270AClip (for fixing the compartment partition)90467-06046
64270BCushion pad (for cabin partition)90541-09010
64277ACar partition decorative strip64277-12021
64280Left compartment partition assembly64272-12021 · 64272-12031
64701Luggage pad assembly64701-12060
64701ASuitcase fixing plate58573-12040
64770Spare tire cover assembly64770-12030 · 64770-12090
