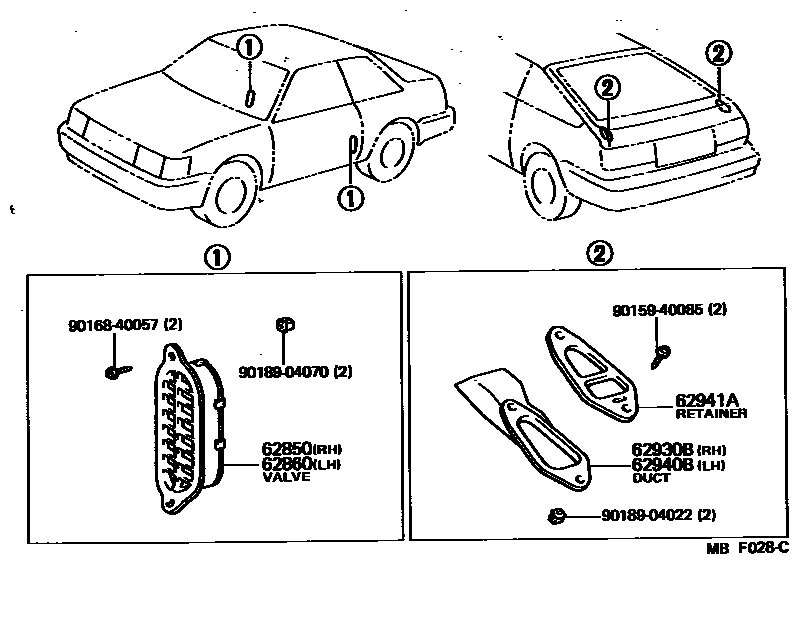

Toyota COROLLA 车侧通风装置 — Figure 6102
Toyota COROLLA EPC diagram 6102, 车侧通风装置, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 62850 | Right compartment pressure reducing valve assembly | 62850-12040 |
| 62860 | Left compartment pressure reducing valve assembly | 62860-12050 |
| 62930B | Right side ventilation duct assembly | 62903-12060 |
| 62940B | Left side ventilation duct assembly | 62904-12070 |
| 62941A | Side ventilation duct fixings | 62941-12100 |
