Toyota COROLLA 前围板和挡风玻璃 — Figure 5503

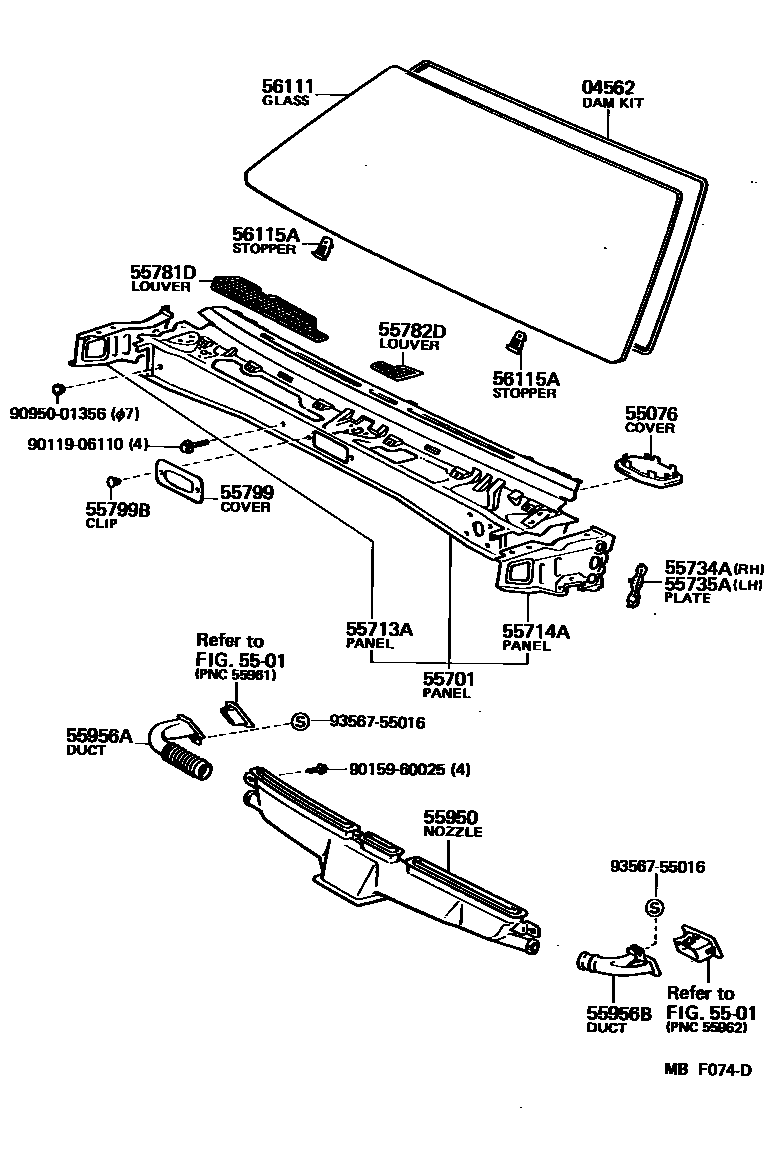

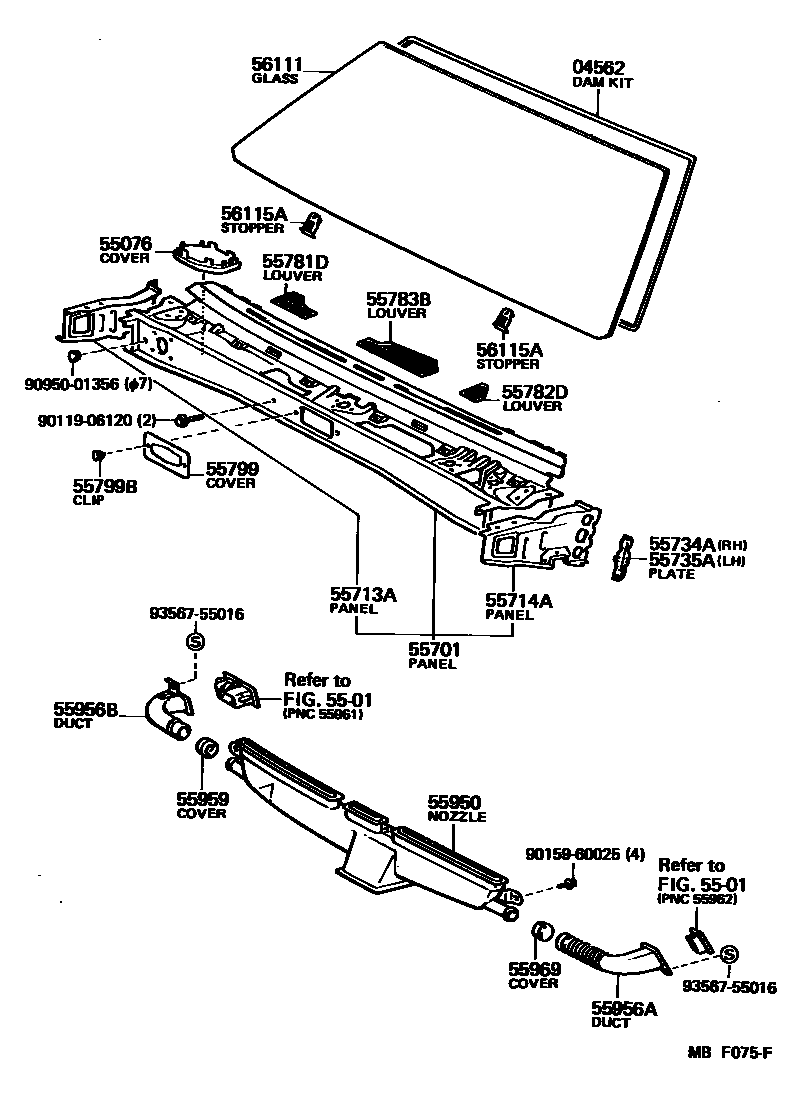

Toyota COROLLA EPC diagram 5503, 前围板和挡风玻璃, with 2 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04562 | Windshield sealing strip assembly | 04562-30030 · 04562-30040 |
| 55076 | Heater air duct hole cover | 55077-12040 · 55077-12050 |
| 55701 | Front apron sub-assembly | 55700-12230 · 55700-12240 · 55700-12250 · 55700-12260 · 55700-12410 · 55700-12420 · 55700-12440 |
| 55713A | Right front wall upper side panel | 55713-12050 |
| 55714A | Left front wall upper side panel | 55714-12050 |
| 55734A | Right waterproof cover | 55734-12060 |
| 55735A | Left waterproof cover panel | 55735-12060 |
| 55781D | Ventilation grille on right front apron | 55781-12120 · 55783-12150 |
| 55782D | Ventilation grille on left front apron | 55782-12010 · 55782-12040 · 55784-12010 |
| 55783B | Ventilation grille on center cowl No. 1 | 55784-12020 · 55784-12050 |
| 55799 | wiper motor cover | 55793-24010 |
| 55799B | Wiper motor cover outer clip | 90467-08023 |
| 55950 | Defroster nozzle assembly | 55950-12080 · 55950-12090 |
| 55956A | Side defroster No. 1 nozzle air duct | 55970-12050 · 55970-12060 |
| 55956B | Side defroster No. 2 nozzle air duct | 55980-12040 · 55980-12050 |
| 55959 | Defroster No. 1 nozzle opening cover | 55959-14010 |
| 55969 | Defroster No. 2 nozzle opening cover | 55959-14010 |
| 56111 | windshield | 56111-12480 · 56111-12490 · 56111-12500 · 56111-12520 |
| 56115A | Windshield block No. 1 | 56115-12010 · 56115-12020 |
