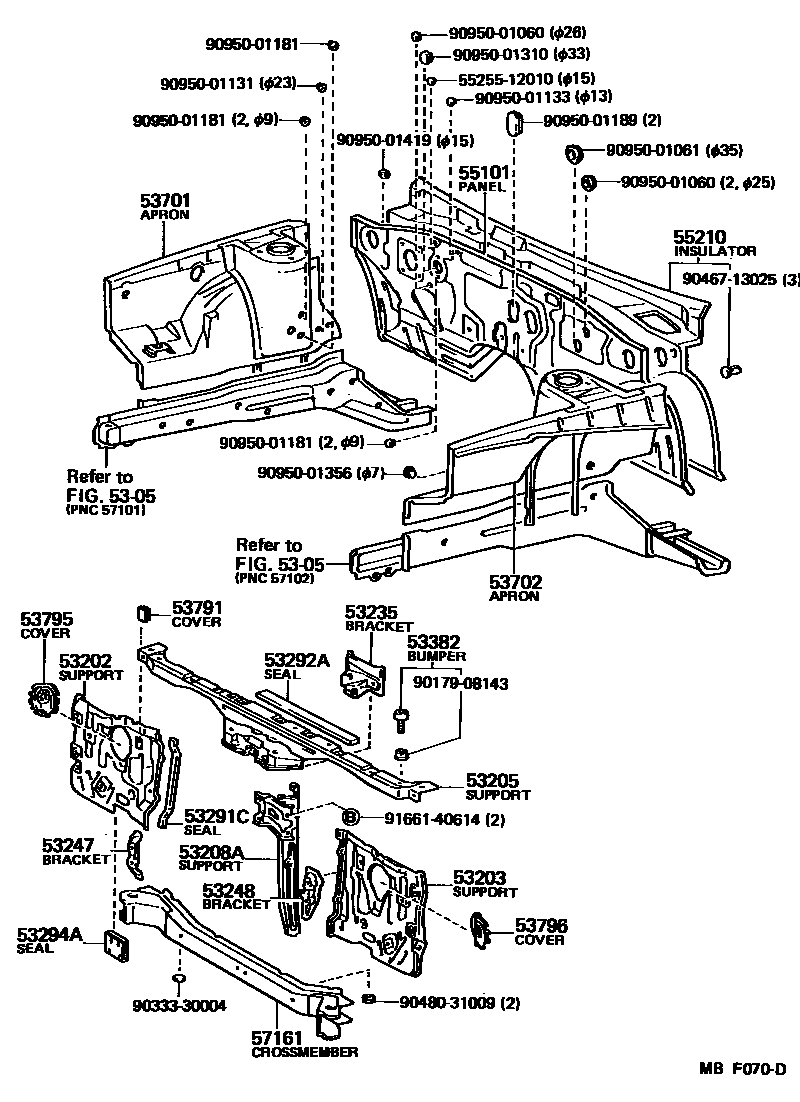

Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304
Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 19 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53202 | Radiator right side bracket sub-assembly | 53211-12210 · 53211-12220 |
| 53203 | Radiator left bracket sub-assembly | 53212-12190 · 53212-12200 |
| 53205 | Radiator upper bracket sub-assembly | 53216-12903 · 53216-12904 · 53216-12927 |
| 53208A | Engine cover lock bracket sub-assembly | 53208-12220 · 53208-12221 · 53208-12230 · 53208-12241 · 53208-12290 · 53208-12291 |
| 53235 | Speaker mounting bracket | 53235-12010 |
| 53247 | Right headlight inner mounting bracket | 53271-12030 |
| 53248 | Left headlight inner mounting bracket | 53272-12020 |
| 53291C | Radiator bracket to frame seal | 53291-12090 |
| 53292A | Radiator upper bracket seal | 53292-12010 |
| 53294A | Cold air intake pipe seal | 53294-12030 · 53294-12040 |
| 53382 | Engine cover front buffer block | 53382-12050 |
| 53701 | Right front fender fender sub-assembly | 53701-12913 · 53701-12915 · 53701-12916 · 53701-12917 |
| 53702 | Left front fender fender sub-assembly | 53702-12921 · 53702-12922 · 53702-12923 |
| 53791 | Air conditioner air inlet cover | 53791-12040 |
| 53795 | Right headlight wiring harness hole cover | 53795-12020 |
| 53796 | Left headlight wiring harness hole cover | 53796-12010 |
| 55101 | Front apron sub-assembly | 55101-12908 · 55101-12909 · 55101-12910 · 55101-12911 |
| 55210 | Front wall insulation pad assembly | 55210-12200 · 55210-12230 |
| 57161 | front cross member | 57161-12904 · 57161-12905 |
