Toyota COROLLA 发动机盖锁和铰链 — Figure 5303

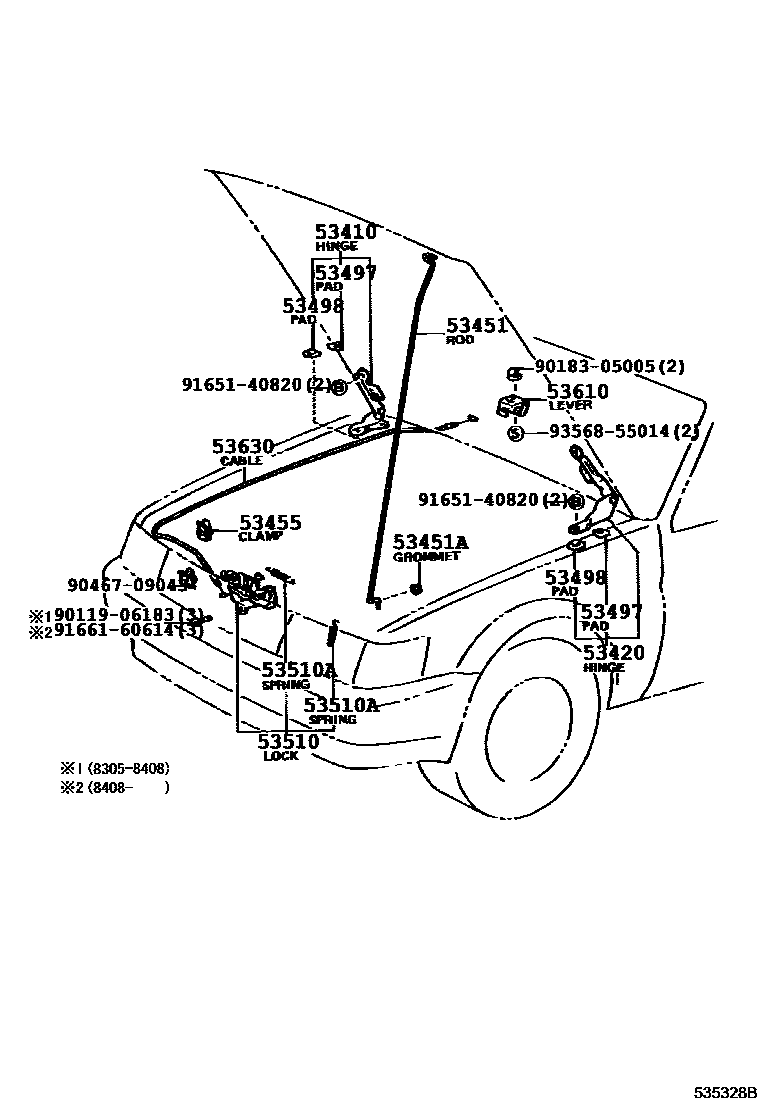

Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-12060 · 53410-12070 · 53410-12090 · 53410-12100 |
| 53420 | Engine cover left hinge assembly | 53420-12050 · 53420-12060 · 53420-12080 · 53420-12090 |
| 53451 | Engine cover support rod | 53451-12030 |
| 53451A | Gasket (for engine cover support rod) | 90480-15002 |
| 53455 | Engine cover support rod clip | 53455-12030 |
| 53497 | No. 1 engine cover hinge gasket | 53497-12010 · 53497-12020 |
| 53498 | No. 2 engine cover hinge gasket | 53498-12010 · 53498-12020 |
| 53510 | Engine cover lock assembly | 53510-12240 · 53510-12250 · 53510-12270 · 53510-12320 · 53510-12330 |
| 53510A | Tension spring (for hood lock) | 90506-09031 · 90506-09032 · 90506-20008 · 90506-20054 |
| 53630 | Engine hood lock control cable assembly | 53630-12190 · 53630-12220 |
