Toyota COROLLA radiator grille — Figure 5301

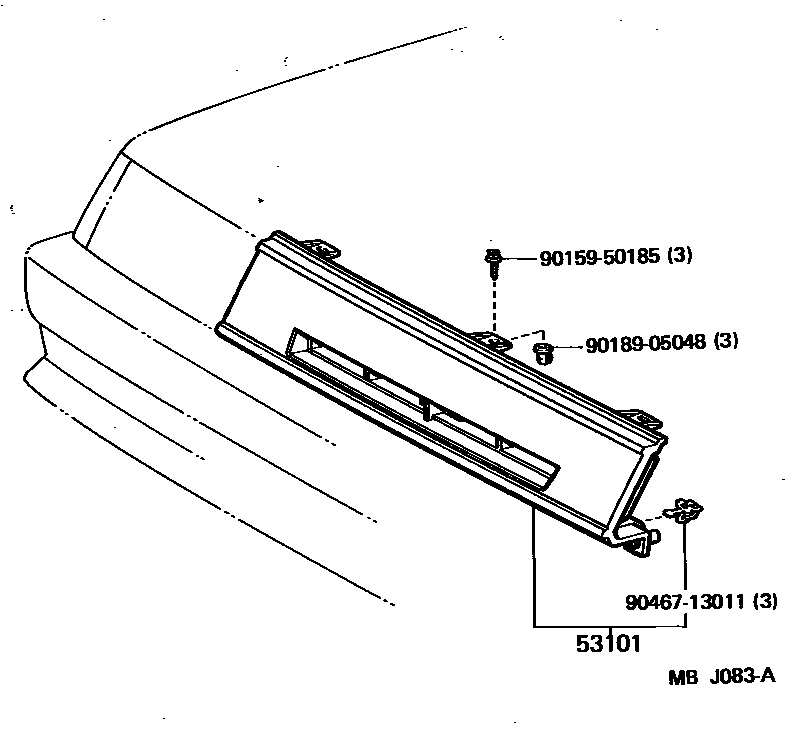

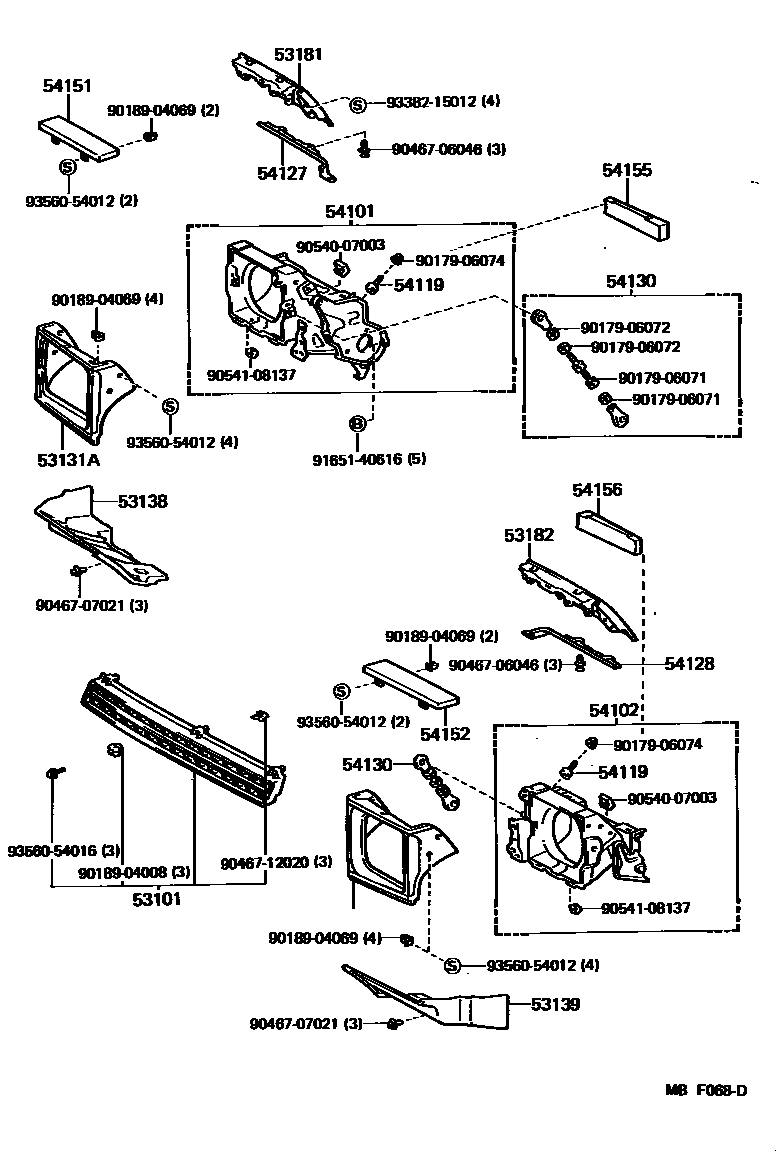

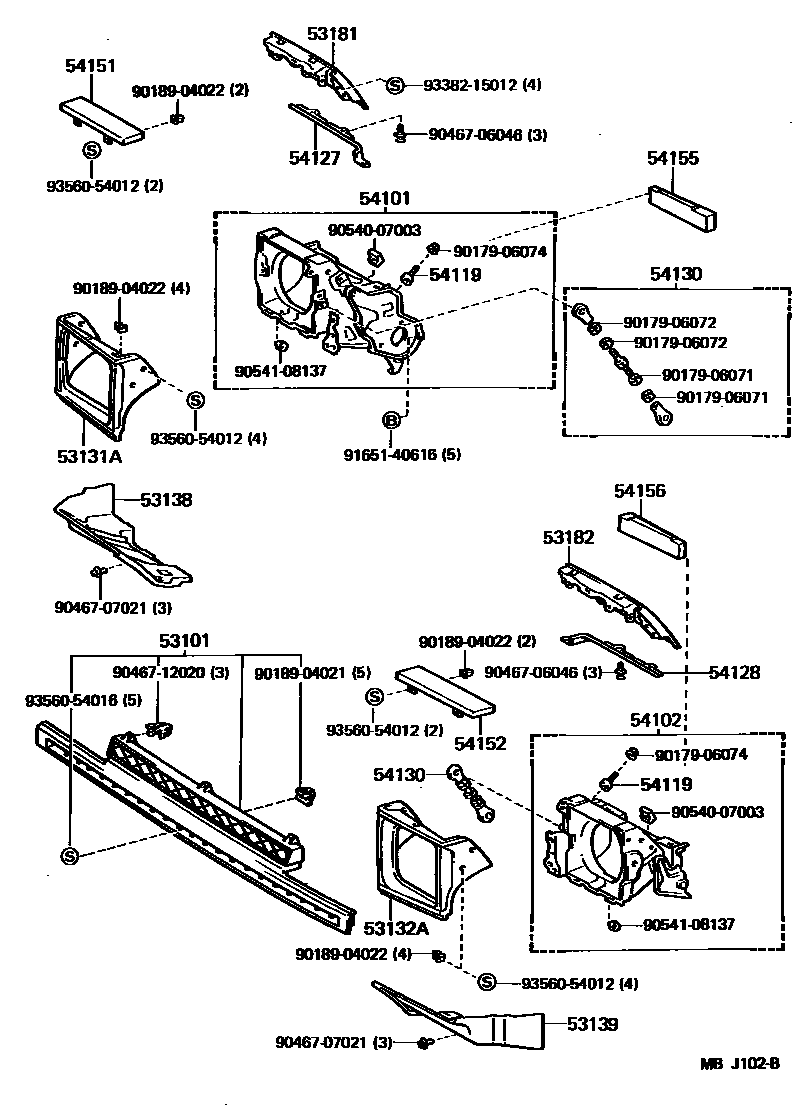

Toyota COROLLA EPC diagram 5301, radiator grille, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53101 | Radiator grille sub-assembly | 53100-12220 · 53100-12240 · 53100-12310 |
| 53131A | Right headlight lampshade | 53131-12330 |
| 53132A | Left headlight lampshade | 53132-12240 |
| 53138 | Right headlight guard | 53138-12060 |
| 53139 | Left headlight guard | 53139-12130 |
| 53181 | Right headlight cover | 53181-12020 |
| 53182 | Left headlight cover | 53182-12020 |
| 54101 | Right telescopic headlight bracket sub-assembly | 54110-12010 · 54110-12011 · 54110-12012 |
| 54102 | Left telescopic headlight bracket sub-assembly | 54120-12010 · 54120-12011 · 54120-12012 |
| 54119 | Retractable headlight linkage stop | 54119-14010 · 54119-14020 |
| 54127 | No. 2 right retractable headlight protector | 54127-12010 |
| 54128 | No. 2 left retractable headlight protector | 54128-12010 |
| 54130 | Telescopic headlight pole assembly | 54130-12010 |
| 54151 | Right retractable headlight cover trim | 54107-12010 · 54151-12010 · 54151-12011 |
| 54152 | Retractable headlight cover trim, left | 54108-12010 · 54152-12010 · 54152-12011 |
| 54155 | No. 3 right retractable headlight protector | 54155-12020 |
| 54156 | No. 3 left retractable headlight protector | 54156-12020 |
