Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

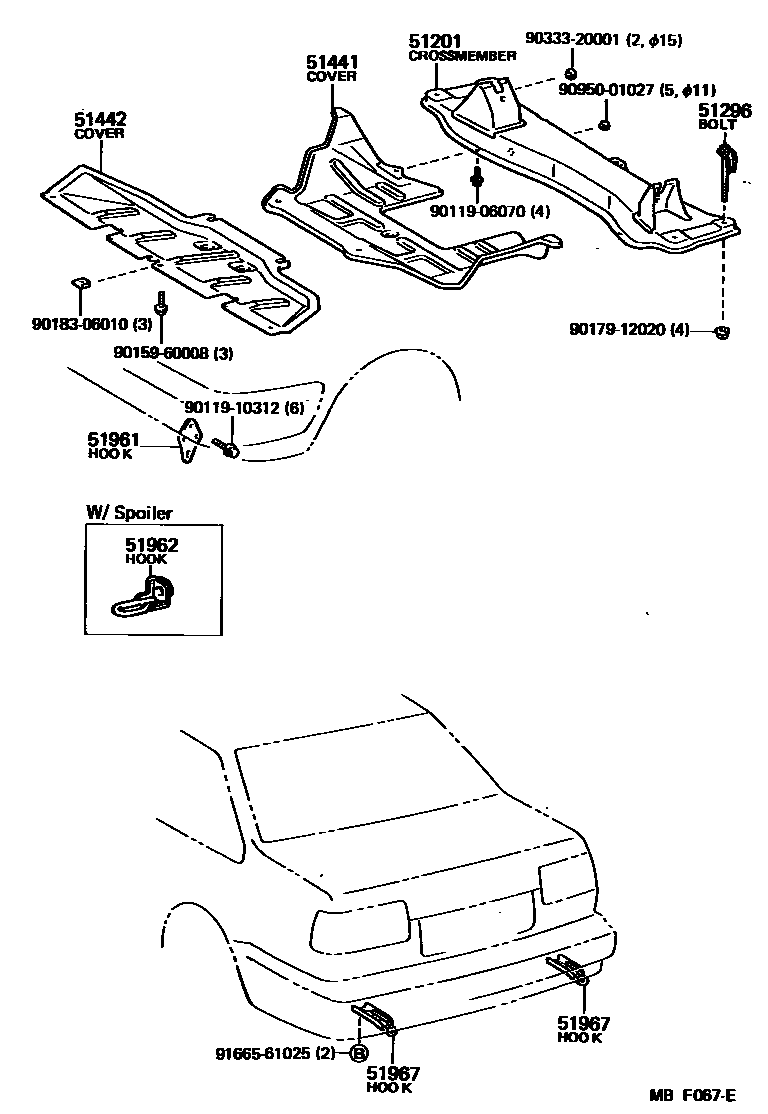

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-12200 · 51201-12210 · 51201-12220 |
| 51296 | Front suspension cross member mounting bolts | 51296-12011 · 51296-14030 |
| 51441 | No. 1 engine bottom cover | 51441-12110 |
| 51442 | No. 2 engine bottom cover | 51442-12040 |
| 51961 | No. 1 hook | 51963-12060 · 51963-12070 · 51963-12100 · 51963-12150 |
| 51962 | Hook No. 2 | 51960-12010 |
| 51967 | Rear transport hook | 51095-12020 |
