Toyota COROLLA 后桥壳和差速器 — Figure 4101
Toyota COROLLA EPC diagram 4101, 后桥壳和差速器, with 5 images and 44 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

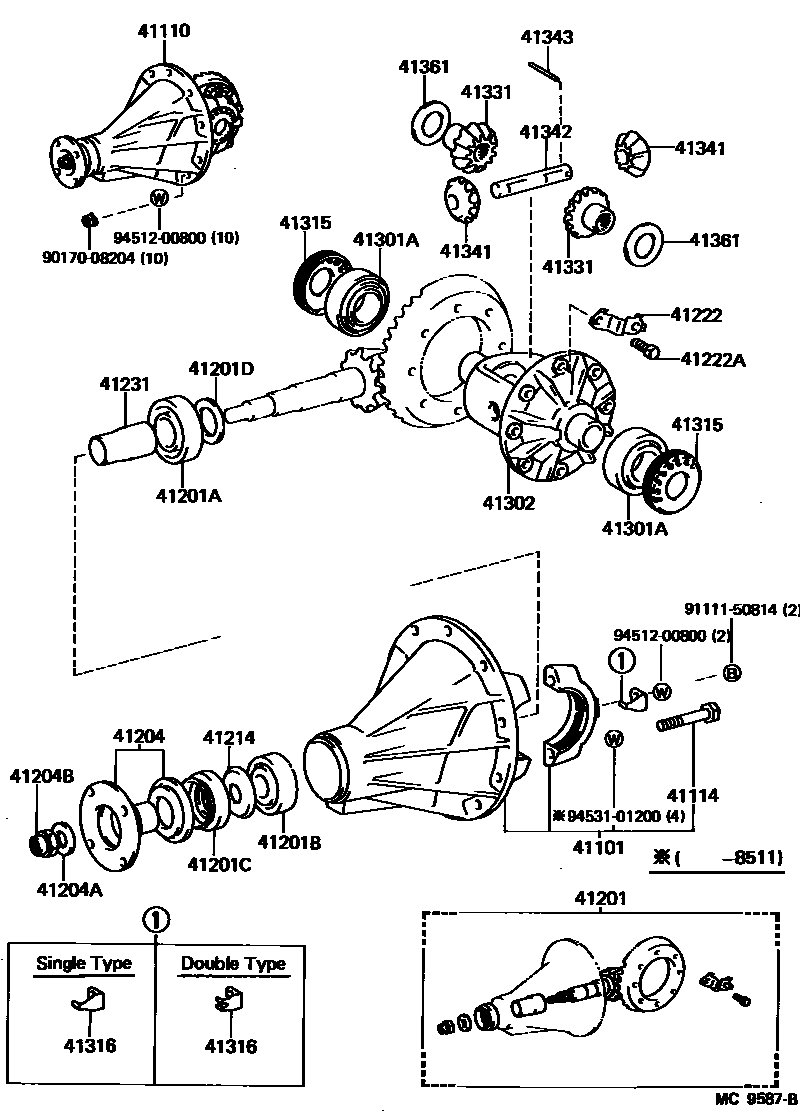

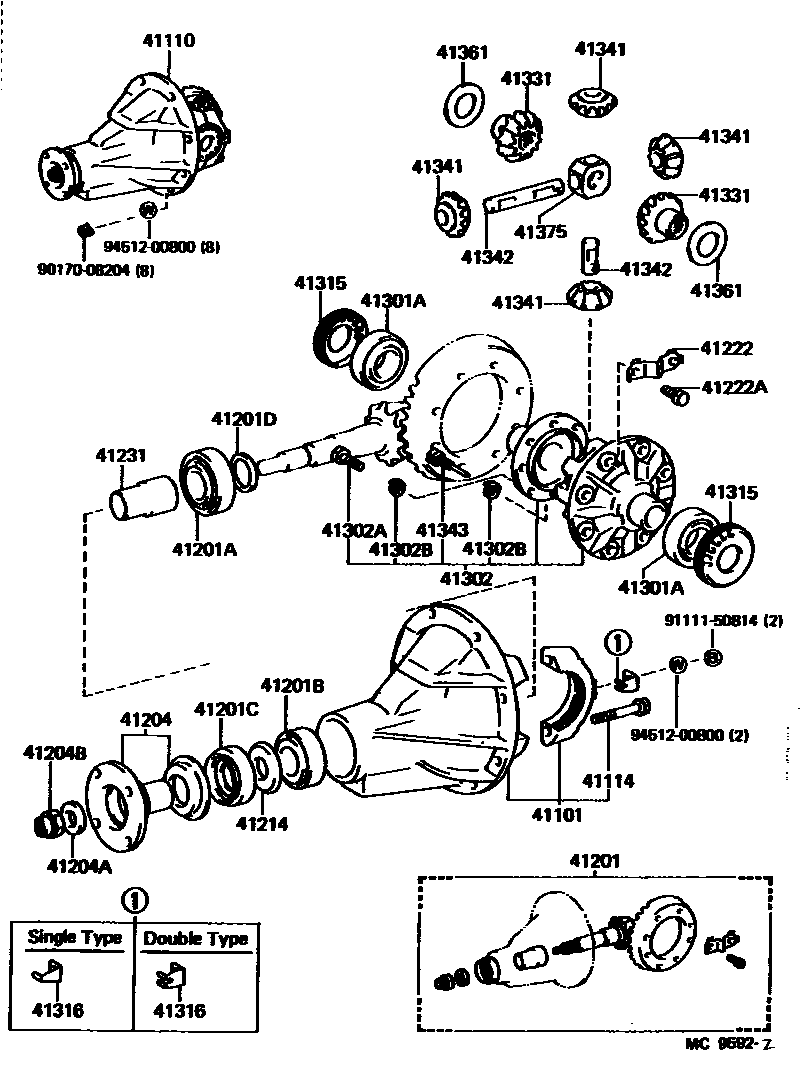

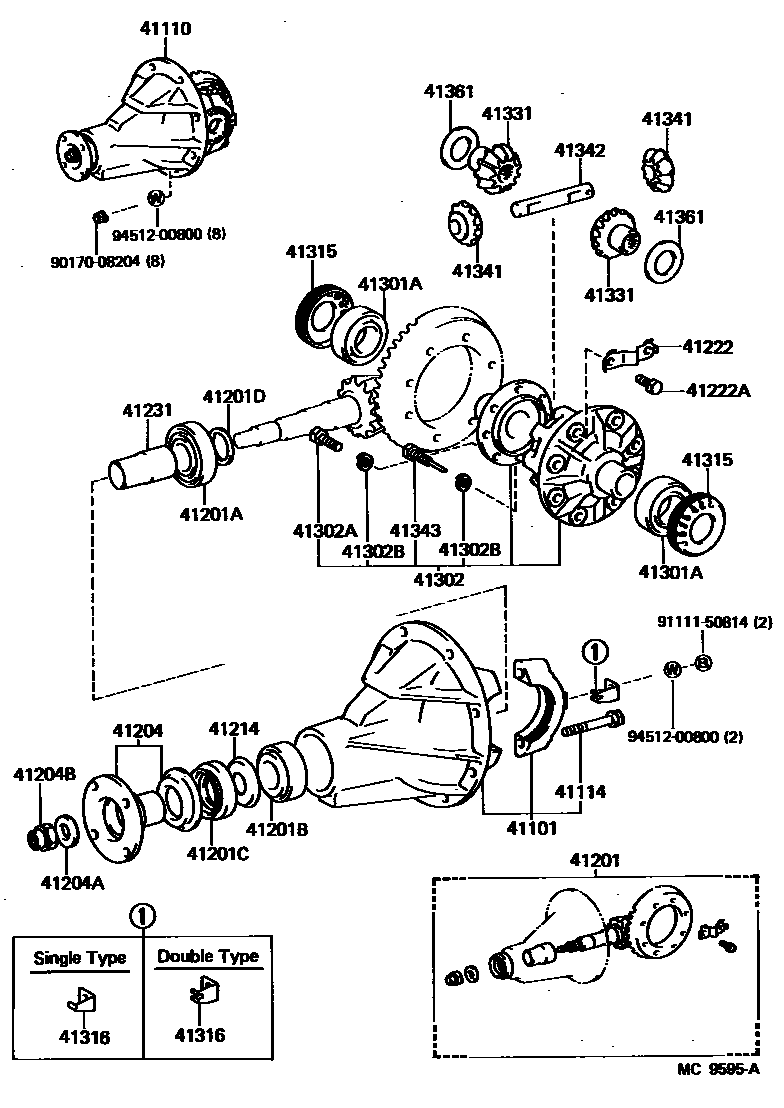

| 04412 | Rear differential carrier gasket assembly | 04412-12020 · 04412-14020 · 04412-22010 |
| 41101 | Rear differential bracket sub-assembly | 41101-20011 · 41101-20020 |
| 41110 | Rear differential bracket assembly | 41110-12023 · 41110-12024 · 41110-12110 · 41110-12200 · 41110-12201 · 41110-12210 · 41110-12211 · 41110-20261 · 41110-20262 · 41110-22013 |
| 41110A | Bolt No. 1 (for rear differential case assembly) | 90116-08235 · 90116-08236 |
| 41114 | Rear differential bearing cap bolts | 90101-12371 · 90105-10008 · 90105-12114 |
| 41201 | Rear differential final drive gear assembly | 41201-19188 · 41201-19525 · 41201-29207 · 41201-29357 |
| 41201A | Rear tapered bearing (for rear driving pinion) | 90368-33021 · 90368-34049 |
| 41201B | Front roller tapered bearing (for rear drive pinion) | 90368-30002 |
| 41201C | Oil seal (for rear differential case) | 90311-38014 · 90311-38015 |
| 41201D | Flat washer (for rear differential drive pinion) | 90201-35396 · 90201-35397 · 90201-35398 · 90201-35399 · 90201-35400 · 90201-35401 · 90201-35402 · 90201-35403 · 90201-35404 · 90201-35435 · 90201-35436 · 90201-35437 · 90201-35438 · 90201-35439 · 90201-35440 · 90209-33038 · 90209-33039 · 90209-33040 · 90209-33041 · 90209-33042 · 90209-33043 · 90209-33044 · 90209-33045 · 90209-33046 |
| 41204 | Rear driving pinion rear coupling flange sub-assembly | 41204-20012 · 41204-20020 |
| 41204A | Flat washer (for rear drive pinion) | 90201-18485 |
| 41204B | Nut (for rear driving pinion) | 90179-18001 |
| 41214 | Rear differential drive pinion oil retaining ring | 41214-20020 |
| 41222 | Rear differential ring gear fixing bolt locking plate | 41222-20021 · 41222-28010 · 41222-30030 |
| 41222A | Bolt (for rear differential ring gear assembly) | 90101-11353 · 90109-10015 |
| 41231 | Rear differential drive pinion bearing spacer | 41231-20020 · 41231-22010 |
| 41301A | Bearings (for rear differential housing) | 90368-34001 · 90368-34020 · 90368-34039 · 90368-41050 · 90368-41053 |
| 41302 | Rear differential housing sub-assembly | 41301-22013 · 41301-22022 · 41302-14011 · 41311-22030 · 41311-22031 |
| 41302A | Bolt (for rear differential case) | 90101-08241 · 90101-09370 |
| 41302B | Spring washer (for rear differential case) | 90204-08024 · 90206-09044 |

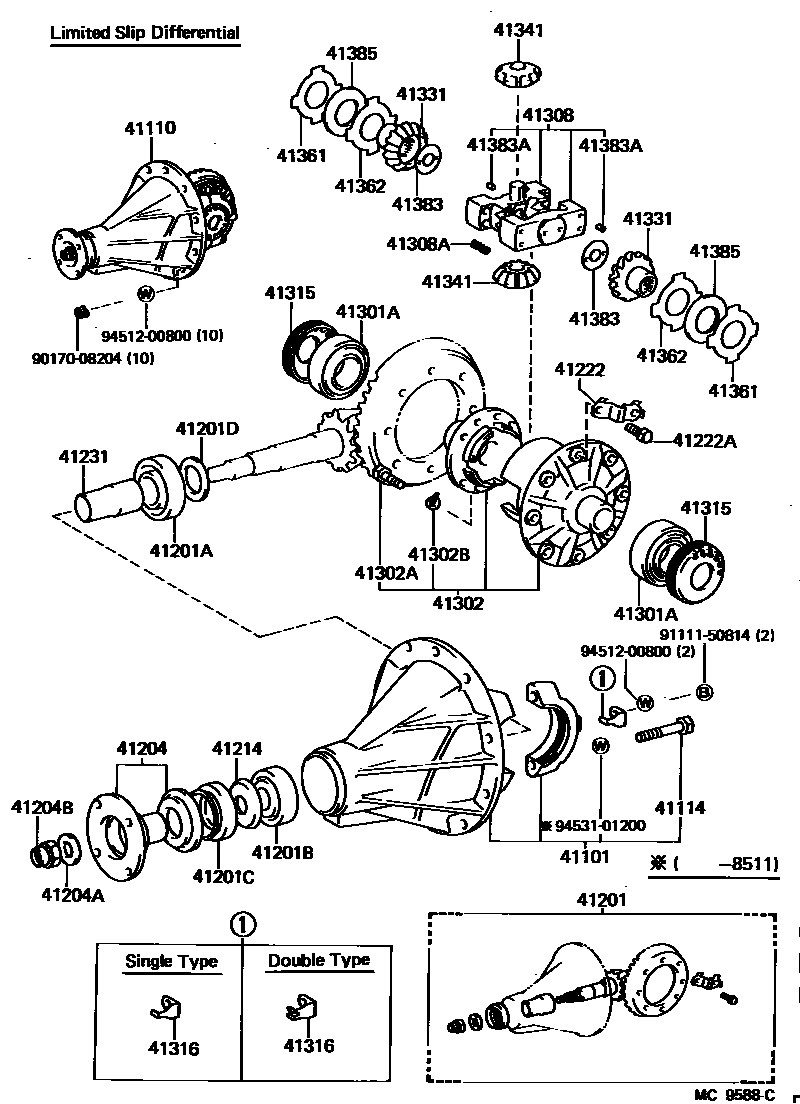

| 41308 | clutch components | 41307-14011 |
| 41308A | Compression spring (for clutch member) | 90501-23474 |
| 41315 | Rear differential bearing adjusting nut | 41315-20011 · 41315-22011 |
| 41316 | Rear differential bearing adjustment nut locking piece | 41316-20010 · 41316-20020 · 41316-22011 · 41317-22011 |
| 41331 | rear differential side gear | 41331-14010 · 41331-14011 · 41331-22011 · 41331-22020 · 41331-22021 |
| 41341 | rear differential pinion | 41341-12030 · 41341-14020 · 41341-22011 · 41341-22020 |
| 41342 | Rear differential planetary gear shaft | 41342-20010 · 41342-20020 · 41342-22010 |
| 41343 | Rear differential planetary gear pin | 41343-22010 · 90250-04193 |
| 41361 | No. 1 rear differential half gear thrust washer | 41361-12070 · 41361-12080 · 41361-12090 · 41361-12100 · 41361-12110 · 41361-12120 · 41361-14012 · 41361-14022 · 41361-14032 · 41361-14042 · 41361-14060 · 41361-14070 · 41361-22020 · 41361-22030 · 41361-22040 · 41361-22140 · 41361-22150 · 41361-22160 |
| 41362 | No. 2 rear differential half gear thrust washer | 41361-14051 |
| 41375 | Rear differential planetary gear shaft support | 41375-20010 |
| 41383 | Clutch member thrust washer | 41383-14010 |
| 41383A | Stop pin (for clutch member thrust washer) | 90250-05202 |
| 41385 | clutch plate | 41385-14010 |
| 41991 | Rear differential warning plate | 41991-60010 |

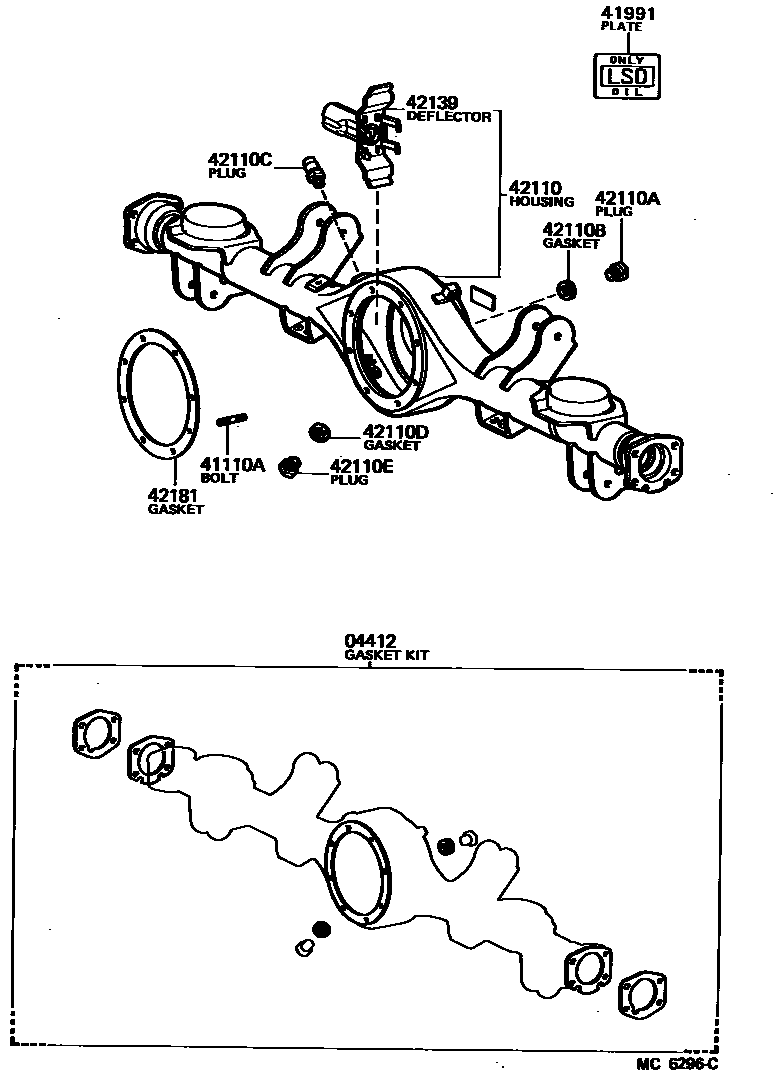

| 42110 | Rear axle housing assembly | 42110-12150 · 42110-12180 · 42110-12181 |
| 42110A | Screw plug (for rear axle housing oil filling port) | 90341-18006 · 90341-18049 |
| 42110B | Gasket (for rear axle housing oil filling plug) | 12157-10010 |
| 42110C | Breather plug (for rear axle housing) | 90930-03031 |
| 42110D | Gasket (for rear axle housing drain plug) | 12157-10010 |
| 42110E | Screw plug (for rear axle housing oil drain port) | 90341-18057 |
| 42139 | Rear axle housing oil baffle | 42108-12020 · 42108-14010 |
| 42181 | Rear differential case gasket | 42181-20010 · 42181-22010 |
