Toyota COROLLA Propeller Shaft & Universal Joint — Figure 3701

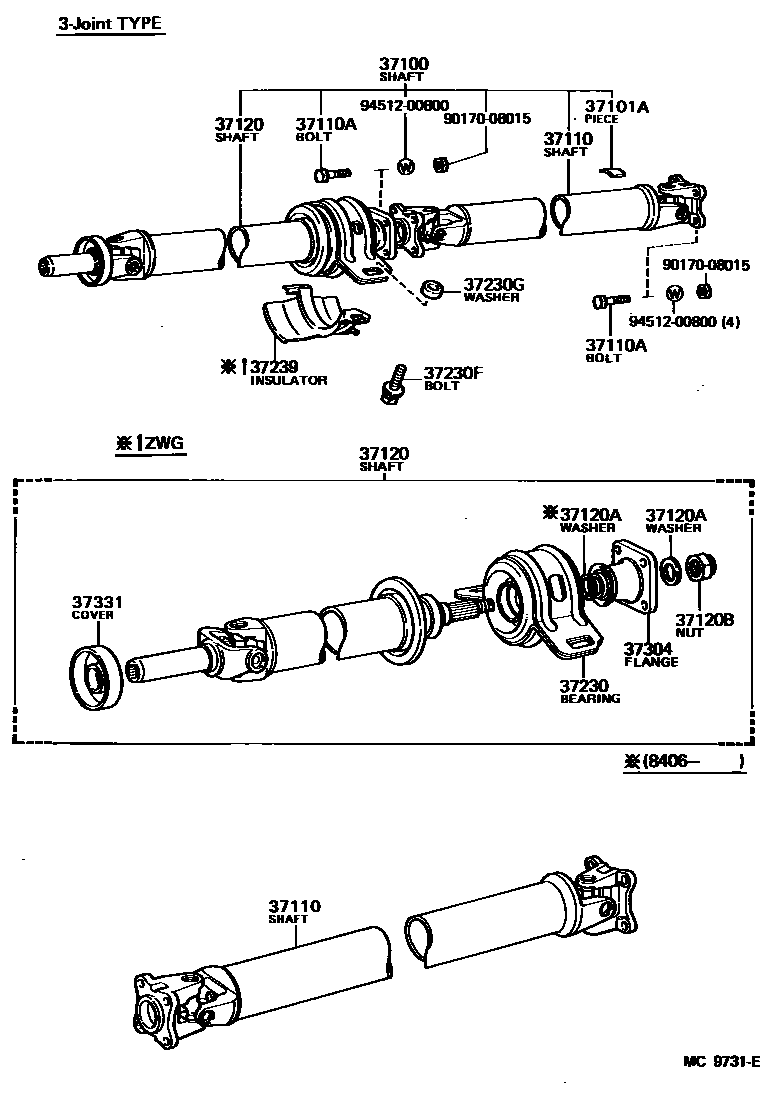

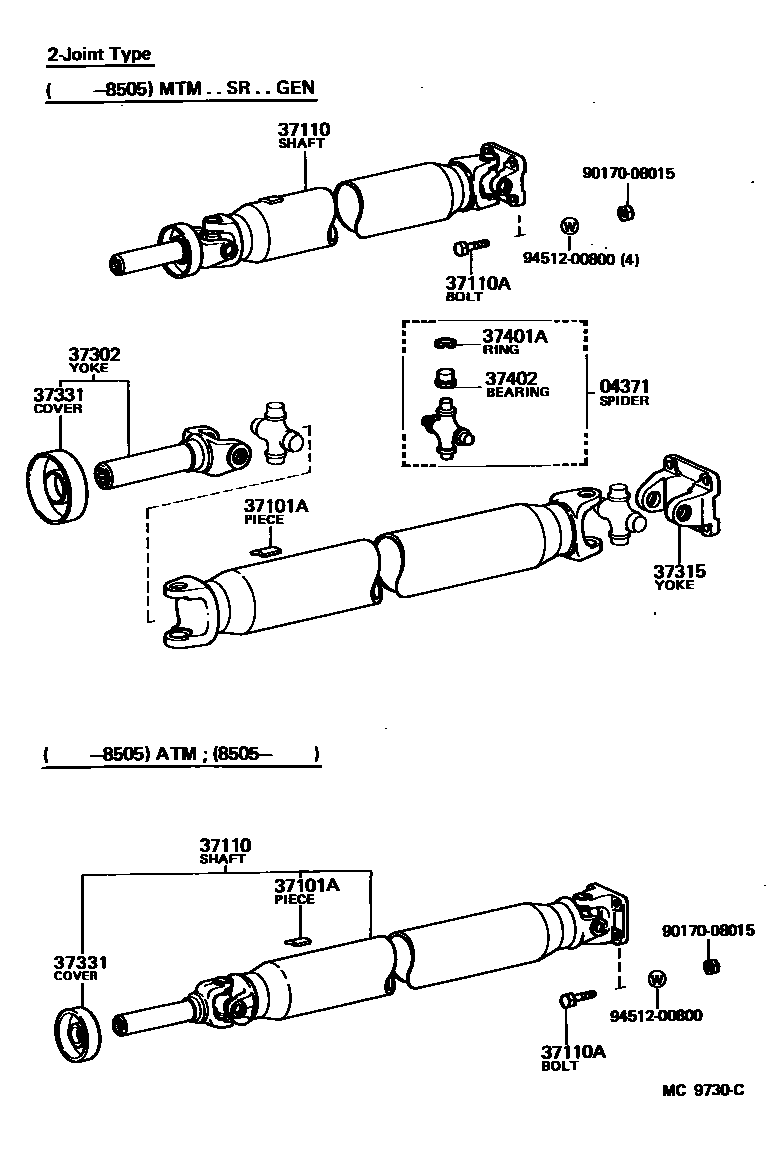

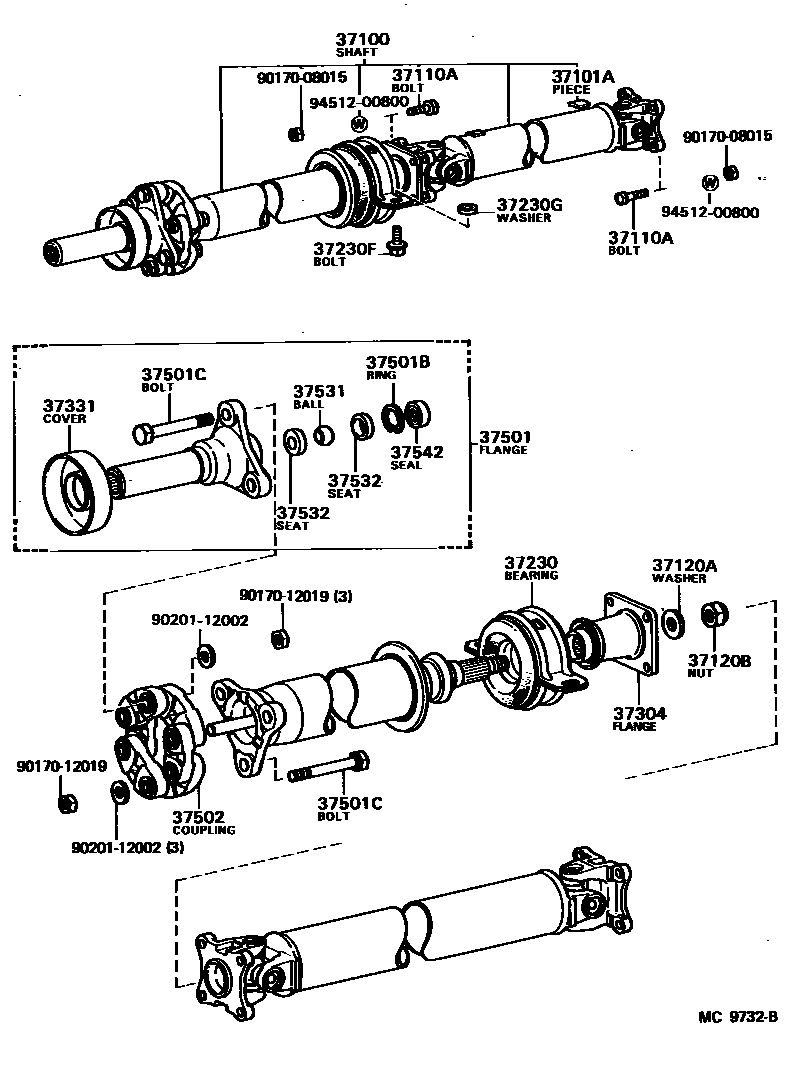

Toyota COROLLA EPC diagram 3701, Propeller Shaft & Universal Joint, with 3 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04371 | Universal joint cross shaft assembly (for drive shaft) | 04371-22010 |
| 37100 | Drive shaft assembly with central bearing | 37100-12390 · 37100-12410 · 37100-12420 · 37100-12430 |
| 37101A | Balance weight No. 1 (for drive shaft) | 90937-01132 · 90937-01136 · 90937-01140 · 90937-01147 · 90937-01148 · 90937-01149 · 90937-01150 · 90937-01151 · 90937-01152 · 90937-01153 · 90937-01154 · 90937-01155 · 90937-01156 · 90937-01157 · 90937-01158 |
| 37110 | Drive shaft assembly | 37110-12340 · 37110-12410 · 37110-12470 · 37110-12490 · 37110-12510 |
| 37110A | Bolt (for drive shaft) | 90101-08082 · 90101-08088 · 90101-08090 · 90101-08091 |
| 37120 | Intermediate drive shaft assembly | 37120-12200 · 37120-12210 |
| 37120A | Flat Washer (for intermediate drive shaft assembly) | 90201-18182 · 90201-26005 |
| 37120B | Nut (for fixing the intermediate drive shaft) | 90179-18009 · 90179-18060 |
| 37230 | No. 1 intermediate support bearing assembly | 37230-12050 · 37230-12060 |
| 37230F | No. 1 bolt (for intermediate support bearing) | 90119-10049 |
| 37230G | No. 2 washer (for intermediate support bearing) | 90201-10008 |
| 37239 | Intermediate support bearing heat insulation pad | 37239-12040 |
| 37302 | Universal joint fork assembly | 37302-14030 |
| 37304 | Universal joint flange sub-assembly | 37304-22012 · 37304-22013 |
| 37315 | Universal joint flange fork | 37315-20020 |
| 37331 | Sliding shaft dust cover | 37331-12010 · 37331-30010 |
| 37401A | Hole snap ring (for cross shaft bearings) | 90521-29070 · 90521-29071 · 90521-29072 · 90521-29073 |
| 37402 | Universal joint cross shaft bearing sub-assembly | 37402-22020 |
| 37501 | Flexible coupling sleeve flange sub-assembly | 37501-14020 |
| 37501B | Hole snap ring (for flexible coupling sleeve flange) | 90521-37001 · 90521-37002 · 90521-37003 · 90521-37004 · 90521-37005 |
| 37501C | Bolts (for flexible coupling sleeve flange) | 90101-12008 |
| 37502 | Flexible coupling sub-assembly | 37502-20010 |
| 37531 | Flexible coupling centering steel ball | 37531-20010 |
| 37532 | Flexible coupling seat | 37532-20010 |
| 37542 | Centering seal (for flexible coupling sleeve flange) | 37542-20011 |
