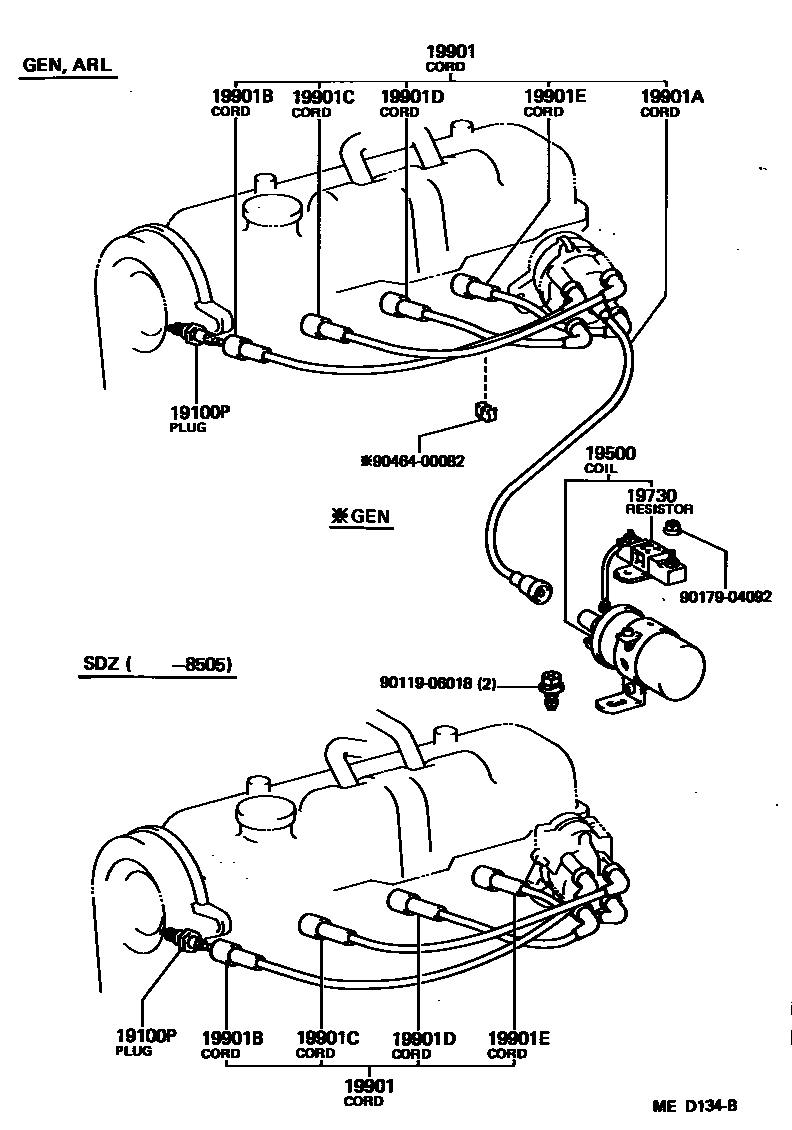

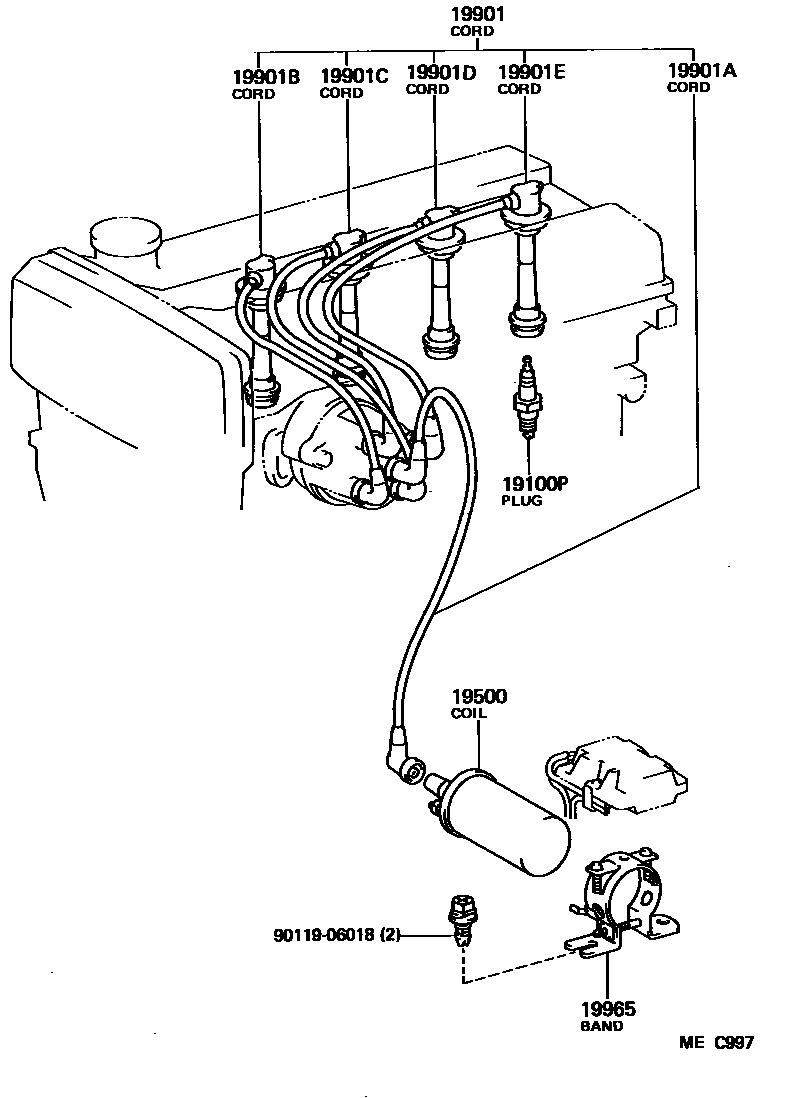

Toyota COROLLA 点火线圈和火花塞 — Figure 1901
Toyota COROLLA EPC diagram 1901, 点火线圈和火花塞, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01059 · 90919-01064 · 90919-01121 · 90919-01131 |
| 19500 | Ignition coil assembly | 90919-02113 · 90919-02151 |
| 19730 | Ignition coil resistor | 90919-04033 |
| 19901 | Coil and spark plug assembly with damper wire | 90919-21328 · 90919-21330 · 90919-21374 · 90919-22105 |
| 19901A | coil damping line | 90919-13189 · 90919-13221 · 90919-13250 |
| 19901B | No. 1 spark plug damper wire | 90919-12356 · 90919-12502 · 90919-12506 |
| 19901C | No. 2 spark plug damper wire | 90919-12357 · 90919-12503 · 90919-12507 |
| 19901D | No. 3 spark plug damper wire | 90919-12358 · 90919-12504 · 90919-12508 |
| 19901E | No. 4 spark plug damper wire | 90919-12359 · 90919-12505 · 90919-12509 |
| 19965 | No. 1 ignition coil band | 90919-03093 |
