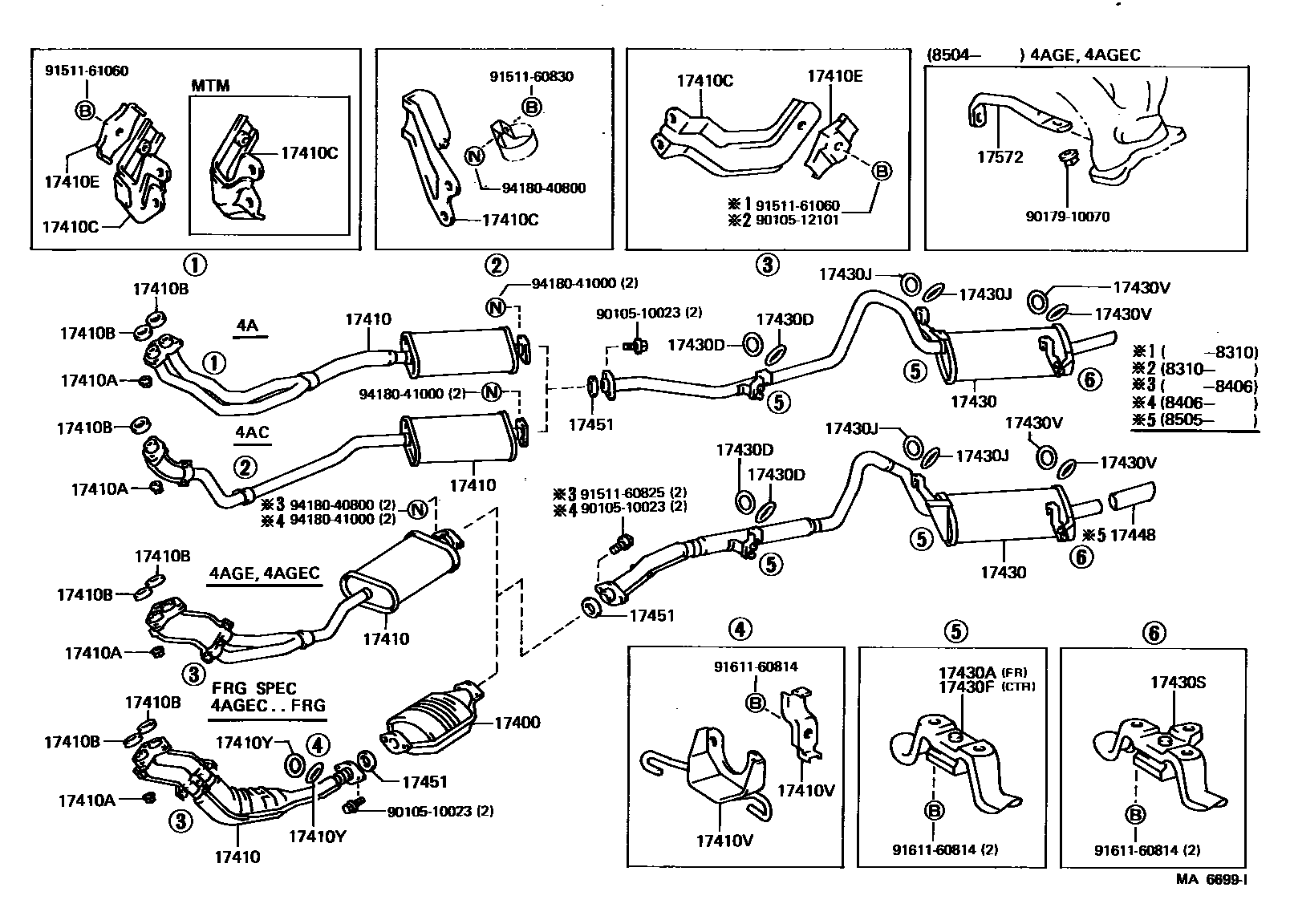

Toyota COROLLA Exhaust Pipe — Figure 1702
Toyota COROLLA EPC diagram 1702, Exhaust Pipe, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17400 | Three-way catalytic converter assembly with catalyst | 18450-16050 · 18450-16140 |
| 17410 | Front exhaust pipe assembly | 17410-16010 · 17410-16011 · 17410-16020 · 17410-16021 · 17410-16022 · 17410-16030 · 17410-16040 · 17410-16160 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10010 · 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06001 · 90917-06004 |
| 17410C | Front exhaust pipe bracket (for front) | 17571-15110 · 17571-16010 · 17571-16030 · 17571-16040 · 17571-16060 · 17571-16090 · 17571-16130 |
| 17410E | No. 1 front exhaust pipe clamp (for front) | 17578-15030 · 17578-15031 · 90917-04046 |
| 17410V | Front exhaust pipe bracket (for rear) | 17503-16010 · 17588-16010 |
| 17410Y | Front exhaust pipe bolts or rings (for rear) | 90301-36001 |
| 17430 | Exhaust tailpipe assembly | 17430-16011 · 17430-16050 · 17430-16051 · 17430-16052 · 17430-16060 · 17430-16230 |
| 17430A | Exhaust tailpipe bracket (for front) | 17506-13020 |
| 17430D | Exhaust tailpipe bolts or rings (for front) | 90301-36001 |
| 17430F | Exhaust tailpipe bracket (for center) | 17506-13020 |
| 17430J | Exhaust tailpipe bolt or ring (for center) | 90301-34207 · 90301-36001 |
| 17430S | Exhaust tailpipe bracket (for rear) | 17508-13010 |
| 17430V | Exhaust tailpipe bolts or rings (for rear) | 90301-34207 · 90301-36001 |
| 17448 | Exhaust pipe tail throat | 17406-70010 · 17406-79025 |
| 17451 | Exhaust pipe gasket | 90917-06004 · 90917-06008 · 90917-06012 |
| 17572 | No. 1 exhaust pipe bracket | 17572-16010 |
