Toyota COROLLA Ventilation Hose — Figure 1201

Toyota COROLLA EPC diagram 1201, Ventilation Hose, with 2 images and 6 PNC and OE references.

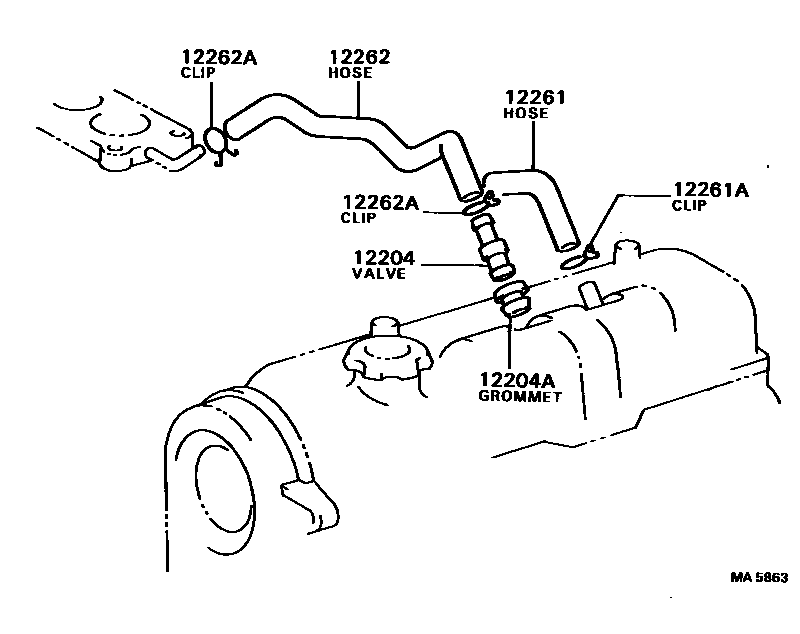

Toyota COROLLA Ventilation Hose EPC diagram — MA5863
Ventilation Hose — MA5863 (198305 – 999999)
Toyota COROLLA Ventilation Hose EPC diagram — MA6651
Ventilation Hose — MA6651 (198305 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-15022 · 12204-15030 · 12204-71010
12204AGasket (for ventilation system)90480-18001
12261Ventilation Hose12261-15030 · 12261-16020
12261AClip or clip (for vent hose)90467-16010
12262Ventilation hose No. 212262-15050 · 12262-15060
12262AClamp (for vent hose No. 2)90467-13103
