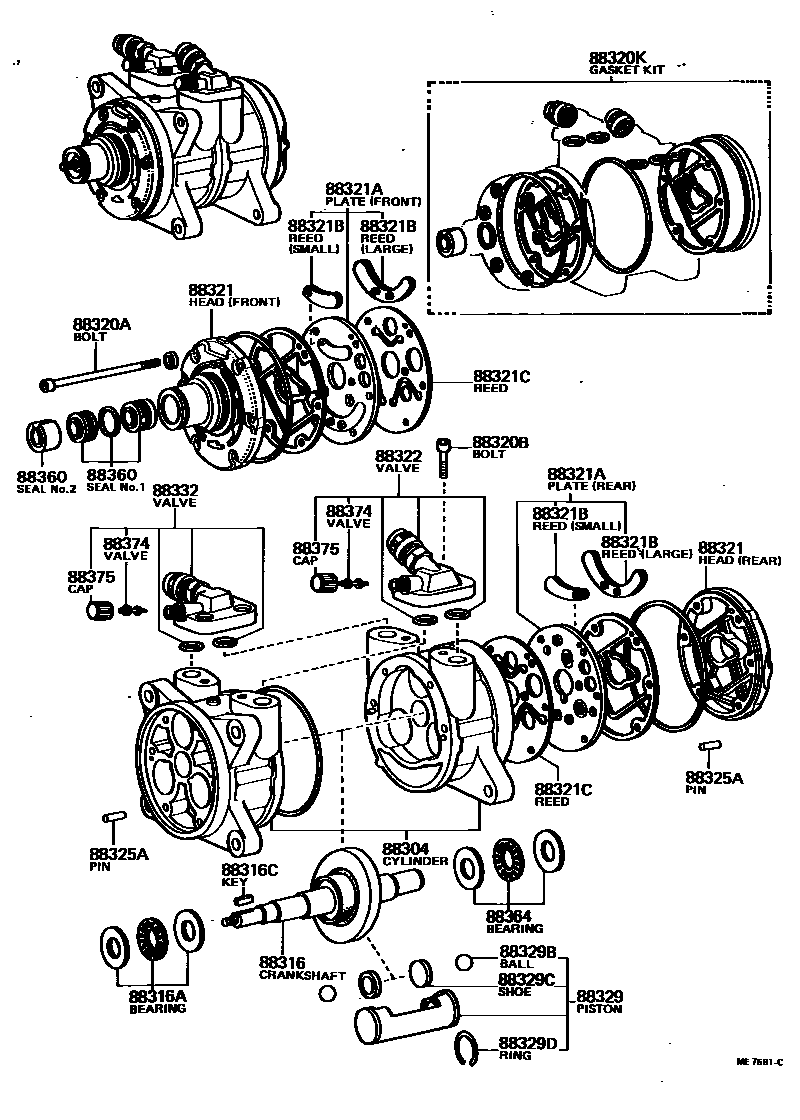

Toyota COROLLA Heating & Air Conditioning - Compressor — Figure 8719
Toyota COROLLA EPC diagram 8719, Heating & Air Conditioning - Compressor, with 4 images and 37 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88401-12032 · 88401-14040 · 88401-20050 · 88412-12040 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-12021 · 88411-12050 · 88411-14020 · 88411-20060 · 88411-22040 |
| 88304 | Cooler compressor cylinder sub-assembly | 88304-12010 |
| 88316 | Cooler compressor crankshaft | 88316-12060 · 88316-12061 |
| 88316A | Compressor crankshaft front bearing | 90099-10123 |
| 88316C | Compressor crankshaft key | 90099-13011 · 90099-13019 |
| 88320 | Cooler Compressor Assembly | 88320-12130 · 88320-12150 · 88320-12160 · 88320-14010 · 88320-14020 · 88320-20140 · 88320-20150 · 88320-20170 |
| 88320A | Through bolt | 90099-04923 |
| 88320B | Service valve bolts | 90099-04924 |
| 88320K | Cooler compressor overhaul gasket assembly | 04881-12020 · 04881-35010 |
| 88321 | Cooler compressor cylinder head | 88321-12030 · 88321-12031 · 88322-12010 |
| 88321A | Valve sub-assembly | 88305-12040 · 88306-12010 |
| 88321B | Valve reed sub-assembly | 88307-12030 · 88307-12040 |
| 88321C | suction valve reed | 88343-12010 |
| 88322 | Cooler compressor suction service valve | 88371-12110 · 88371-12130 · 88371-12140 · 88371-12150 |
| 88325A | cylinder pin | 90099-08058 |
| 88329 | Cooler compressor piston sub-assembly | 88301-12040 |
| 88329B | piston ball | 90099-12010 |
| 88329C | piston shoe | 88313-12060 |
| 88329D | Piston rings | 88317-12010 |

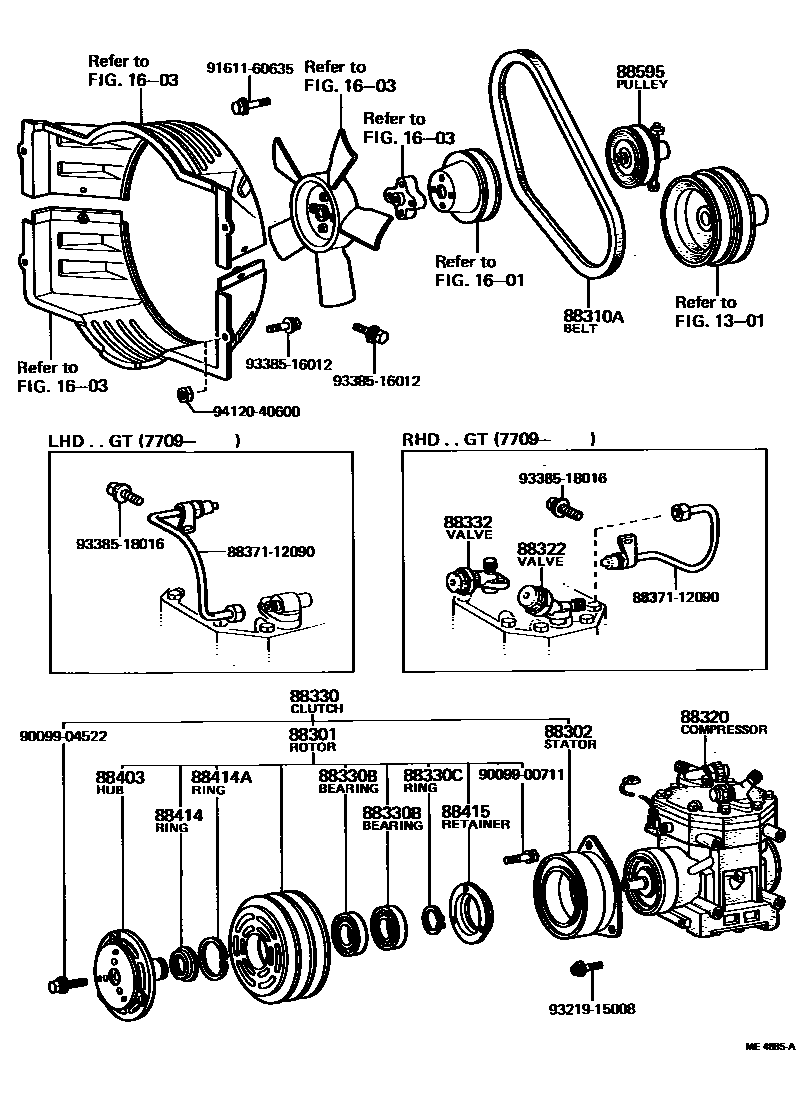

| 88330 | Magnetic Clutch Assembly | 88410-12022 · 88410-12080 · 88410-14050 · 88410-20071 · 88410-22060 |
| 88330B | Electromagnetic clutch bearing | 90099-10083 · 90099-10108 · 90099-10117 |
| 88330C | Snap ring (for electromagnetic clutch) | 90096-90007 · 90099-07094 |
| 88332 | Cooler compressor discharge service valve | 88372-12090 · 88372-12100 · 88372-14020 |
| 88360 | Cooler compressor shaft seal assembly | 88360-12070 · 90099-15031 |
| 88364 | Compressor crankshaft rear bearing | 90099-10123 |
| 88374 | Cooler compressor service valve | 88374-12020 |
| 88375 | Cooler compressor repair valve cover | 88375-30260 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-12020 · 88403-20031 · 88403-26030 |
| 88414 | guard ring | 88415-12030 |
| 88414A | Guard plate snap ring | 90096-90005 |
| 88415 | No. 1 electromagnetic clutch bearing retainer | 88415-12040 |

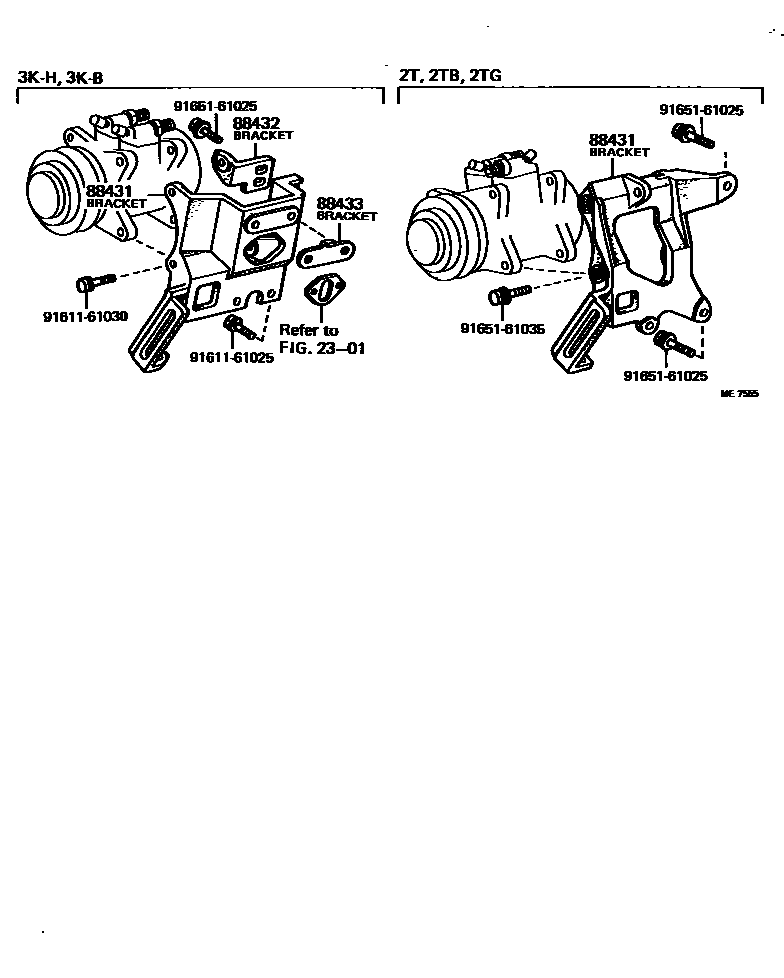

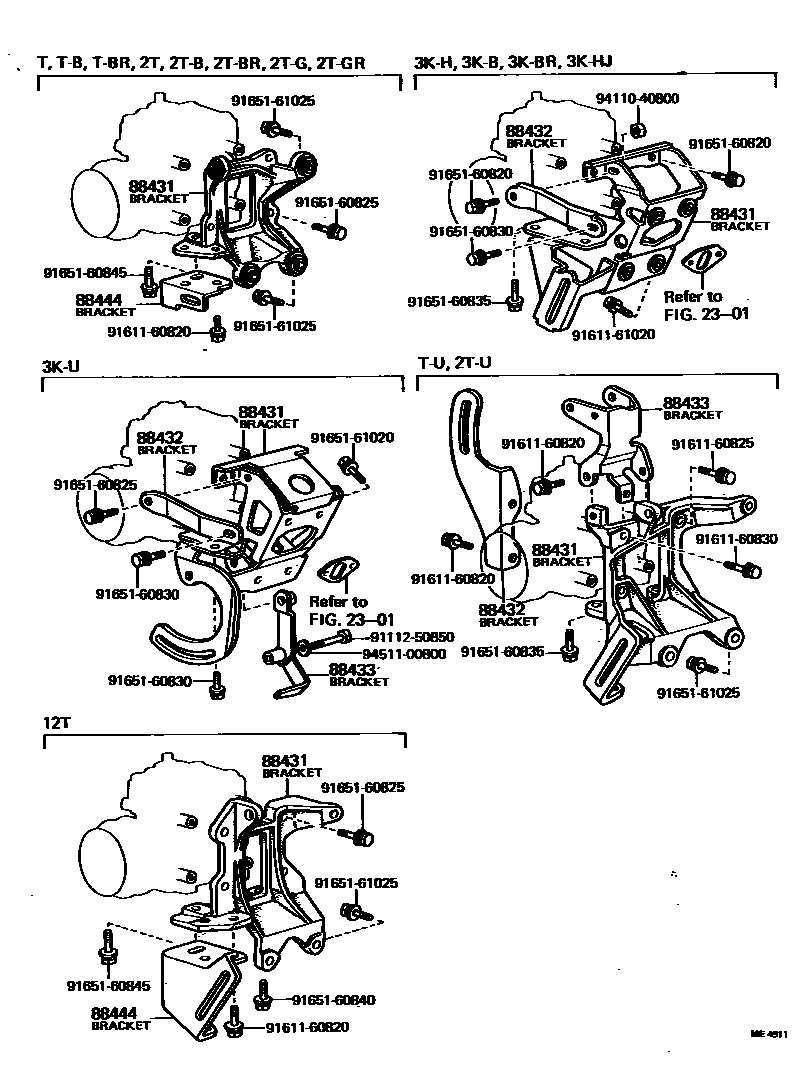

| 88431 | Compressor No. 1 mounting bracket | 88431-12042 · 88431-12170 · 88431-12181 · 88431-12200 · 88431-14010 |
| 88432 | Compressor No. 2 mounting bracket | 88437-12042 · 88437-12043 · 88437-12110 · 88437-12170 |
| 88433 | Compressor No. 3 mounting bracket | 88437-12180 |
| 88444 | Idler gear bracket | 88444-14010 |
| 88595 | Cooler compressor idler pulley | 88440-12030 · 88440-12050 · 88440-14010 · 88440-30250 |
