Toyota COROLLA 暖风和空调系统 - 控制器和风管 — Figure 8715

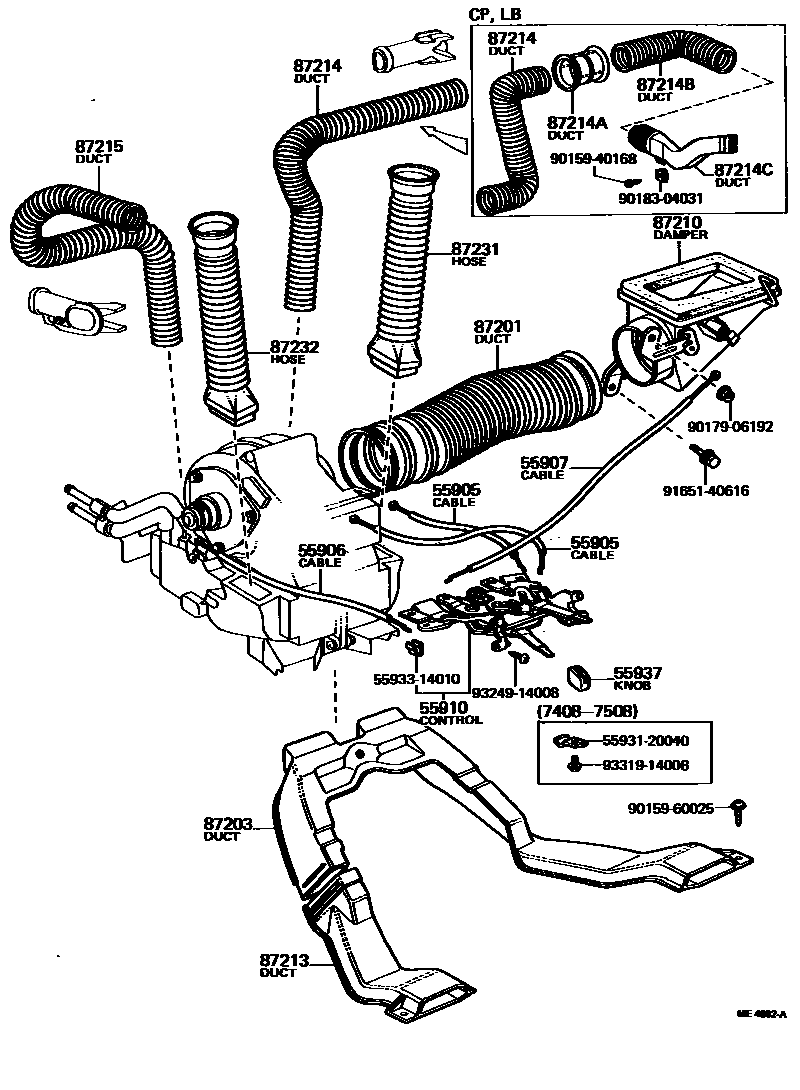

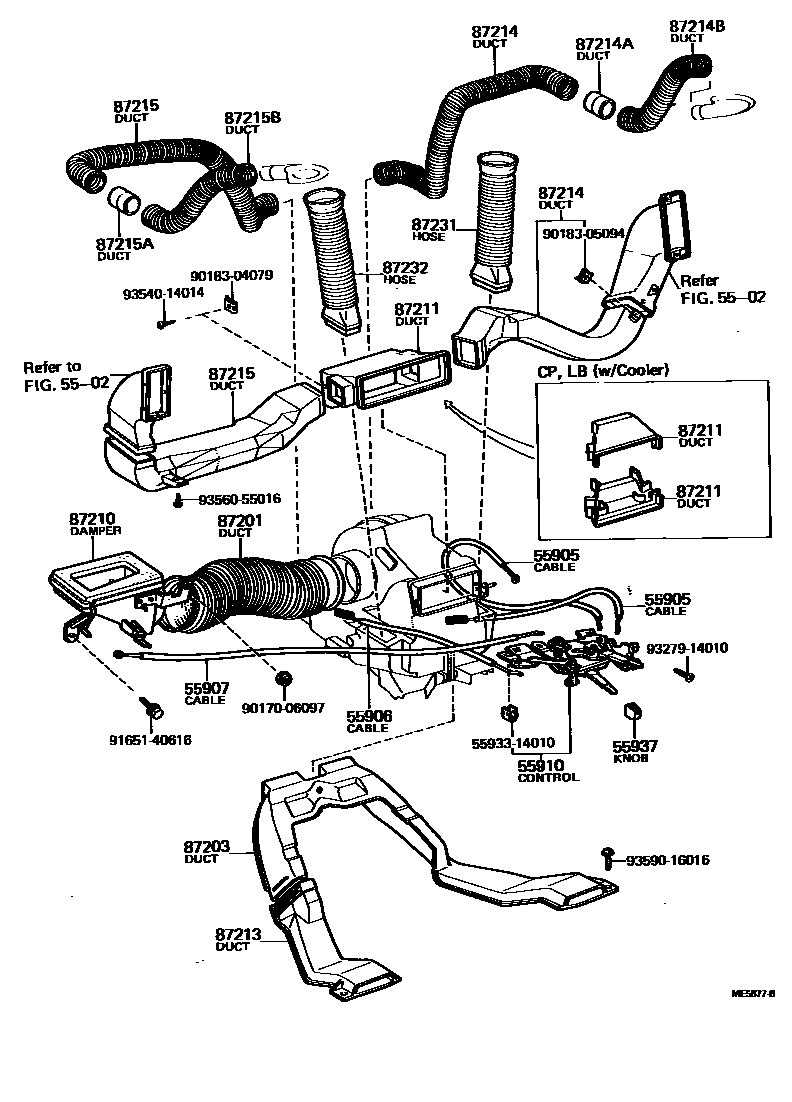

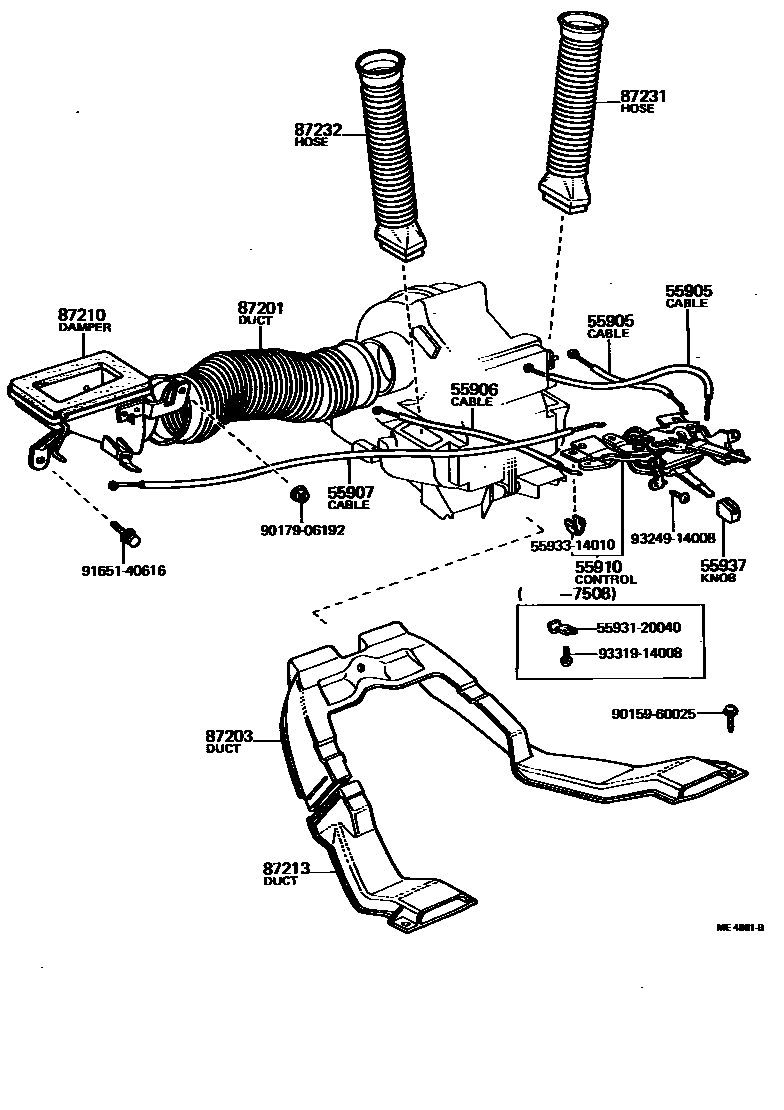

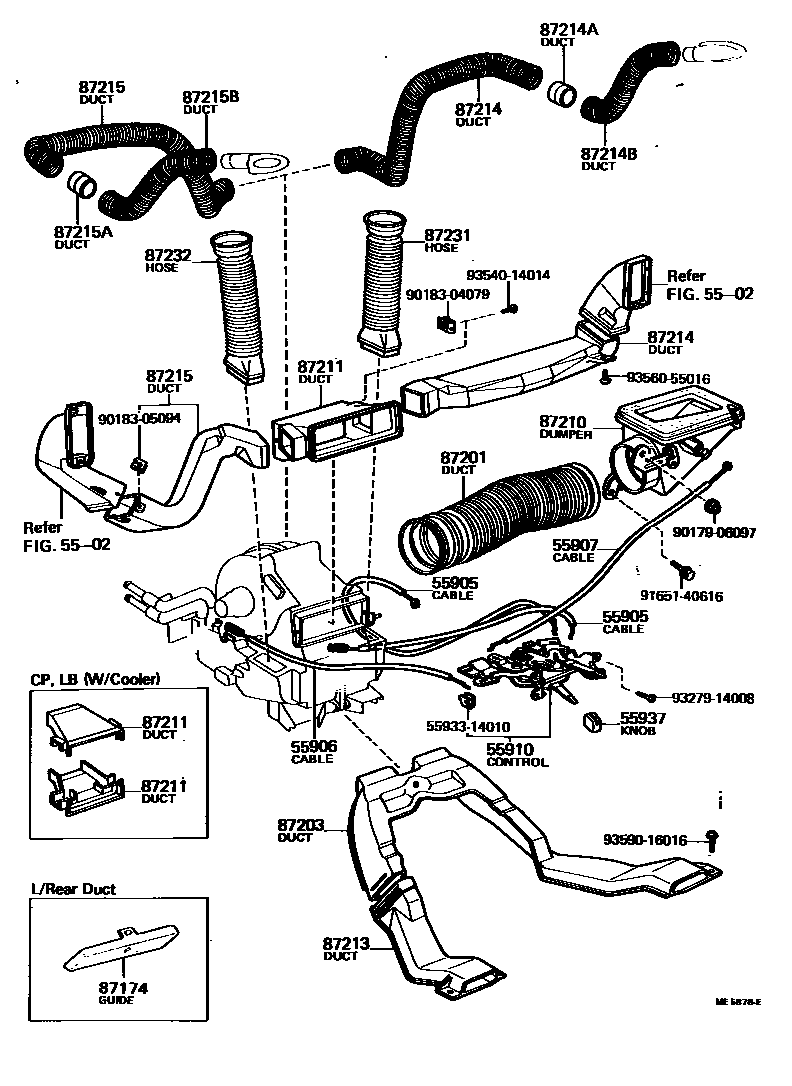

Toyota COROLLA EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55905 | Defroster control cable sub-assembly | 55906-12040 · 55906-12041 · 55906-12060 · 55906-12080 · 55906-12090 · 55906-12100 · 55906-12110 · 55909-12040 · 55909-12041 · 55909-12070 · 55909-12071 · 55909-12080 · 55909-12090 · 55909-12100 |
| 55906 | Heater control cable sub-assembly | 55907-12010 · 55907-12011 · 55907-12030 · 55907-12040 · 55907-12041 · 55907-12050 · 55907-12060 · 55907-12070 |
| 55907 | Heater butterfly intake valve cable sub-assembly | 55908-12040 · 55908-12041 · 55908-12060 · 55908-12070 · 55908-12071 · 55908-12080 · 55908-12090 · 55908-12100 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-12909 · 55910-12911 · 55910-12912 · 55910-12913 · 55910-12914 · 55910-12915 · 55910-12916 · 55910-12917 · 55910-12918 · 55910-12919 · 55910-12920 · 55910-12921 · 55910-12922 · 55910-12923 · 55910-12924 · 55910-12925 |
| 55937 | Heater lever button | 55905-12040 |
| 87174 | Air duct deflector | 87174-12060 |
| 87201 | No. 1 air duct sub-assembly | 87211-12010 · 87211-12020 |
| 87210 | choke assembly | 87210-12010 · 87210-12020 |
| 87211 | No. 1 air duct | 55076-12040 · 55086-12030 · 55086-12040 · 55835-12030 · 55835-12040 · 55835-12070 · 55835-12080 · 55836-12030 · 55836-12040 · 88575-12010 · 88575-12020 |
| 87214 | Air duct No. 1 on the right | 55084-12010 · 55085-12010 · 55845-12020 · 55845-12040 · 55971-12030 · 55972-12020 · 55972-12050 · 55975-12020 · 55975-12040 |
| 87214A | Air duct No. 2 on the right | 55973-12010 · 55973-12020 |
| 87214B | Air duct No. 3 on the right | 55971-12040 · 55972-12010 · 55972-12060 |
| 87214C | Air duct No. 4 on the right | 55971-12020 |
| 87215 | Air duct No. 1 on the left | 55084-12020 · 55085-12020 · 55845-12010 · 55845-12030 · 55971-12010 · 55971-12030 · 55972-12050 · 55974-12020 · 55975-12040 |
| 87215A | Air duct No. 2 on the left | 55973-12020 |
| 87215B | Air duct No. 3 on the left | 55971-12040 · 55972-12060 |
| 87231 | Heater right side defroster hose | 87231-12050 · 87231-12051 |
| 87232 | Defroster hose, left side of heater | 87231-12050 · 87231-12051 |
