Toyota COROLLA indicator light — Figure 8302

Toyota COROLLA EPC diagram 8302, indicator light, with 2 images and 11 PNC and OE references.

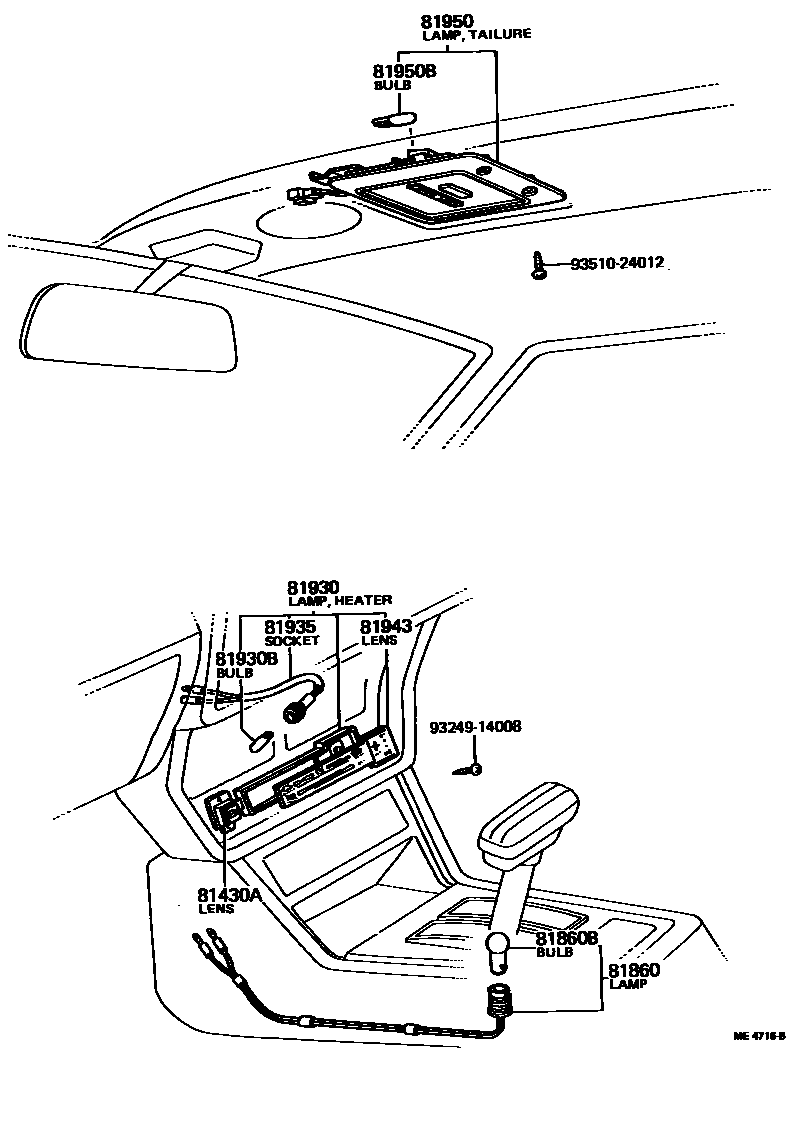

Toyota COROLLA indicator light EPC diagram — ME4716B
indicator light — ME4716B (197408 – 197701)

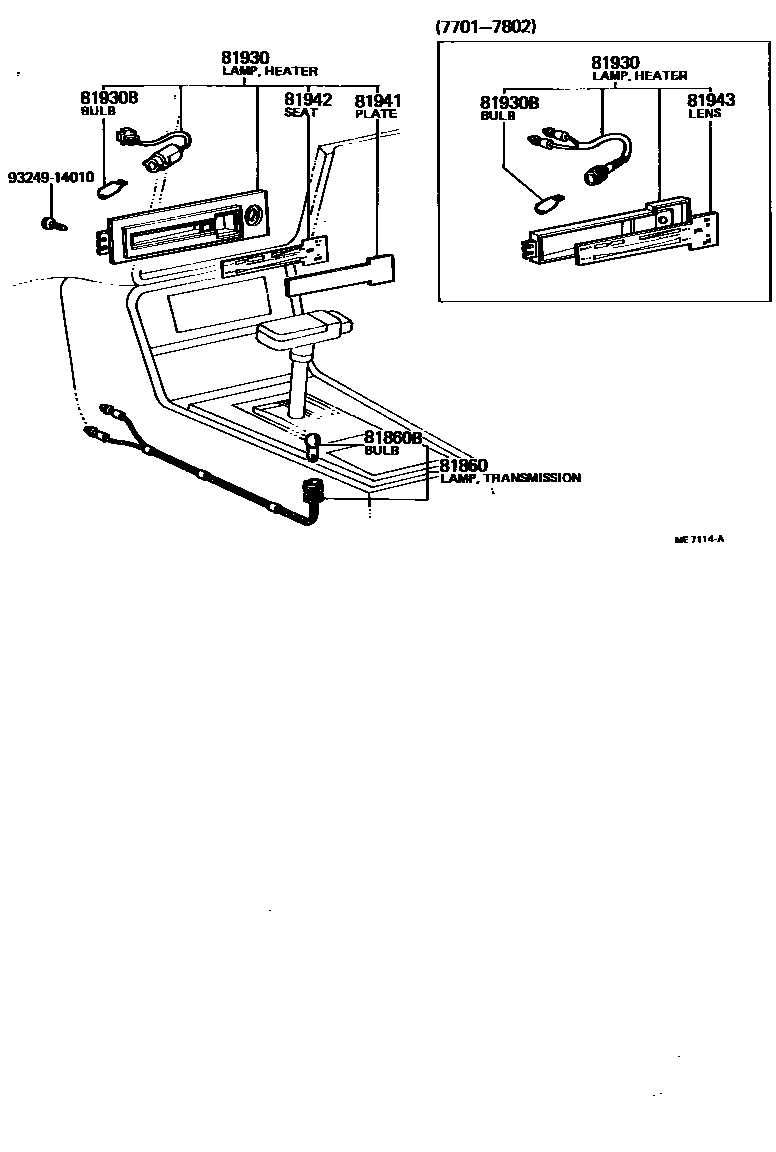

Toyota COROLLA indicator light EPC diagram — ME7114A
indicator light — ME7114A (197701 – 999999)

PNC and OE references

PNCPart nameOE numbers
81430ARear window defogger indicator light cover55488-12010
81860Transmission indicator light assembly35906-12030 · 81860-22011
81860BTransmission indicator light bulb99132-11017
81930No. 1 heater control indicator light assembly81930-12021 · 81930-12022 · 81930-12040 · 81930-12041 · 81930-12042 · 81930-12043 · 81930-12050 · 81930-12051 · 81930-12070 · 81930-12071 · 81930-12090 · 81930-12091 · 81930-12100 · 81930-12101 · 81930-12110 · 81930-12111 · 81930-12120 · 81930-12121 · 81930-12130 · 81930-12140
81930BHeater control indicator light bulb90981-11018
81935Heater control indicator lamp holder and wiring harness81935-12020
81941Heater controller nameplate81941-12010
81942Heater control nameplate81931-12022 · 81931-12043 · 81942-12010 · 81942-12020
81943Heater control indicator light cover81931-12021 · 81931-12040 · 81931-12041 · 81931-12042 · 81943-12011 · 81943-12020 · 81943-12030
81950Fault indicator light assembly81850-12020
81950Bfault indicator light bulb90981-11018
