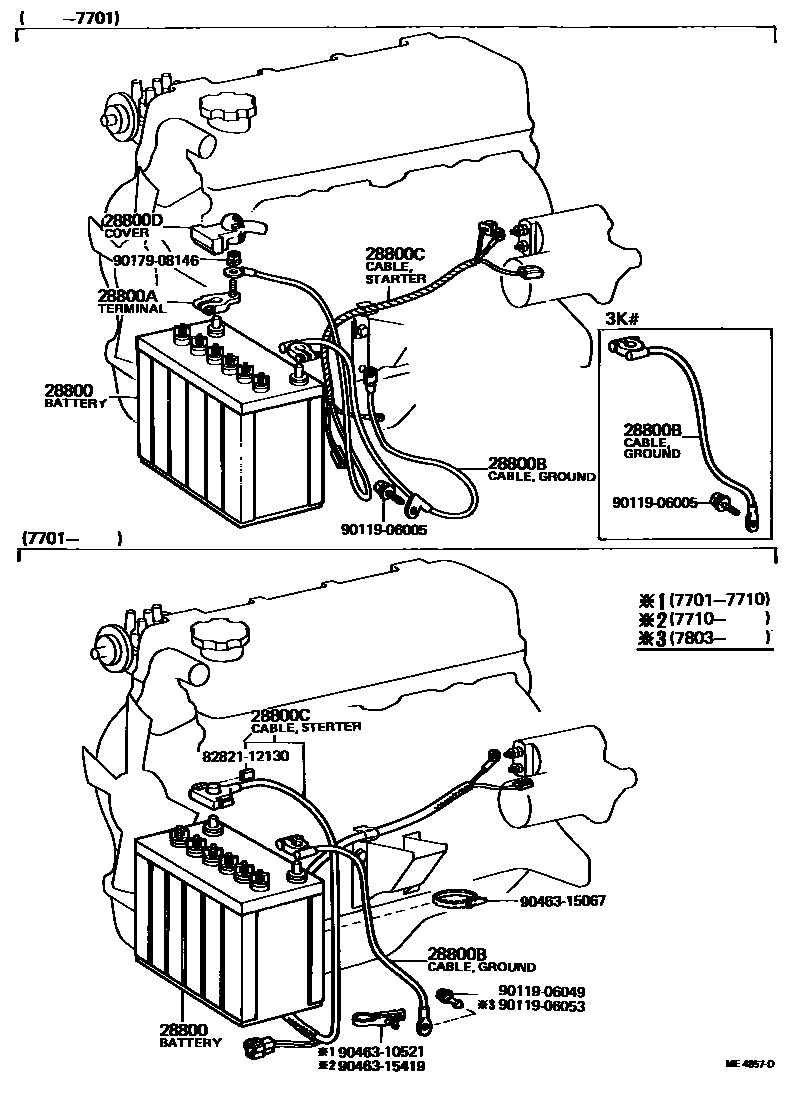

Toyota COROLLA 蓄电池和蓄电池电缆 — Figure 8201
Toyota COROLLA EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28800 | battery | 28800-10021 · 28800-26040 · 28800-30100 · 28800-30131 · 28800-31031 |
| 28800A | battery positive terminal | 90982-05008 · 90982-05009 · 90982-05012 · 90982-05013 |
| 28800B | Cable between battery and ground | 90982-02097 · 90982-02098 · 90982-02099 · 90982-02100 · 90982-02126 · 90982-02127 |
| 28800C | Cable between battery and starter (for battery to main switch) | 82021-12030 · 82021-12050 · 82021-12071 · 82021-12080 · 82021-12090 · 82021-12091 · 82021-12120 · 82021-12130 · 82021-12150 |
| 28800D | Connector cover (for battery terminals) | 82821-12030 · 82821-12040 |
