Toyota COROLLA 前转向灯 — Figure 8103

Toyota COROLLA EPC diagram 8103, 前转向灯, with 3 images and 9 PNC and OE references.

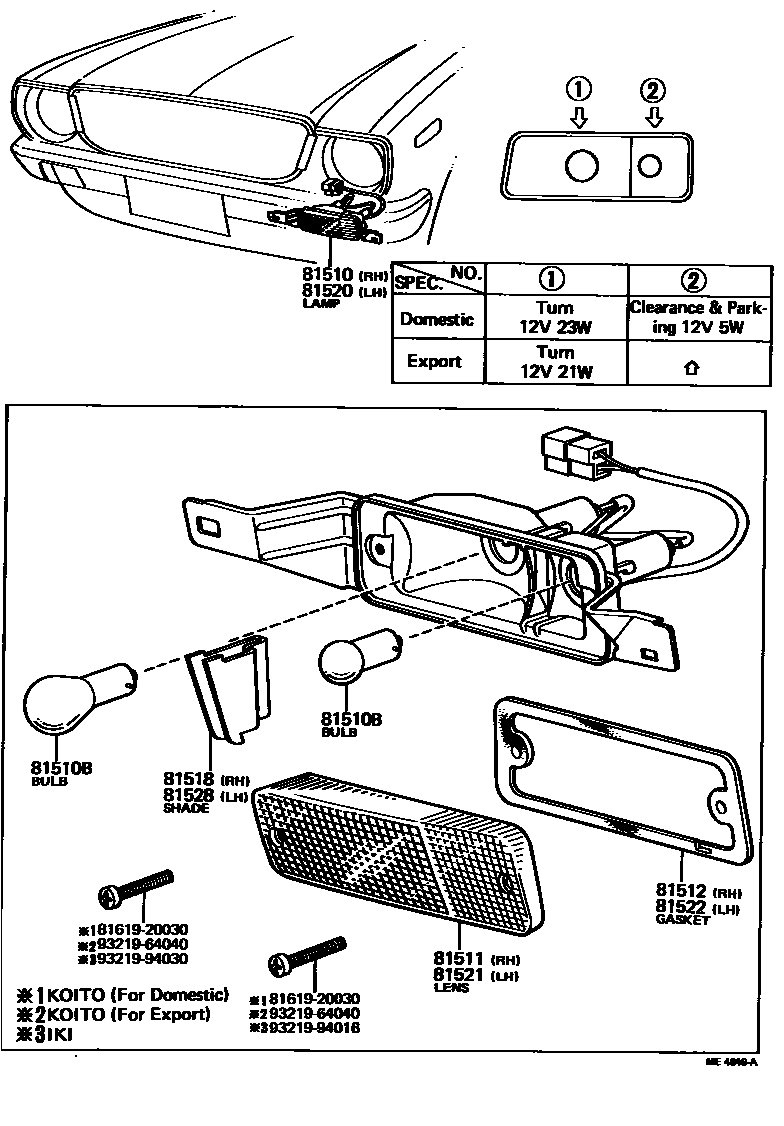

Toyota COROLLA 前转向灯 EPC diagram — ME4846A
前转向灯 — ME4846A (197408 – 999999)

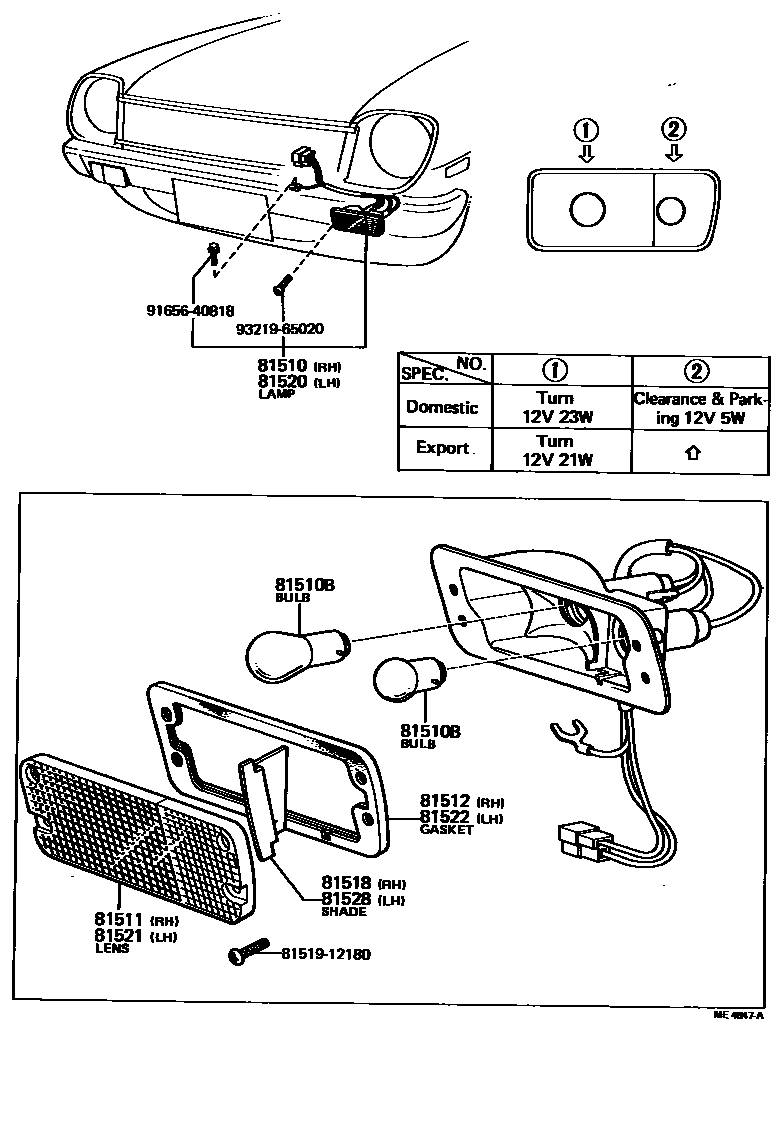

Toyota COROLLA 前转向灯 EPC diagram — ME4847A
前转向灯 — ME4847A (197408 – 197902)

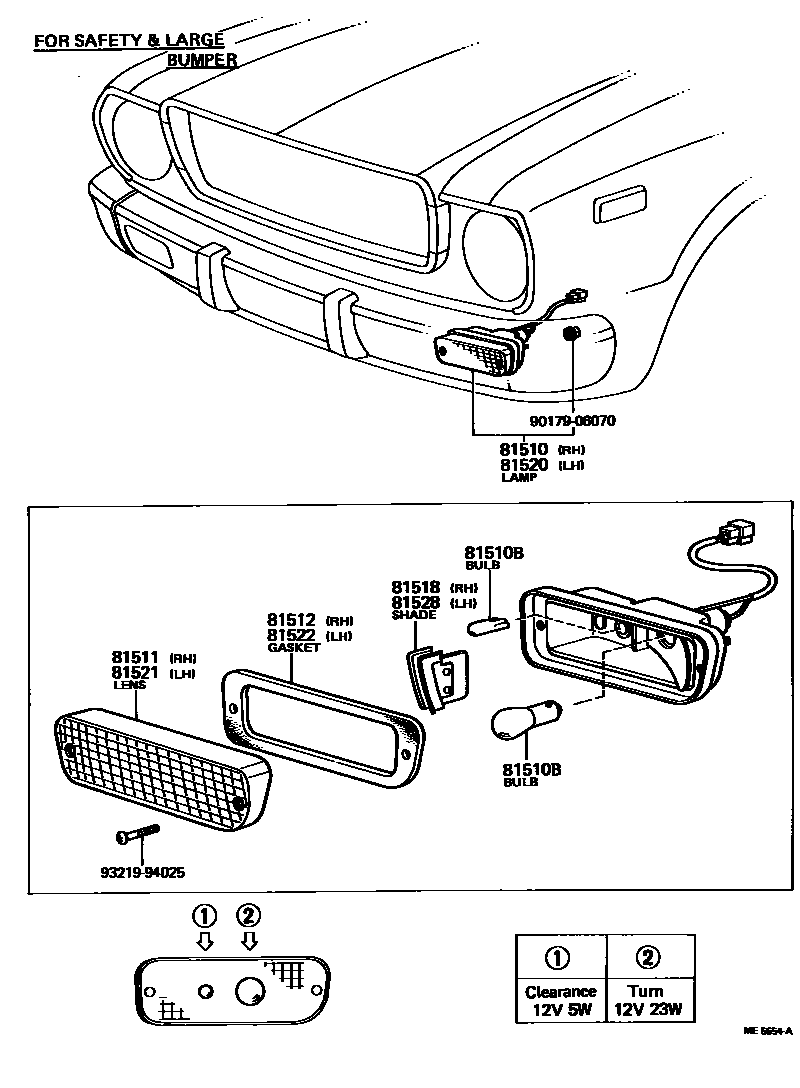

Toyota COROLLA 前转向灯 EPC diagram — ME5654A
前转向灯 — ME5654A (197805 – 999999)

PNC and OE references

PNCPart nameOE numbers
81510Right front turn signal lamp assembly81510-12220 · 81510-19445 · 81510-19475
81510BBulb (for front turn signal lamp)99132-11050 · 99132-11210 · 99132-11230
81511Right front turn signal lamp cover81511-12180 · 81511-12220 · 81511-12230
81512Right front turn signal lamp housing gasket81512-12160 · 81512-12180 · 81512-12230
81518Right front turn signal lamp cover81517-12180 · 81517-12200 · 81517-12220
81520Left front turn signal lamp assembly81520-12210 · 81520-19445 · 81520-19475
81521Left front turn signal lamp cover81521-12170 · 81521-12210 · 81521-12220
81522Left front turn signal lamp housing gasket81512-12230 · 81522-12150 · 81522-12170
81528Left front turn signal lamp cover81517-12200 · 81527-12170 · 81527-12210
