Toyota COROLLA 车身镶条 — Figure 7507

Toyota COROLLA EPC diagram 7507, 车身镶条, with 2 images and 12 PNC and OE references.

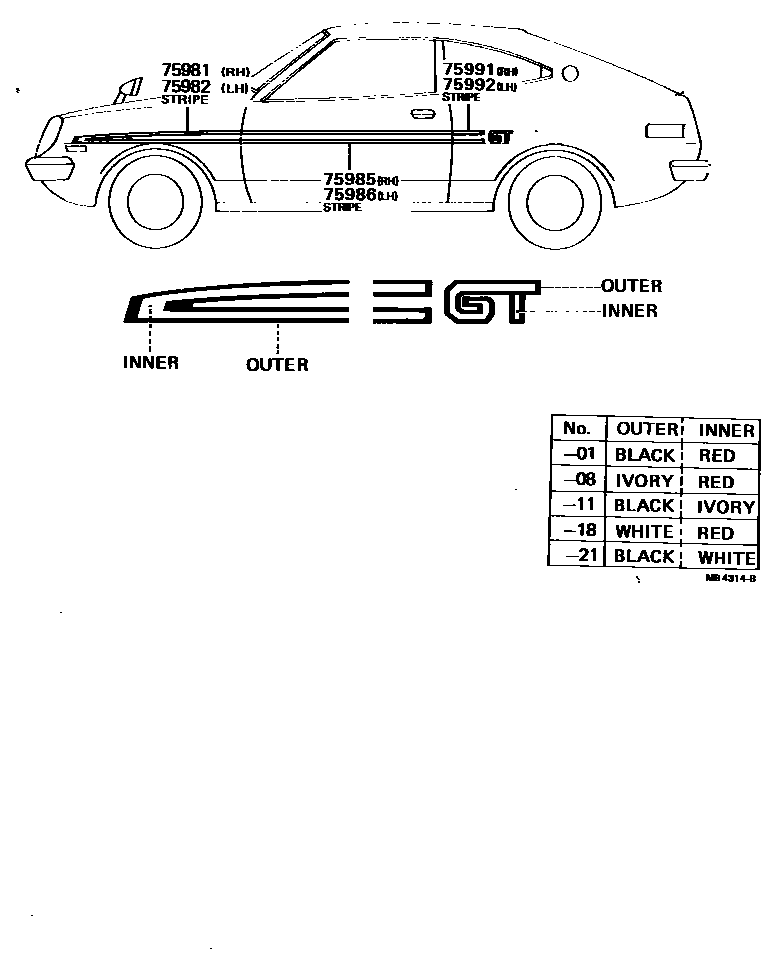

Toyota COROLLA 车身镶条 EPC diagram — MB4314B
车身镶条 — MB4314B (197408 – 197908)

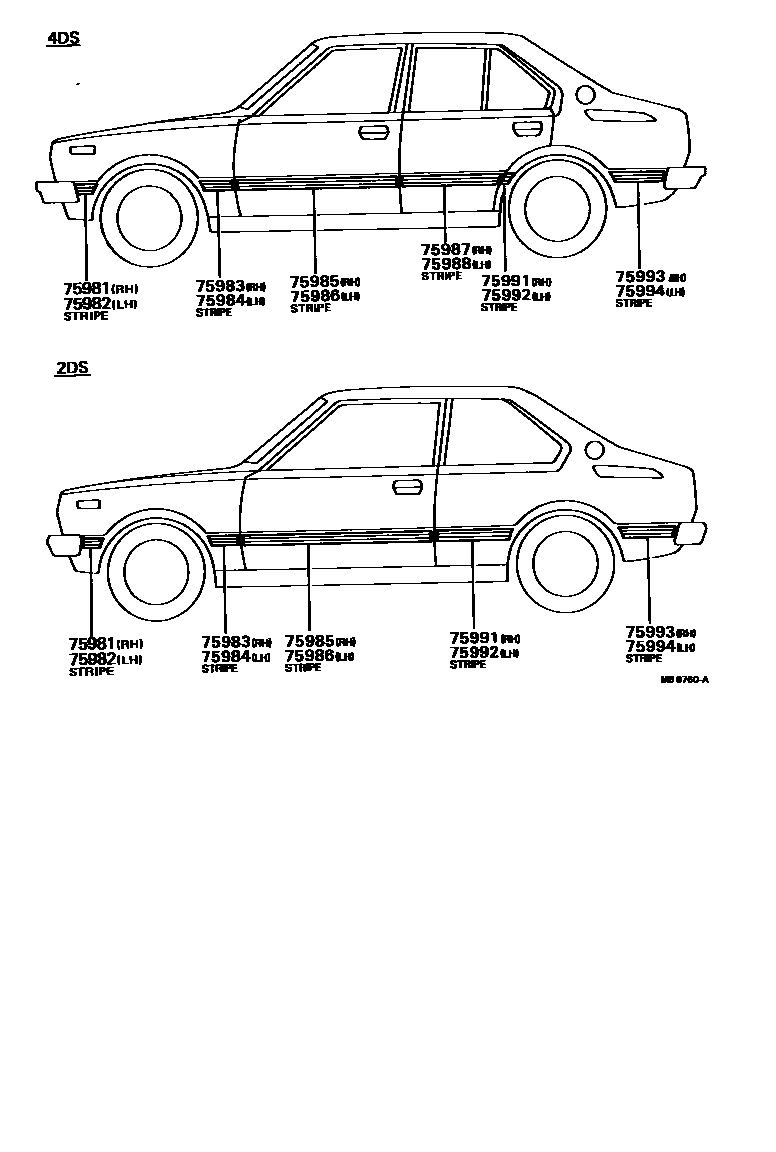

Toyota COROLLA 车身镶条 EPC diagram — MB8760A
车身镶条 — MB8760A (197811 – 197908)

PNC and OE references

PNCPart nameOE numbers
75981No. 1 right front fender panel75981-12200
75982No. 1 left front fender panel75982-12200
75983No. 2 right front fender trim75983-12130
75984No. 2 left front fender trim75984-12130
75985Right front door trim75985-12110 · 75985-12120
75986Left front door trim75986-12110 · 75986-12120
75987Right rear door trim75987-12060
75988Left rear door trim75988-12060
75991No. 1 right side surround strip75991-12130 · 75991-12140
75992No. 1 left side surround strip75992-12120 · 75992-12130
75993No. 2 right side surround strip75993-12070
75994No. 2 left side surround strip75994-12070
