Toyota COROLLA 烟灰盒 — Figure 7404

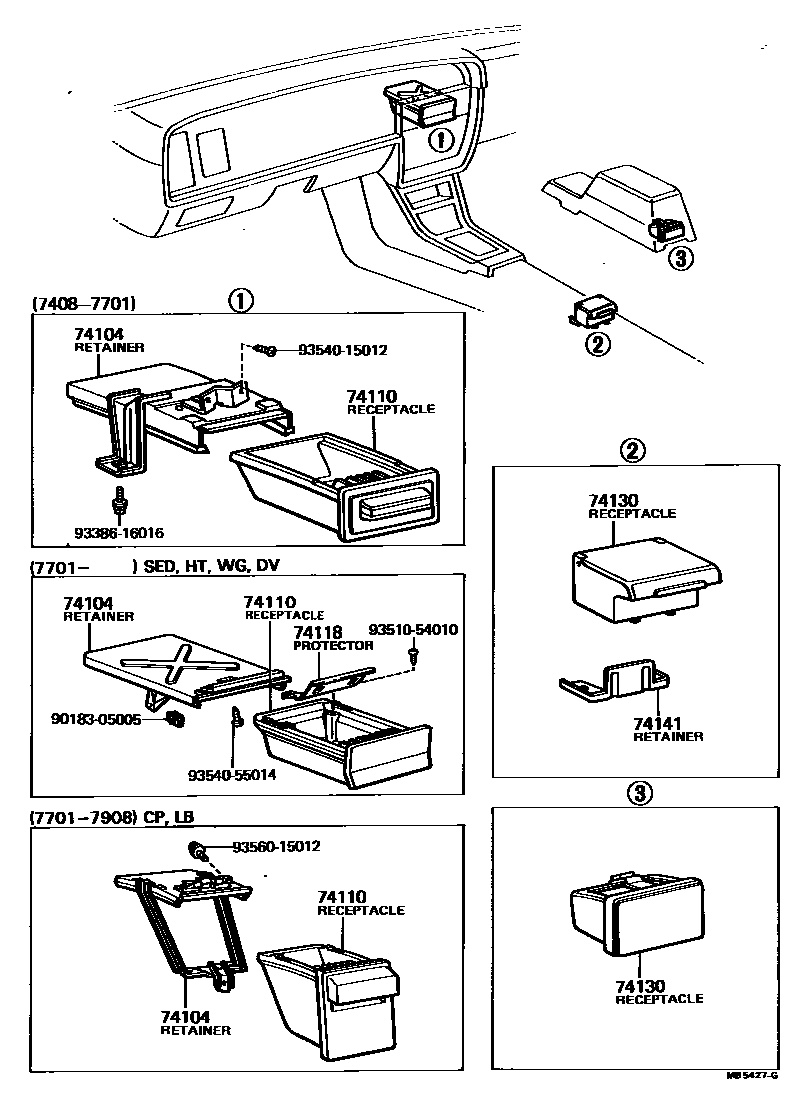

Toyota COROLLA EPC diagram 7404, 烟灰盒, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74104 | No. 1 ashtray fixing part sub-assembly | 74104-12040 · 74104-12050 · 74104-12070 · 74104-12080 · 74104-12090 · 74104-12100 · 74104-12110 · 74104-12120 |
| 74110 | Dashboard ashtray assembly | 74102-12010 · 74102-12020 · 74102-12060 · 74102-12070 · 74111-12060 · 74111-12080 · 74111-12090 · 74111-12100 · 74111-12110 · 74111-12120 |
| 74118 | Front ashtray protective cover | 74119-12010 |
| 74130 | Rear ashtray assembly | 74130-12020 |
| 74141 | Rear ashtray inner fixing part | 58854-12010 |
