Toyota COROLLA 扶手和遮阳板 — Figure 7401

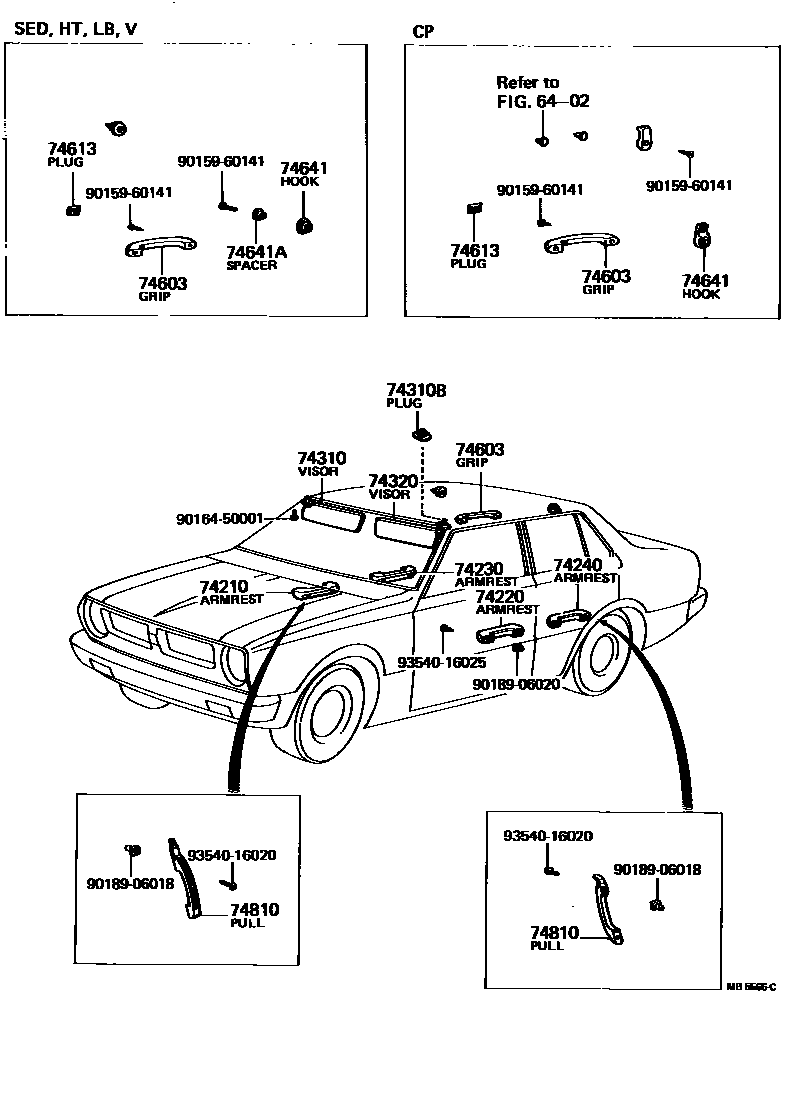

Toyota COROLLA EPC diagram 7401, 扶手和遮阳板, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74310 | Right sun visor assembly | 74310-13010 · 74310-13030 |
| 74310B | Hole plug (for sun visor) | 90950-01178 |
| 74320 | Left sun visor assembly | 74320-13010 · 74320-13030 |
| 74603 | Front auxiliary handle sub-assembly | 74601-12010 · 74601-13010 |
| 74613 | Auxiliary handle plug | 74617-13010 |
| 74641A | Spacers (for coat hooks) | 74634-12010 |
