Toyota COROLLA 前排座椅和座椅滑轨 — Figure 7101

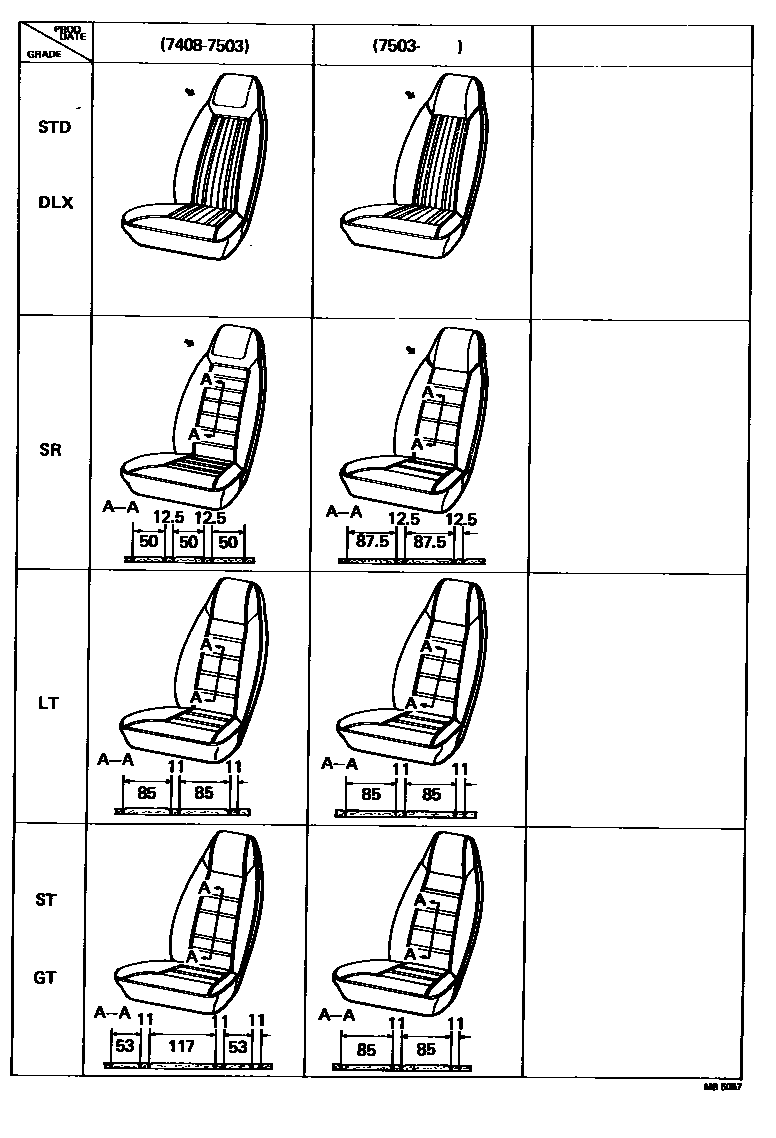

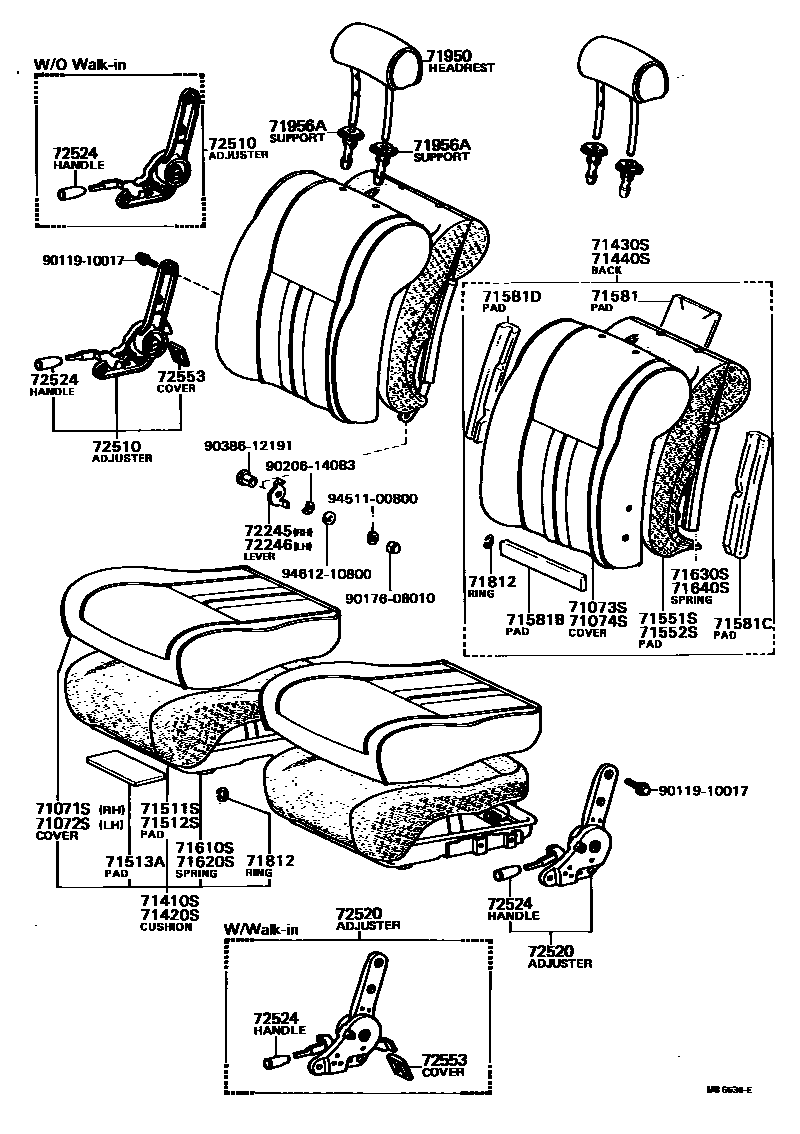

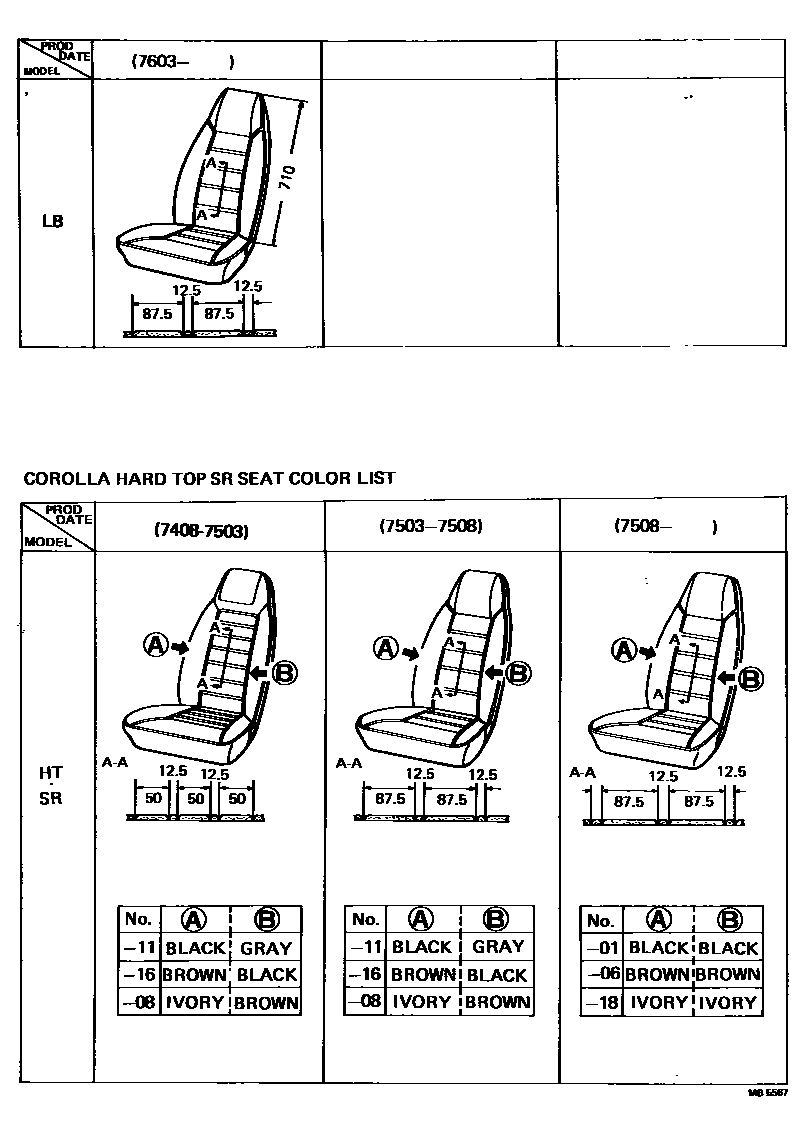

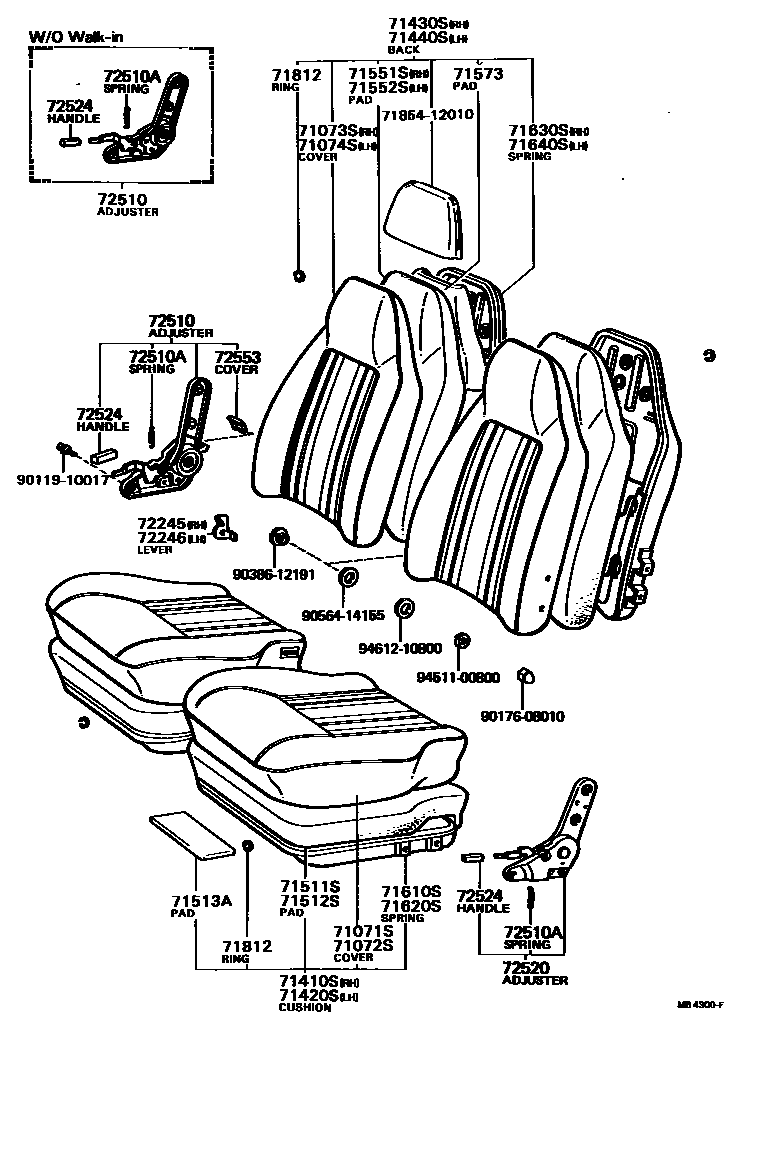

Toyota COROLLA EPC diagram 7101, 前排座椅和座椅滑轨, with 4 images and 22 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71511S | Front right seat cushion cushion (for split seats) | 71511-12280 · 71521-12050 · 71521-12110 · 71521-12140 |
| 71512S | Front left seat cushion cushion (for split seats) | 71511-12280 · 71521-12050 · 71521-12110 · 71521-12140 |
| 71513A | Front A seat cushion | 71541-12030 |
| 71551S | Front right seat back cushion (for split seats) | 71561-12091 · 71561-12120 |
| 71552S | Front left seat back cushion (for split seats) | 71561-12120 · 71562-12011 |
| 71573 | Front C seat back muffler | 71573-12010 |
| 71581 | Front seat back silencer pad | 71563-12040 |
| 71581B | Front B seat back corner cushions | 71582-12060 |
| 71581C | Front C seat back corner cushions | 71576-12010 · 71577-12010 |
| 71581D | Front D seat back corner cushions | 71578-12010 · 71579-12010 |
| 71610S | Front right seat cushion spring assembly (for split seats) | 71610-12071 · 71610-12080 |
| 71620S | Front left seat cushion spring assembly (for split seats) | 71620-12071 · 71620-12080 |
| 71630S | Front right seat back spring assembly (for split seats) | 71630-12101 · 71630-12140 · 71630-12150 · 71630-12161 |
| 71640S | Front left seat back spring assembly (for split seats) | 71640-12091 · 71640-12130 · 71640-12140 · 71640-12151 |
| 71812 | Clip (for front seat cushion cover) | 90468-18071 |
| 72245 | Right seat slide lock release lever | 72245-12010 · 72245-12020 |
| 72246 | Left seat slide lock release lever | 72246-12010 · 72246-12020 |
| 72510 | Front right seat backrest tilt adjuster assembly | 72510-12040 · 72510-12060 · 72510-12070 · 72510-12090 |
| 72510A | Tension spring No. 1 (for seat back recliner) | 90506-12272 · 90506-14508 |
| 72520 | Left seat back tilt adjuster assembly | 72520-12040 · 72520-12050 · 72520-12070 · 72520-12090 |
| 72524 | Backrest recliner release handle | 72525-12040 · 72525-12050 |
| 72553 | Seat back tilt pedal cover | 72553-12020 · 72553-12030 |
