Toyota COROLLA 中央扶手箱和支架 — Figure 5806

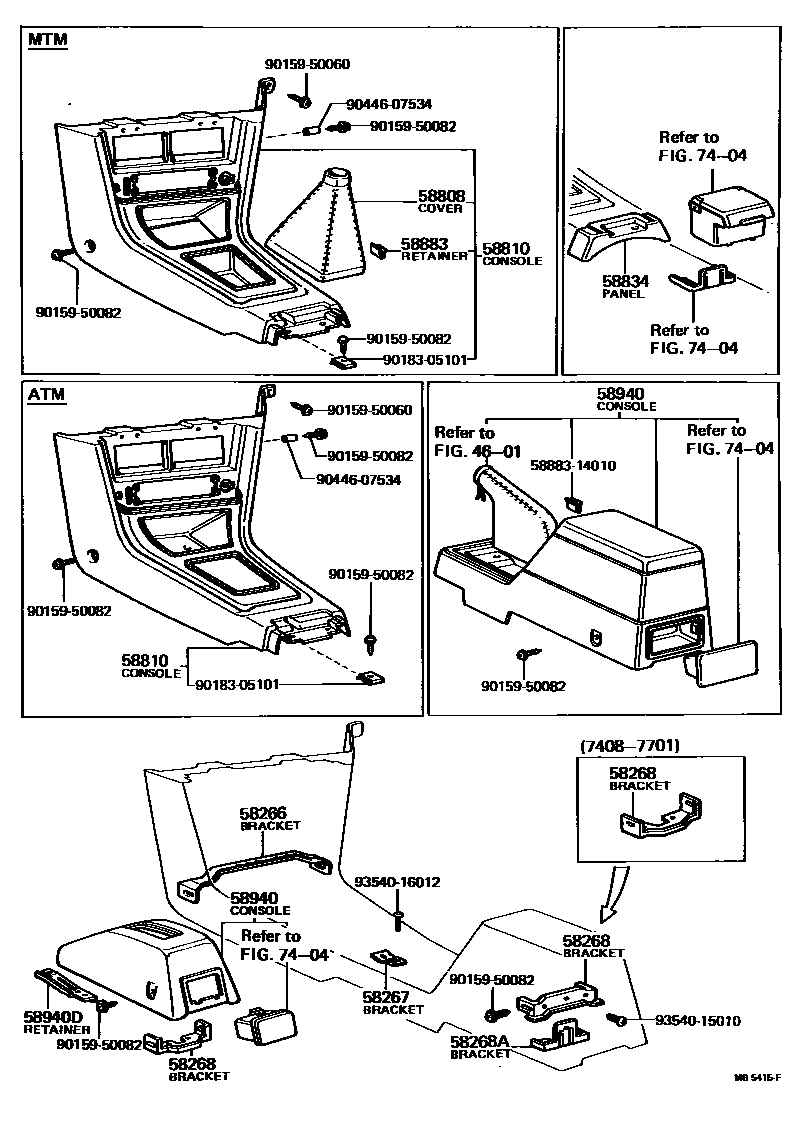

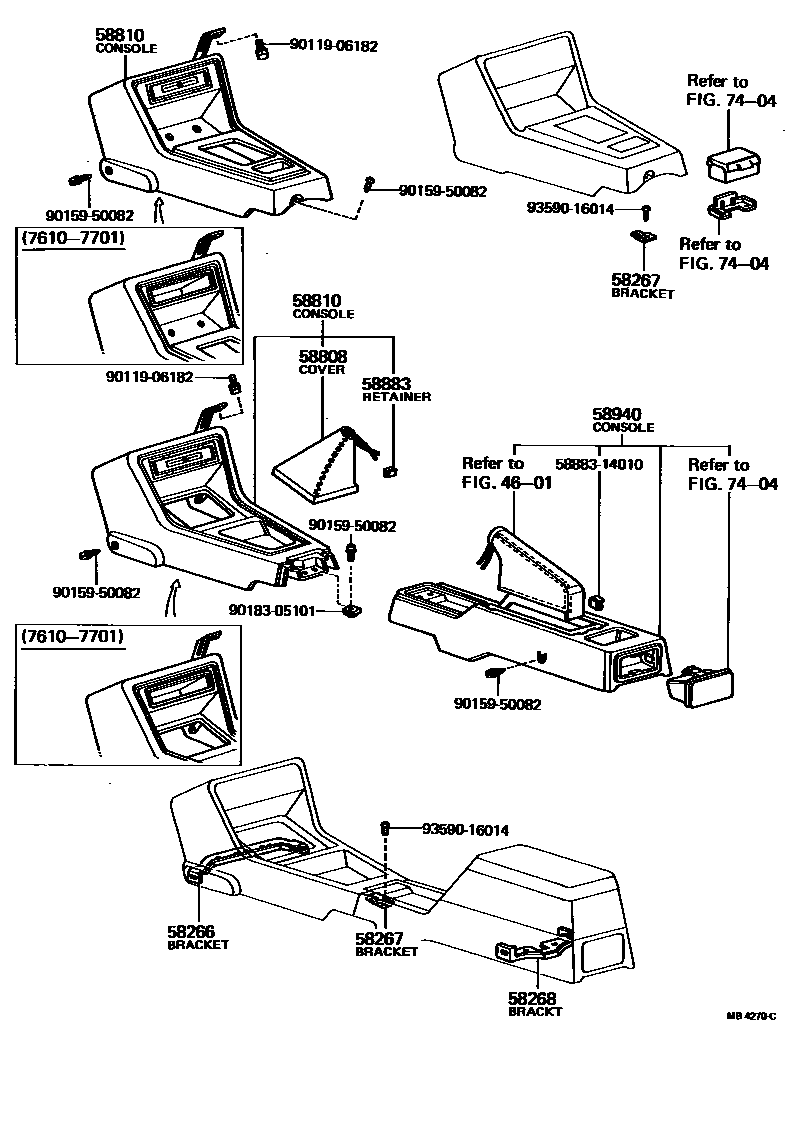

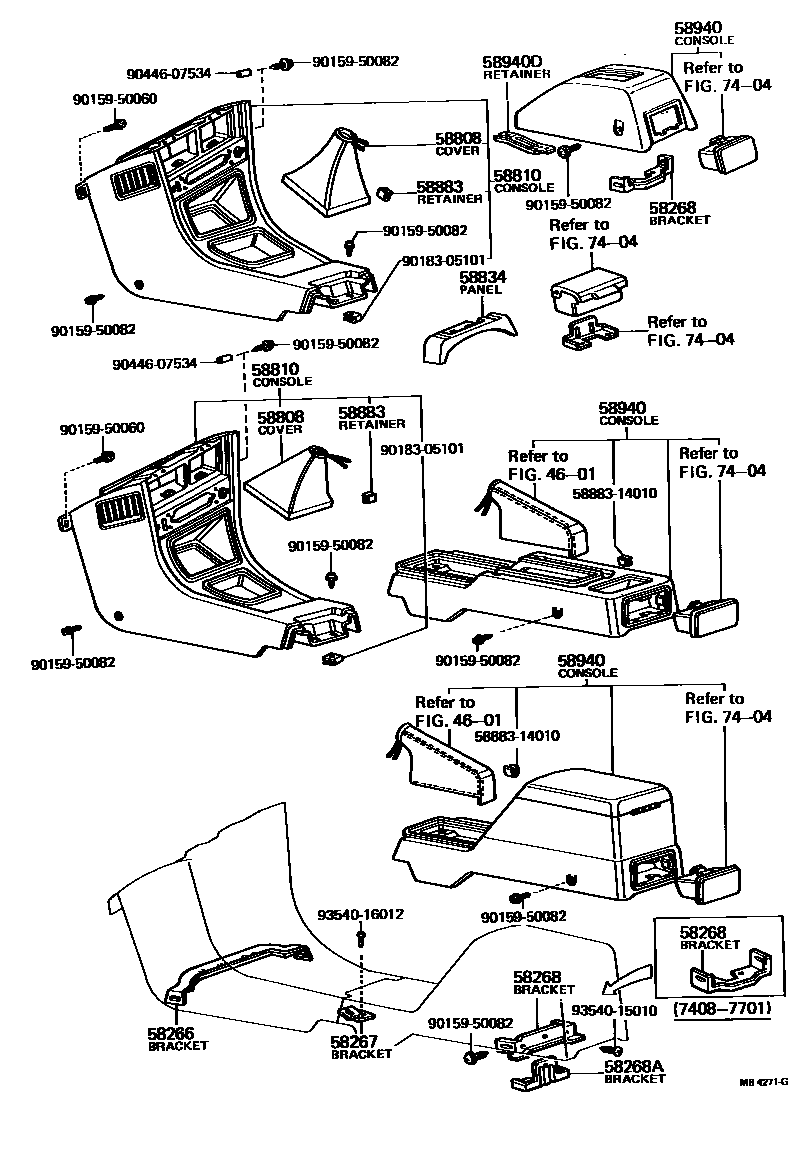

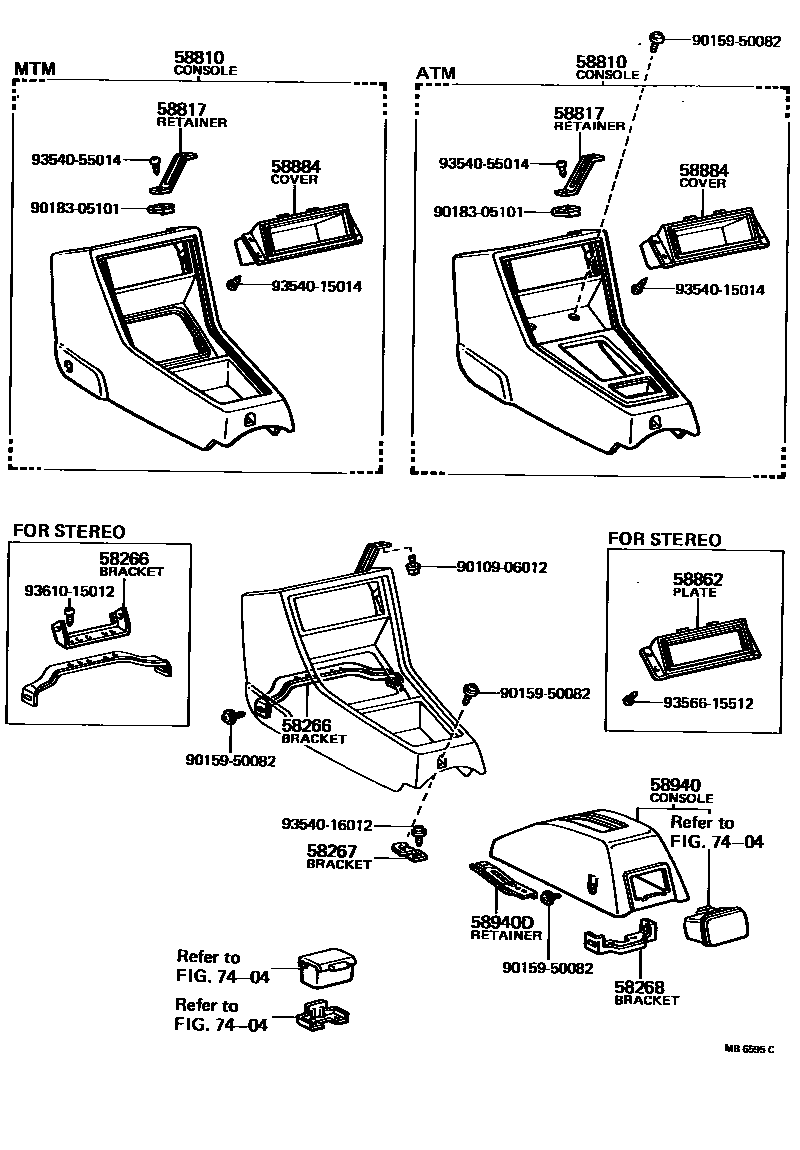

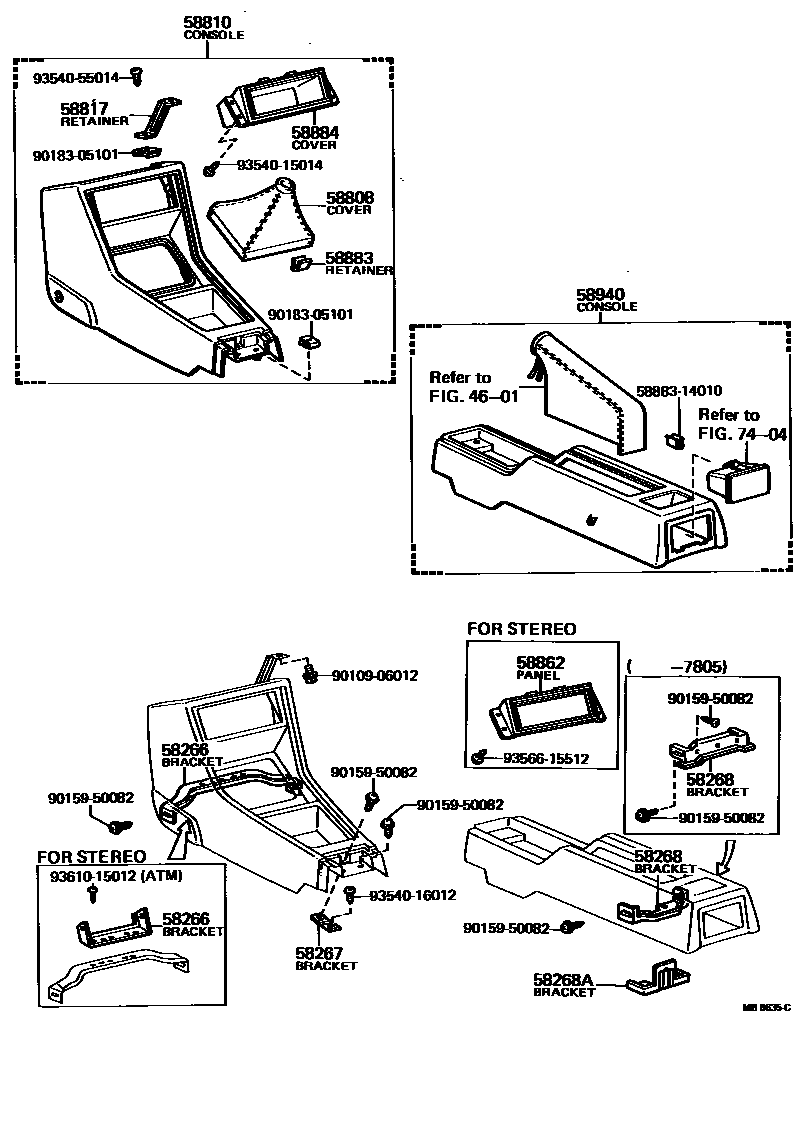

Toyota COROLLA EPC diagram 5806, 中央扶手箱和支架, with 5 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58266 | Armrest box front bracket | 58851-12040 · 58865-12010 · 58865-12020 |
| 58267 | Armrest box center bracket | 58852-12040 |
| 58268 | Armrest box rear bracket | 58853-12020 · 58853-12030 |
| 58268A | Armrest box No. 2 bracket | 58854-12010 |
| 58808 | Shift hole cover sub-assembly | 58808-12030 · 58808-12031 · 58808-12040 · 58808-12050 · 58880-12020 |
| 58817 | console panel fasteners | 58817-12030 |
| 58862 | Armrest box decorative panel | 55423-12030 |
| 58883 | Shift hole cover retainer | 58883-14010 · 58883-22010 |
| 58940D | Parking brake hole cover fixing | 58943-12010 |
