Toyota COROLLA 地板垫和地毯 — Figure 5804

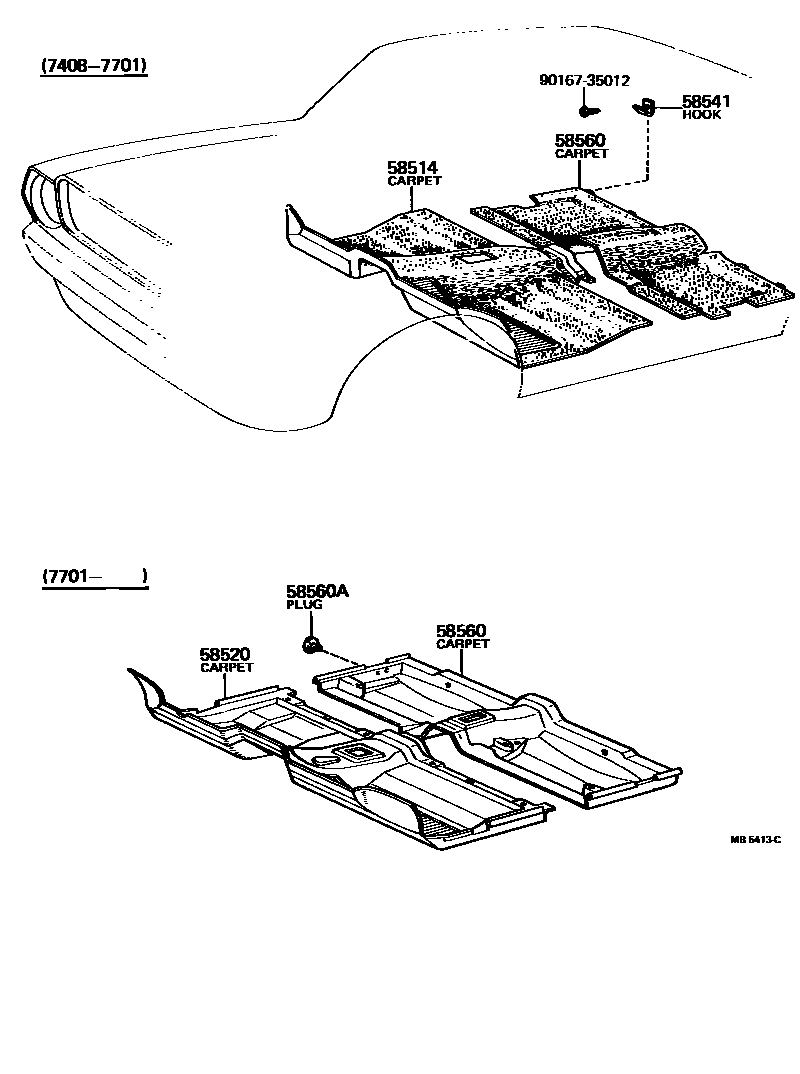

Toyota COROLLA EPC diagram 5804, 地板垫和地毯, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58514 | front center carpet | 58510-12230 · 58510-12240 · 58510-12250 · 58510-12260 · 58510-12270 · 58510-12280 · 58510-12290 |
| 58541 | No. 1 outer hook (for felt pads) | 58521-20040 |
| 58560 | Rear carpet assembly | 58540-12190 · 58540-12220 · 58540-13030 |
