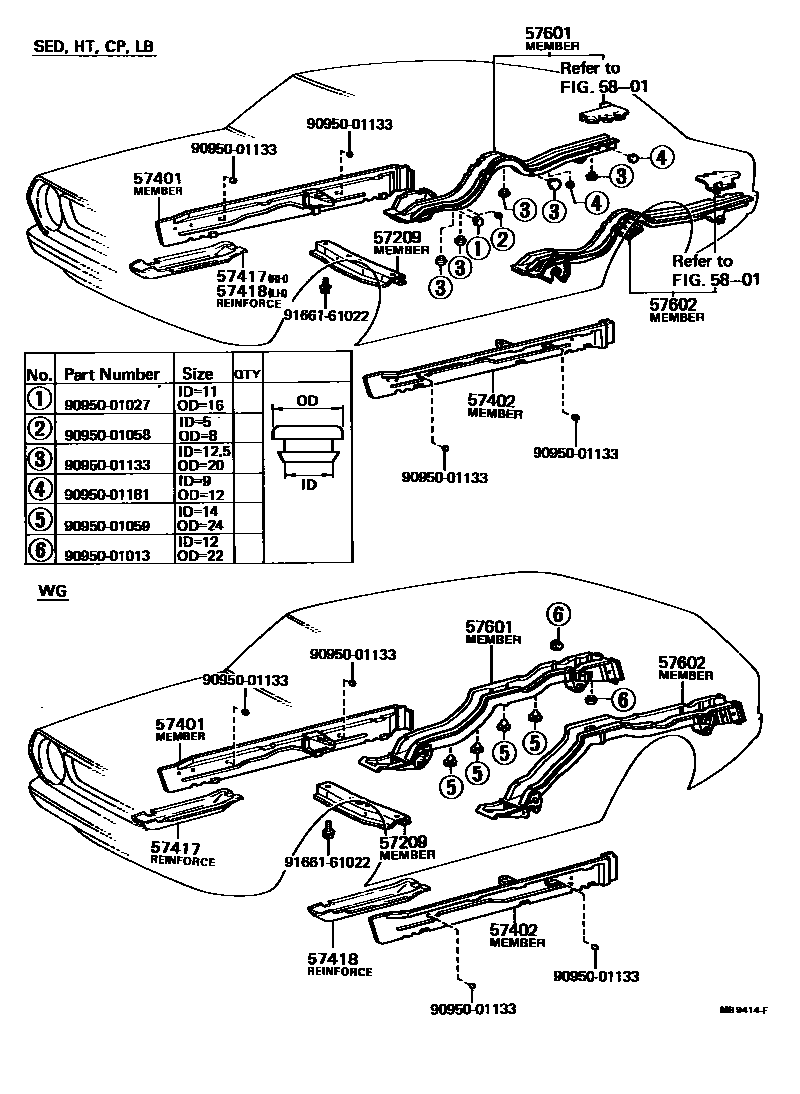

Toyota COROLLA Floor stringers — Figure 5305
Toyota COROLLA EPC diagram 5305, Floor stringers, with 1 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57209 | Engine rear support beam sub-assembly | 57209-12060 · 57255-12060 · 57255-12070 · 57255-12080 |
| 57401 | Main floor right longitudinal beam sub-assembly | 57401-12030 · 57401-12070 · 57401-12080 |
| 57402 | Main floor left longitudinal beam sub-assembly | 57402-12030 · 57402-12070 · 57402-12080 |
| 57601 | Rear floor right longitudinal beam sub-assembly | 57601-12010 · 57601-12030 · 57601-12050 · 57601-13040 · 57601-13041 · 57601-13042 |
| 57602 | Rear floor left longitudinal beam sub-assembly | 57602-12010 · 57602-12030 · 57602-12050 · 57602-13030 · 57602-13031 |
