Toyota COROLLA 前翼子板挡泥板和前围板 — Figure 5304

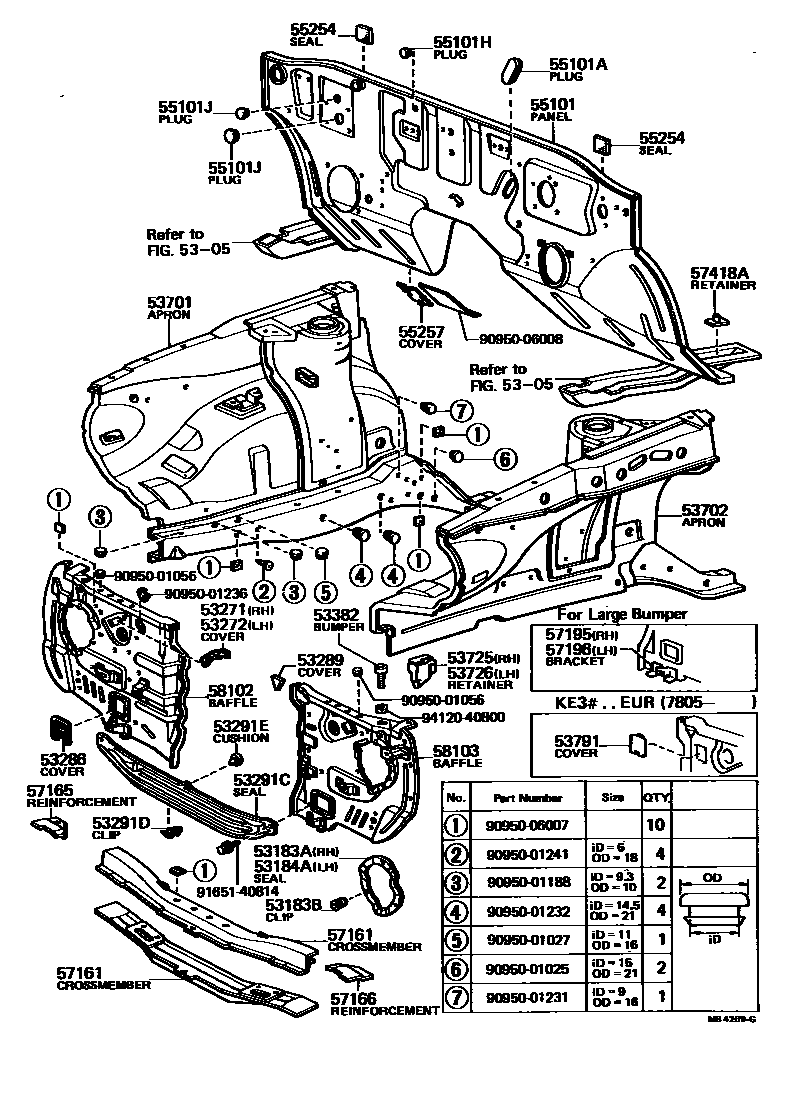

Toyota COROLLA EPC diagram 5304, 前翼子板挡泥板和前围板, with 1 images and 32 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53183A | Right headlight cover seal | 53183-12020 · 53183-12030 |
| 53183B | Clip (for headlight cover seal) | 90467-08002 · 90467-08008 |
| 53184A | Left headlight cover seal | 53183-12030 · 53184-12020 |
| 53271 | Right speaker hole cover | 53271-12010 |
| 53272 | Left speaker hole cover | 53272-12010 |
| 53286 | Front bumper arm hole cover | 53285-12010 · 53286-12010 |
| 53289 | Radiator side baffle cover | 53289-12020 |
| 53291C | Radiator bracket to frame seal | 53291-12020 |
| 53291D | Radiator bracket to frame clip | 53259-12010 |
| 53291E | Cushion pad (for radiator bracket to frame) | 90541-10009 |
| 53382 | Engine cover front buffer block | 53382-20011 |
| 53701 | Right front fender fender sub-assembly | 53701-12090 · 53701-12100 · 53701-12150 · 53701-12190 |
| 53702 | Left front fender fender sub-assembly | 53702-12070 · 53702-12080 · 53702-12120 · 53702-12160 |
| 53725 | Front bumper right side stay fixing | 53707-12040 · 53707-12050 |
| 53726 | Front bumper left side stay fixing | 53708-12040 · 53708-12050 |
| 53791 | Air conditioner air inlet cover | 53791-12010 |
| 55101 | Front apron sub-assembly | 55101-12140 · 55101-12141 · 55101-12142 · 55101-12143 · 55101-12150 · 55101-12151 · 55101-12152 · 55101-12153 · 55101-12170 · 55101-12171 · 55101-12172 · 55101-12180 · 55101-12181 · 55101-12182 · 55101-12183 |
| 55101A | No. 1 hole plug (for cowl) | 90950-01023 |
| 55101H | No. 2 hole plug (for cowl) | 90950-01013 |
| 55101J | No. 3 hole plug (for cowl panel) | 90950-01018 · 90950-01061 |
| 55254 | Clutch harness hole seal | 55255-12010 · 55255-12020 |
| 55257 | cowl opening cover | 55257-12010 |
| 57161 | front cross member | 57161-12040 · 57161-12901 · 57162-12902 |
| 57165 | Front cross member lower right reinforcement | 57167-12020 · 57167-12030 |
| 57166 | Front cross member lower left reinforcement | 57168-12020 · 57168-12030 |
| 57195 | Front energy absorber right bracket | 53263-12010 |
| 57196 | Front energy absorber left bracket | 53264-12010 |
| 57417 | Front floor lower right reinforcement | 57417-12010 · 57417-12020 |
| 57418 | Front floor lower left reinforcement | 57418-12010 · 57418-12020 |
| 57418A | Front floor lower left reinforcement fixing piece | 57321-12010 |
| 58102 | Radiator right side partition sub-assembly | 53202-12020 · 53202-12021 · 53202-12022 · 53202-12030 · 53202-12031 · 53202-12100 |
| 58103 | Radiator left side partition sub-assembly | 53203-12020 · 53203-12021 · 53203-12030 · 53203-12031 · 53203-12080 · 53203-12081 · 53203-12090 · 53203-12100 |
