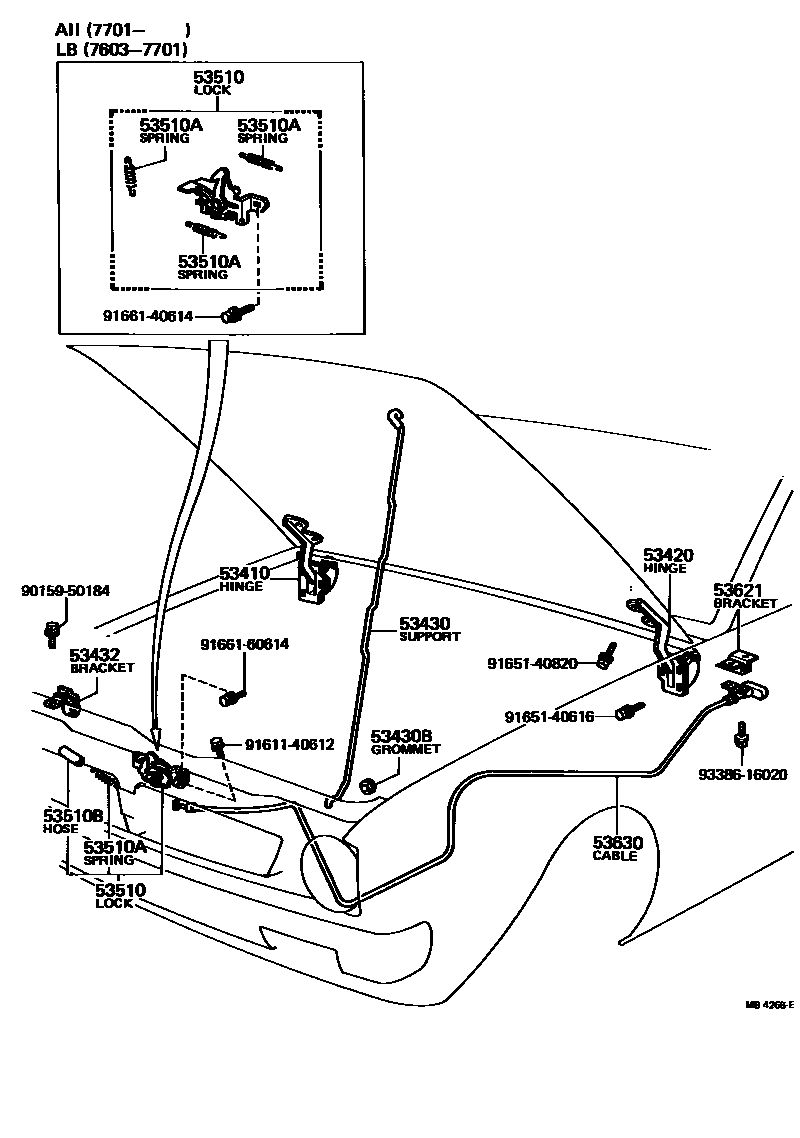

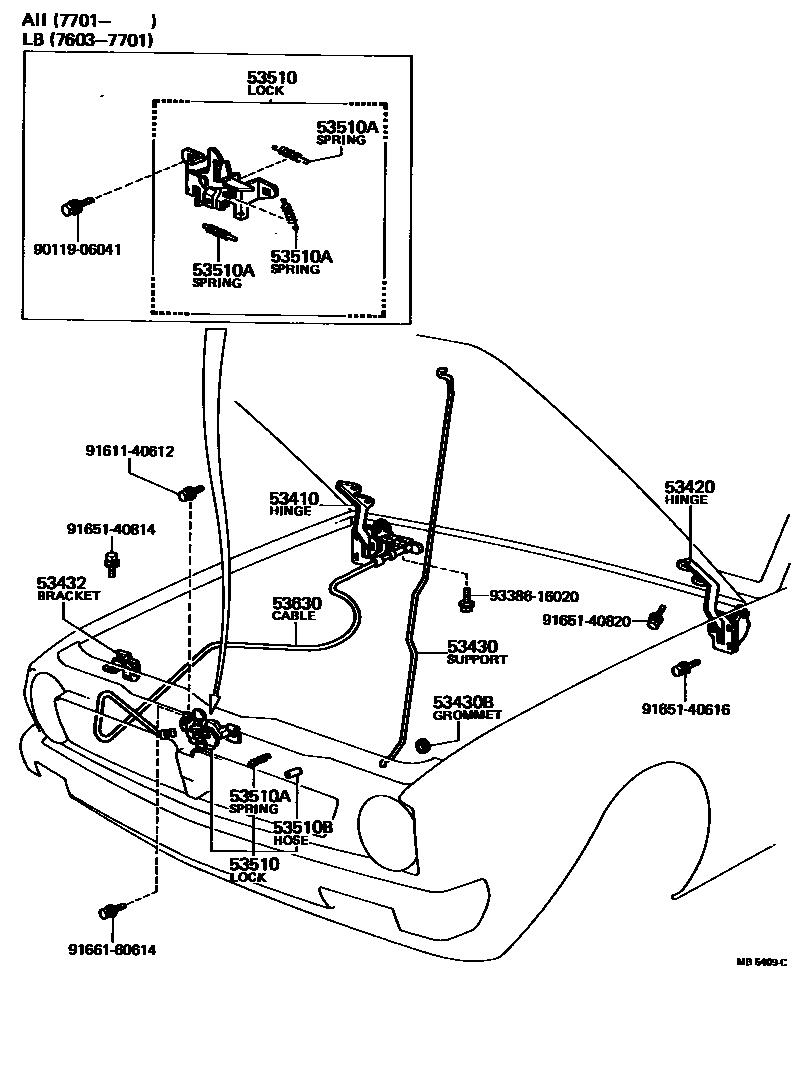

Toyota COROLLA 发动机盖锁和铰链 — Figure 5303
Toyota COROLLA EPC diagram 5303, 发动机盖锁和铰链, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53410 | Engine cover right hinge assembly | 53410-12020 · 53410-12030 |
| 53420 | Engine cover left hinge assembly | 53420-12020 · 53420-12030 |
| 53430 | Engine cover support rod assembly | 53451-12010 · 53451-12011 |
| 53430B | Gasket (for engine cover support rod) | 90480-15002 · 90480-15296 |
| 53432 | Engine cover support rod clip bracket | 53455-12010 · 53455-12011 |
| 53510 | Engine cover lock assembly | 53510-12010 · 53510-12011 · 53510-12012 · 53510-12020 · 53510-12030 · 53510-12050 · 53510-12060 · 53510-12061 · 53510-12062 · 53510-12070 · 53510-12081 · 53510-12082 · 53510-12090 · 53510-12100 · 53510-12101 · 53510-12110 · 53510-12111 · 53510-12120 · 53510-12121 · 53510-12130 · 53510-12131 · 53510-12140 · 53510-12150 |
| 53510A | Tension spring (for hood lock) | 90506-09007 · 90506-09008 · 90506-10196 · 90506-10486 · 90506-10487 · 90506-20009 · 90506-23004 |
| 53510B | Hose (for hood lock) | 90446-12209 |
| 53621 | Hood lock control cable bracket | 55363-12060 |
| 53630 | Engine hood lock control cable assembly | 53630-12090 · 53630-12091 · 53630-12092 · 53630-12100 |
