Toyota COROLLA Spare tire rack — Figure 5104

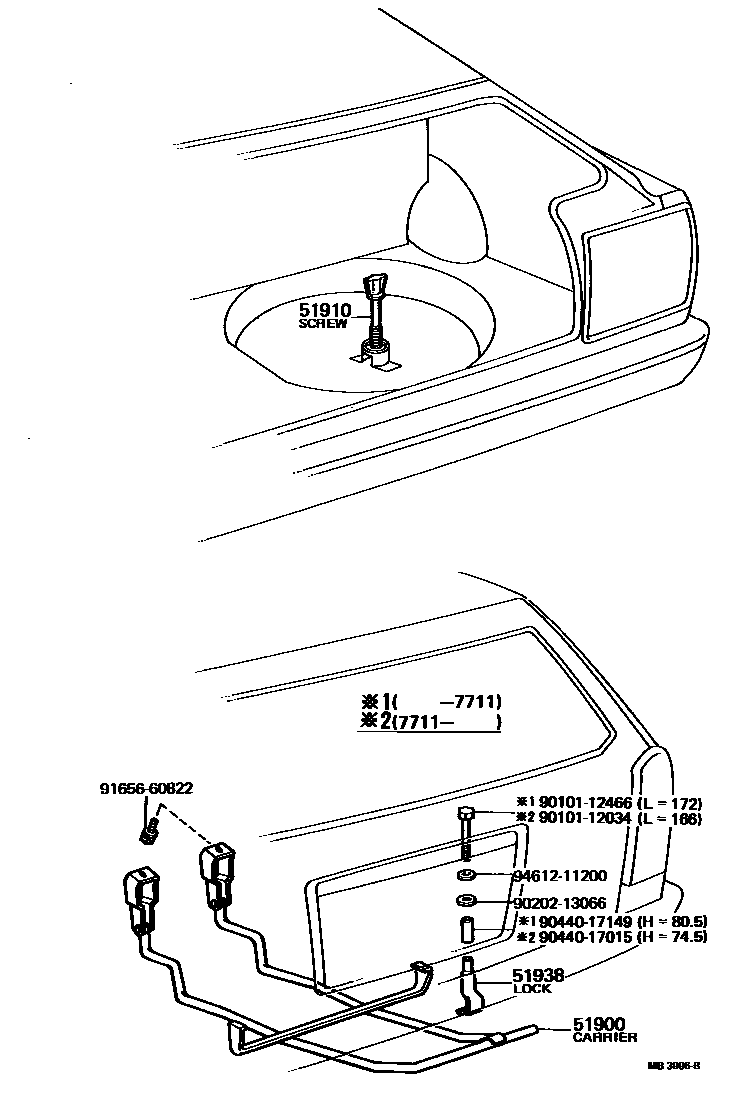

Toyota COROLLA EPC diagram 5104, Spare tire rack, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51900 | Spare tire rack assembly | 51900-13010 · 51900-13011 · 51900-13020 · 51900-13021 |
| 51910 | Spare tire clamp screw assembly | 51910-12020 · 51910-12030 |
| 51938 | Spare tire rack lock | 51938-13010 |
