Toyota COROLLA 悬架横梁和发动机底罩 — Figure 5102

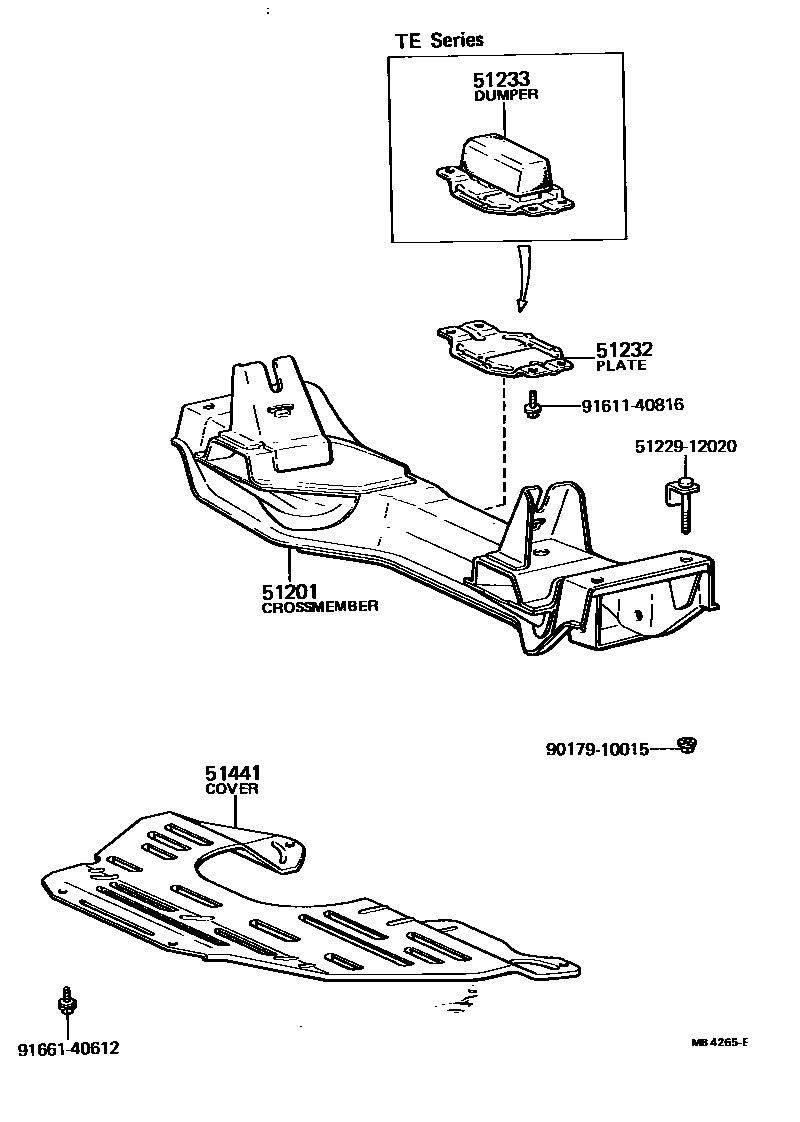

Toyota COROLLA EPC diagram 5102, 悬架横梁和发动机底罩, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51201 | Front suspension cross member sub-assembly | 51201-12050 · 51201-12060 |
| 51232 | front suspension cross member plate | 51228-12020 · 51228-12030 |
| 51233 | Front suspension cross member shock absorber | 51206-12010 |
| 51441 | No. 1 engine bottom cover | 51441-12040 · 51441-12050 · 51441-12060 · 51441-12061 |
